Height
(A – See Figure 1) .........6
″
Length
(B – See Figure 1) .........17
″
Width
(C – See Figure 1).........11
″
Duty Cycle .....................Continuous
Tube Capacity ...............Up To 3
″
Solder Gun
Cable Length .................136
″
Power Cord Length .......98
″
Weight ...........................32 Lbs.

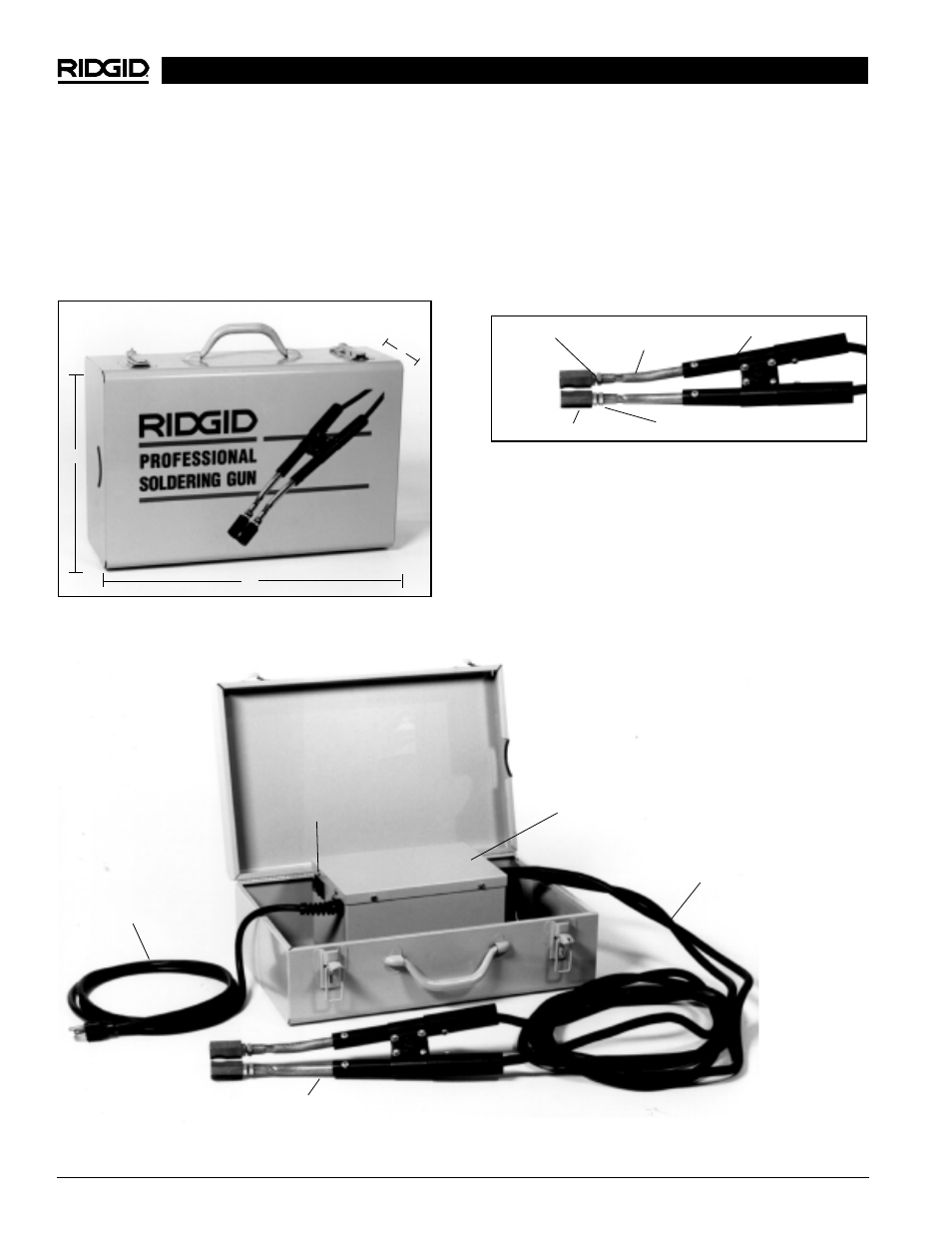

Figure 1 – Soldering Gun Case Dimensions
Model RT-175 Electric Soldering Gun
Ridge Tool Company 4
B
A
C
Figure 2a – RT-175 Soldering Gun
Figure 2b – RT-175 Handles and Carbon Tips
Power Cord
Locknut
Carbon Tips Threaded Stud
Stainless Steel
Sleeves
Solder Gun
Cable
ON/OFF Switch
Handles
Handles
Transformer
