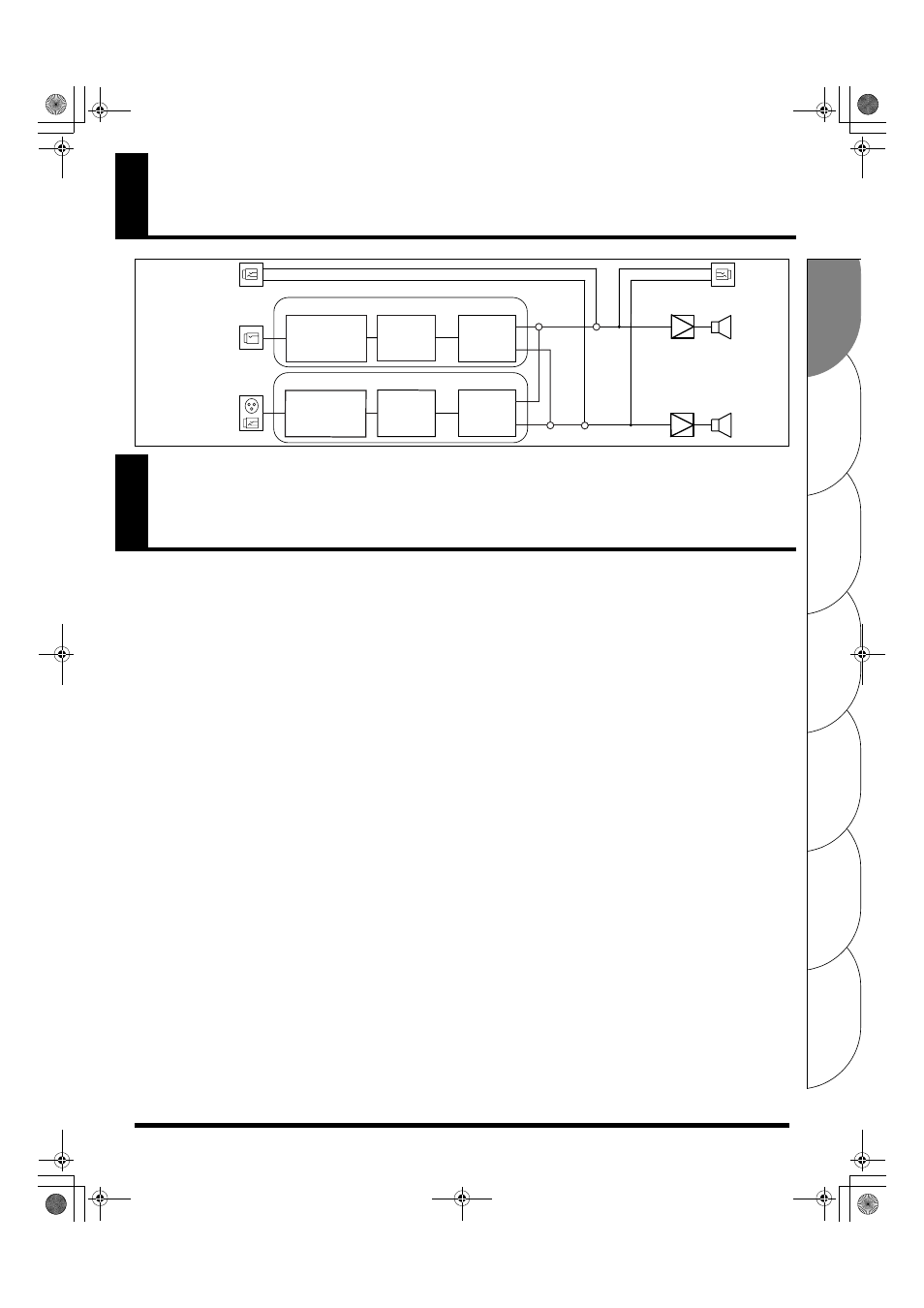

Block Diagram
SPEAKER
GUITAR/INSTRUMENT
INPUT
MIC/LINE INPUT
STEREO
PHONES
POWER AMP
GUITAR/INSTRUMENT CHANNEL
EFFECT
STEREO AUX IN
L
R
EFX
REVERB/DELAY
MIC/LINE CHANNEL
EFFECT
REVERB/DELAY
BASS TREBLE
EQ
SPEAKER +
+ +
+
EQ
BASS
MIDDLE
TREBLE
COSM AMP
PRE AMP
< 8 TYPE >
< MIC/LINE >
Main Specifications
CUBE STREET
Rated Power Output
STEREO 5 W (2.5 W + 2.5 W)
Nominal Input Level (1 kHz)
MIC/LINE Channel: -50 / -10 dBu
GUITAR/INSTRUMENT Channel: -10 dBu
STEREO AUX IN: -10 dBu
* 0 dBu = 0.775 Vrms
Speakers
16 cm (6.5 inches) x 2
Controls
POWER Switch
(MIC/LINE Channel)
SELECT Switch (MIC/LINE)
VOLUME Knob
EQUALIZER Knobs (BASS, TREBLE)
DELAY/REVERB Knob
(GUITAR/INSTRUMENT Channel)
TUNER Switch
TYPE Switch
GAIN Knob
VOLUME Knob
EQUALIZER Knobs (BASS, MIDDLE, TREBLE)
EFX Knob
DELAY/REVERB Knob
Indicators
TUNER
POWER
Connectors
(MIC/LINE Channel)
Input Jacks (XLR type, 1/4” phone type)
Foot Switch Jack (1/4” TRS phone type, TIR: mute,
RING: DELAY/REVERB)
(GUITAR/INSTRUMENT Channel)
Input Jack (1/4” phone type)
Foot Switch Jack (1/4” TRS phone type, TIR: EFX,
RING: DELAY/REVERB)
AUX IN Jack (Stereo miniature phone type)
PHONES Jack (Stereo 1/4” phone type)
AC Adaptor Jack
Power Supply
DC 9 V: AC Adaptor or
Dry Battery (LR6 (AA) type) (optional) x 6
Current Draw
235 mA
Dimensions
415 (W) x 295 (D) x 250 (H) mm
16-3/8 (W) x 11-5/8 (D) x 9-7/8 (H) inches
Weight
5.2 kg
11 lbs 8 oz
(including Battery)
Accessories
AC Cord
AC Adaptor
Owner’s Manual
Options
Carrying Case
Foot Switch: FS-5U (BOSS), FS-6(BOSS)
Connection Cable: PCS-31
962a
* In the interest of product improvement, the specifications and/
or appearance of this unit are subject to change without prior
notice.
