(3/4)

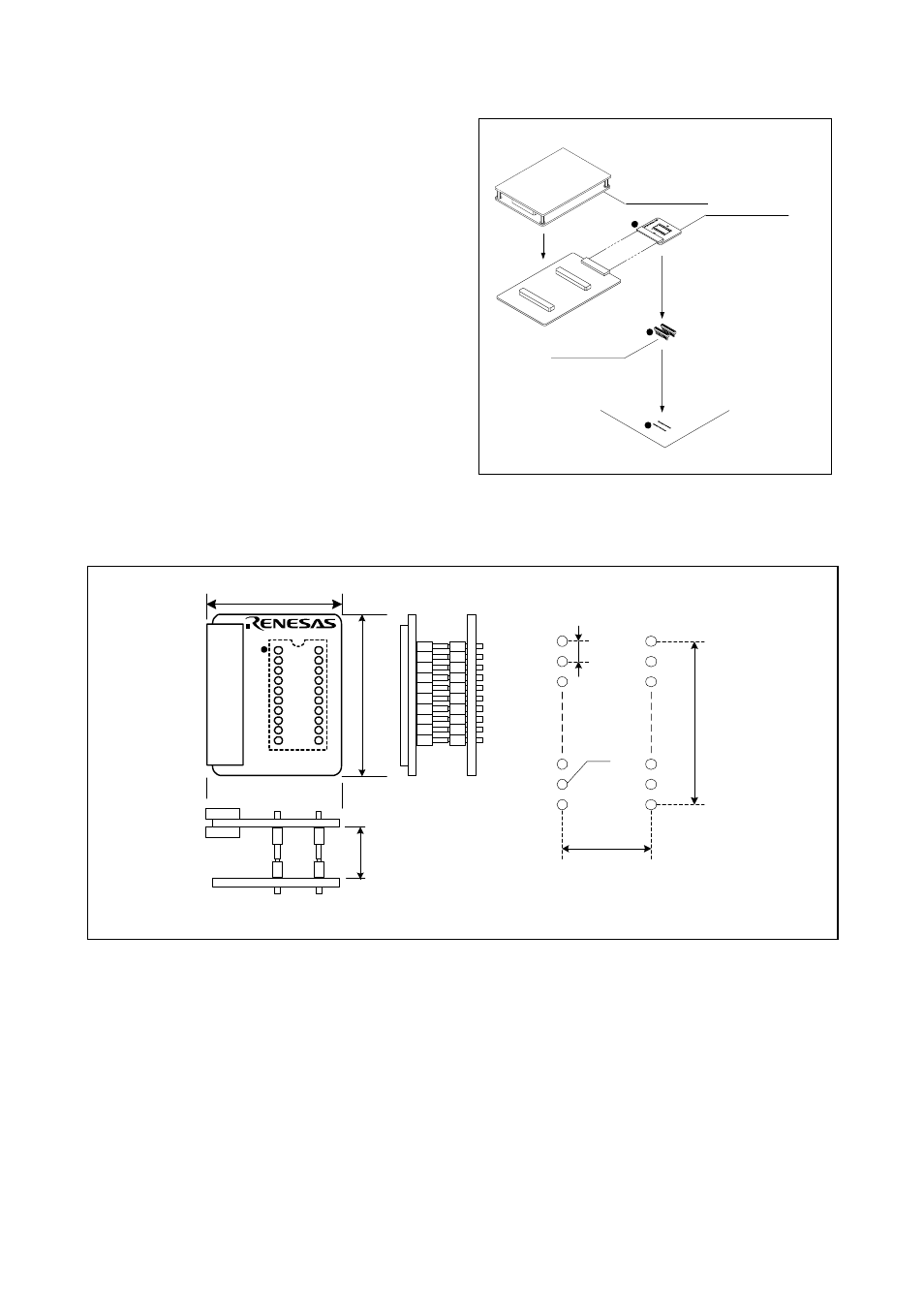

5. Connection Procedure (See Figure 3)
The procedure for connecting the R0E521174CDB00 is shown
below.
(1) Mount the socket for 20-pin SDIP (PM-6-10P x2) on the
user system.
(2) Attach the R0E521000EPB00 or R0E521000CPE00 to the
R0E521174CDB00.
(3) Attach the R0E521174CDB00 to the socket for 20-pin
SDIP (PM-6-10P x2).
R0E521000EPB00
or
R0E521000CPE00
(1)
(2)
(3)
R0E521174CDB00
PM-6-10P (x2)
20-pin 1.778-mm-pitch
(PRDP0020BA-A) foot pattern
Figure 3 Connection procedure of the R0E521174CDB00
6. External Dimensions and a Sample Foot Pattern (See Figure 4)
Figure 4 External dimensions and a sample foot pattern of the R0E521174CDB00
25.4
32
.0
IC
1
CN
1
50
1
R0E521174CDB00 REV . A
MADE IN JAPAN
7.62
16
.002
Unit: mm
1.
7
7
8
0.7 ш
10
.0
