1. Outline
The R0E521174CDB00 is a converter board for connecting the
emulation probe R0E521000EPB00 and the compact emulator
R0E521000CPE00 for R8C/Tiny Series to a foot pattern for
20-pin 1.778-mm-pitch SDIP (PRDP0020BA-A, formerly
20P4B) of R8C/18, 19, 1A and 1B Groups.
2. Package Components (See Figure 1)
Table 1 Package Components
Item Quantity
R0E521174CDB00
(Base board R0E521000CIF00 and 150mm
FFC cable included)
1 pc.
PM-6-10P for 20-pin SDIP
(made by Mac Eight Co., Ltd.)
2 pcs.
R0E521174CDB00 User's Manual
(This manual)
1 pc.
3. Specifications
Table 2 Specifications
Applicable package
PRDP0020BA-A, formerly 20P4B
(20-pin 1.778-mm-pitch SDIP)
Between R0E521174CDB00 and
PM-6-10P:
100 times guaranteed Insertion/removal
iterations of
connector
Between R0E521000EPB00 or
R0E521000CPE00 and
R0E521174CDB00:
50 times guaranteed
4. Usage (See Figure 2)
The R0E521174CDB00 can be used for debugging and board
mounted evaluation in common by mounting the socket for
20-pin SDIP (PM-6-10P x2) on the user system.
(1) For
debugging
Mount the socket for 20-pin SDIP (PM-6-10P x2) on the
foot pattern of the user system.
After connecting the R0E521000EPB00 or
R0E521000CPE00 and R0E521174CDB00, connect the
R0E521174CDB00 to the socket for 20-pin SDIP
(PM-6-10P x2).
(2) For
on-board evaluation
Mount an R8C/18, 19, 1A and 1B Groups MCU on the
socket for 20-pin SDIP (PM-6-10P x2) on the user system
Before using the R0E521174CDB00, be sure to read "7.
Precautions" on page 4 and the R0E521000EPB00 or
R0E521000CPE00 User’s Manual.
R0E521174CDB00 PM- 6 -10 P (x2)

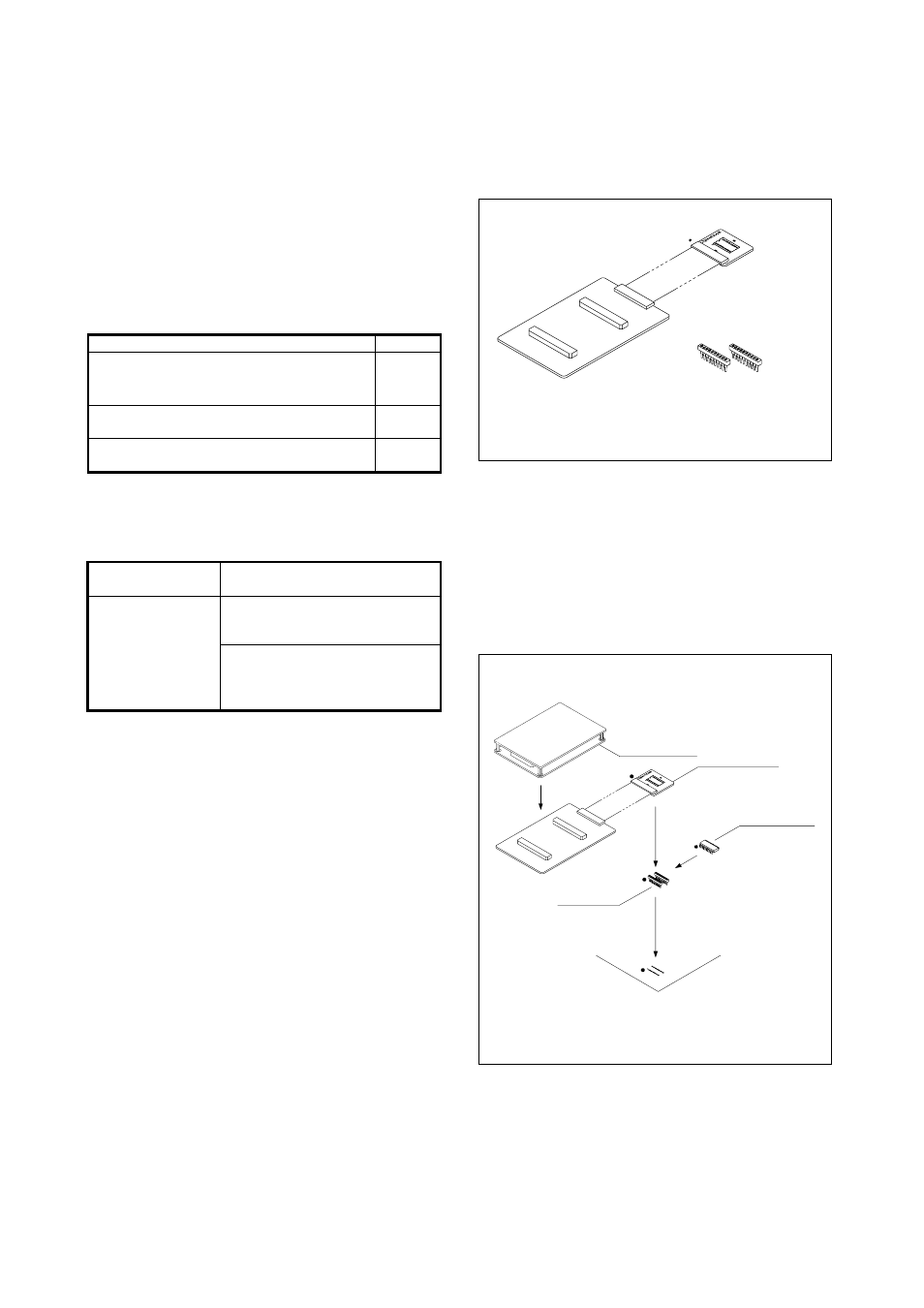

Figure 1 Package components of the R0E521174CDB00
●
: No. 1 pin
* : These products are inculuded with the R0E521174CDB00 package.
PM-6-10P (x2)*
MCU with on-chip
flash memory etc.
(1) Debugging
(2) On-board evaluation
R0E521000EPB00
or
R0E521000CPE00
20-pin 1.778-mm-pitch
(PRDP0020BA-A) foot pattern
R0E521174CDB00
Figure 2 Usage of the R0E521174CDB00
(2/4)
