3 24

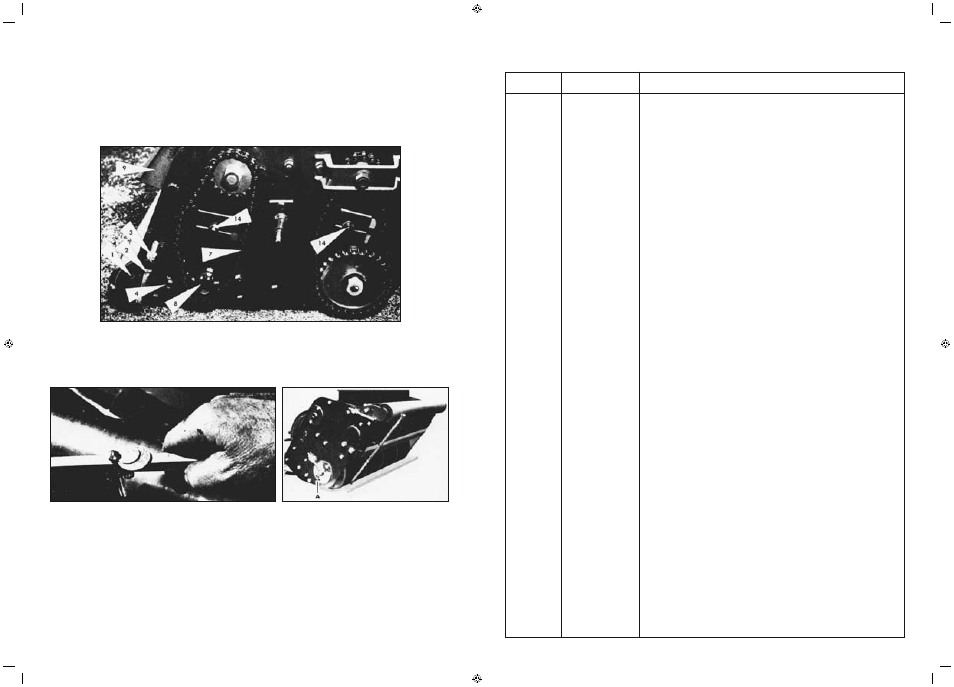

HEIGHT ADJUSTMENT – To cut lower, slacken quadrant clamp bolt nuts (1), also the lower
adjusting screw nut (2). Then tighten top adjusting screw nut (3) until desired height of cut is
obtained. To cut higher, reverse procedure. Re-tighten all nuts after desired setting is obtained. The
indicator marks on the quadrant are an indication of the cutting height, but to set the height of cut
accurately the setting gauge must be used. Refer setting gauge instructions.
SETTING GAUGE – This illustrates the method of setting the gauge to the height of cut, where in
this instance height of cut is a twenty cent piece and a five cent coin. The distance between the
setting gauge bar and the underside of the adjustable screw head represents the height of cut. Lock
the screw in the desired position with the wing nut. To use the setting gauge, rest it against the
underside of the front and rear rollers, as illustrated, and by adjusting the front roller, the desired
height of cut will be obtained when the underside of the screw head lightly touches the top cutting
edge of the bottom blade across its full width. When using the setting gauge, take care not to force
the head of the adjusting screw onto the bottom blade, as this could distort the blade and affect
the setting.
30” QUEEN TM - SPARE PARTS LIST
ITEM PART No. DESCRIPTION
1 A80084 Electric motor
2 305584 Plug mounting bracket
3 1661150 Plug- male
4 1661775 Cable clamp
5 1551265 Plastic conduit- flexible
6 A20207 Electrical wire- red
7 A20206 Electrical wire- black
8 306368 Cable gland
9 1661235 Plug- female
10 303124 Conduit clip
11 A20211 Switch
12 306341 Motor cover assembly
13 305373 Conduit
14 A20209 Earth wire
15 A20208 Earth wire
16 301649 Decal- warning
17 509819 Decal- Scott Bonnar
18 318228 Setscrew- 1/4” x 3/4” unf.HT.
19 2062724 Screw- 3/16” x 1” cheese head M/T.
20 A02050 Nut- 3/16” square pressed
21 2061886 Screw- 3/16” x 1/2” cheese head M/T.
22 A02216 Washer- 3/16” x 1/2” x 20g.flat
23 A02193 Nyloc nut- 3/16” unc.thin
24 A02163 Screw- 3/16” x 1/2” mush.head M/T.
25 A02023 Nut- 5/32” unc.hex.
26 A02039 Washer- 5/32” shakeproof
27 2072711 Screw- 5/32” x 1” bsw.csk.
28 A02044 Washer- 1/4” shakeproof
29 232116 Nut- 1/4” unf.hex.
30 A02017 Screw- 1/4” x 1/2” unc.Slotted Mush.head.
31 A02209 Washer- 1/4” x 5/8” x 18g.flat
32 A02235 Nyloc nut- 1/4” unc.
33 655533 Reset cover
34 A20044 Reset switch
35 A20210 Trip wire
36 A20213 Electrical wire- red reset switch
