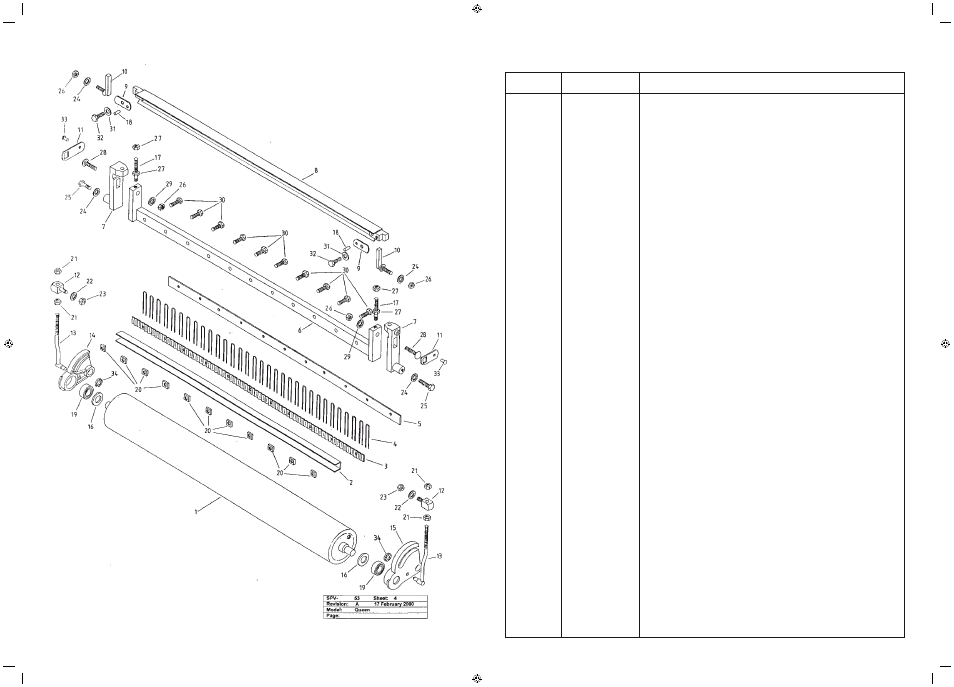

30” QUEEN TM - SPARE PARTS LIST
ITEM PART No. DESCRIPTION
1 301516 Front roller assembly
2 304506 Clamping channel
3 304514 Clamping tyne guide
4 166246 Rake tynes- 32 per set
5 304522 Clamping rubber
6 304485 Rake bar assembly
7 303423 Rake bar mounting bracket
8 303440 Front roller scrape bar assembly
9 303490 Scraper clamp plate
10 303503 Scraper bolt assembly
11 303431 Mounting bracket support
12 301583 Adjusting rod purchase block
13 301559 Front roller adjusting rod assembly
14 301049 Front roller bracket- RH
15 301030 Front roller bracket- LH
16 301057 Bearing seal washer
17 303407 Height adjusting stud
18 2211047 Roll pin- 3/16” x 1/2”
19 1122327 Front roller bearing
20 2491162 Nut- 1/4” sq.pressed w/series AF.445
21 A02060 Nut- 3/8” unf.hex.
22 A02031 Washer- 5/16” shakeproof
23 2321182 Nut- 5/16” unf.hex
24 A02034 Washer- 3/8” shakeproof
25 A04144K Setscrew- 3/8” x 1” unf.HT. Grade 8
26 A02007 Nut- 3/8” unc.hex.
27 232116 Nut- 1/4” unf.hex
28 A07769 Bolt- 3/8” x 1-1/2” unc.cuphead
29 A02034 Washer- 3/8” shakeproof
30 A02169 Setscrew- 1/4” x 1” unc.
31 A02030 Washer- 5/16” x 5/8” x 18g.flat
32 3182102 Setscrew- 5/16” x 1” unf.HT.
33 1841057 Pin- 1/2” x No:10
34 2501108 Starlock- 7301/0008 1/4” Advel
