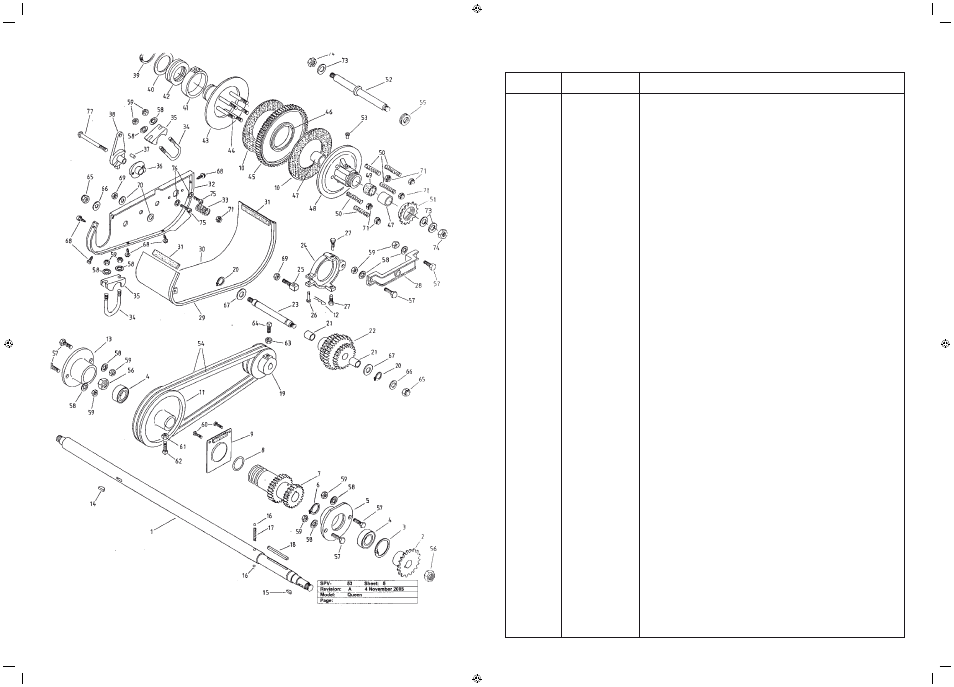

30” QUEEN TM - SPARE PARTS LIST
ITEM PART No. DESCRIPTION
1 306122 Blade cutter assembly- 10 blades
1 10168 Blade cutter assembly- 16 blades
2 393000 Bottom blade- low cut
3 301735 Sole plate
4 301647 Cutter bearing housing assembly- LH
5 301698 Cutter bearing housing assembly- RH
6 2986519 Chain- countershaft to cutter
7 165340 Cutter sprocket
8 301680 Hanger cap bolt spacer
9 163432 Bearing cover washer
10 A07744 Cutter bearing
11 163440 Bearing housing pivot bolt
12 301727 Cutter adj.screw purchase block
13 301719 Cutter adjustment screw
14 161461 Chain adjuster bolt assembly
15 161453 Chain adjuster
16 1213325 Bolt- 7/16” x 1-1/4” unf.HT.
17 2641238 Nyloc nut- 7/16” unf.
18 A04069 Bolt- 3/8” x 1-1/4” unc.cuphead
19 A02007 Nut- 3/8” unc.Hex
20 A02063 Washer- 1/2” x 1” x 16g.flat
21 A02046 Nut- 1/2” unf.hex.
22 2321182 Nut- 5/16” unf.hex.
23 A02060 Nut- 3/8” unf.hex.
24 A02034 Washer- 3/8” shakeproof
25 2671289 Locknut- 3/4” unf.left hand
26 1185887 Bolt- 5/16” x 3” unc.
27 2071924 Screw- 5/16” x 1/2” csk.M/T.
28 A02060 Nut- 3/8” unf.hex.
29 2211047 Roll pin- 3/16” x 1/2”
30 A02035 Washer- 7/16” x 7/8” x 16g.flat
31 A04033 Washer- 3/8” x 3/4” x16g.flat
32 A04112 Washer- 3/8” spring
