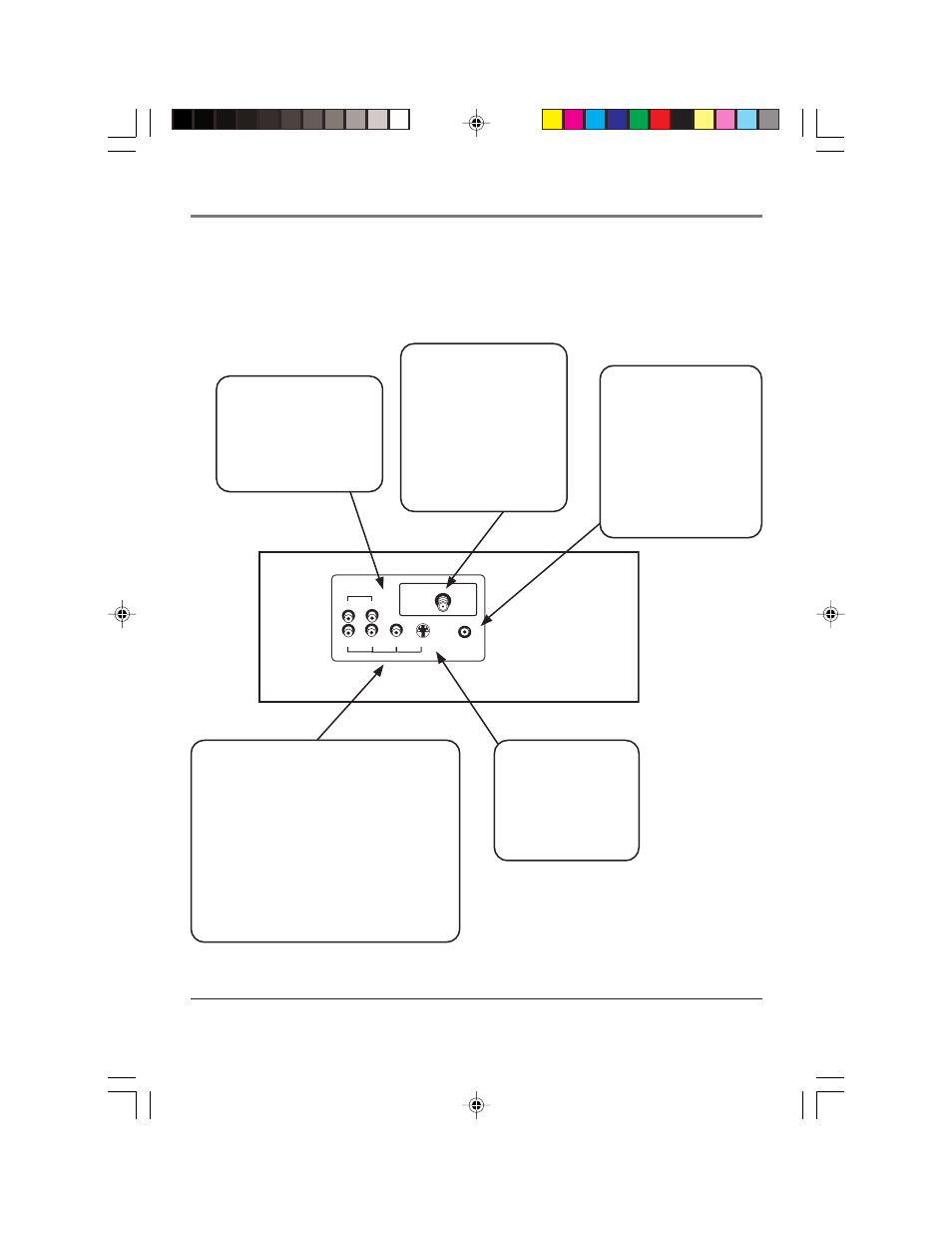

Jacks on the Back of Your TV
If you are connecting many components, please consult the manual that came with each component for connection
instructions. The picture of your TV’s back panel describes the jacks on the back of your TV and what types of
components that you can connect to these jacks.
When connecting, make sure you connect Output jacks to Input jacks, Video to Video, Right Audio to Right Audio, etc.
R L/ MONO VIDEO
ANTENNA
S-VIDEO
TV (back panel)
OUT
R L
IN
G-LINK
Audio and Video Input Jacks:
AUDIO R and L/MONO and VIDEO
Connect any of the following components:
• DVD Player • Satellite Receiver
• Laserdisc Player • VCR
• Internet Access Device
To watch the content from the component that’s
connected to the VIDEO Input Jack, press the
WHO • INPUT button on the remote (the TV
switches to the correct channel).
G-LINK Jack
Connect the end of the
G-LINK cable (provided) to
this jack. The G-LINK cable
enables the TV’s Guide Plus+
system to interact with the
cable box and/or the VCR. A
picture of the G-LINK cable is
on page 7.
S-VIDEO Jack
Connecting an
S-Video cable is optional.
S-Video provides better
picture quality than a
regular video cable.
ANTENNA Jack
Connect the coaxial cable from
the VCR’s Output jack to this
jack. If you’re not connecting a
VCR, connect a coaxial cable
that carries the signal from the
antenna, cable, or cable box to
the ANTENNA jack. Audio Output Jacks:
R and L OUT
Connect audio cables to
these jacks and to an
amplifier or audio receiver
for improved sound quality.
