8 Chapter 1
Connections & Setup
work properly.
TV + VCR

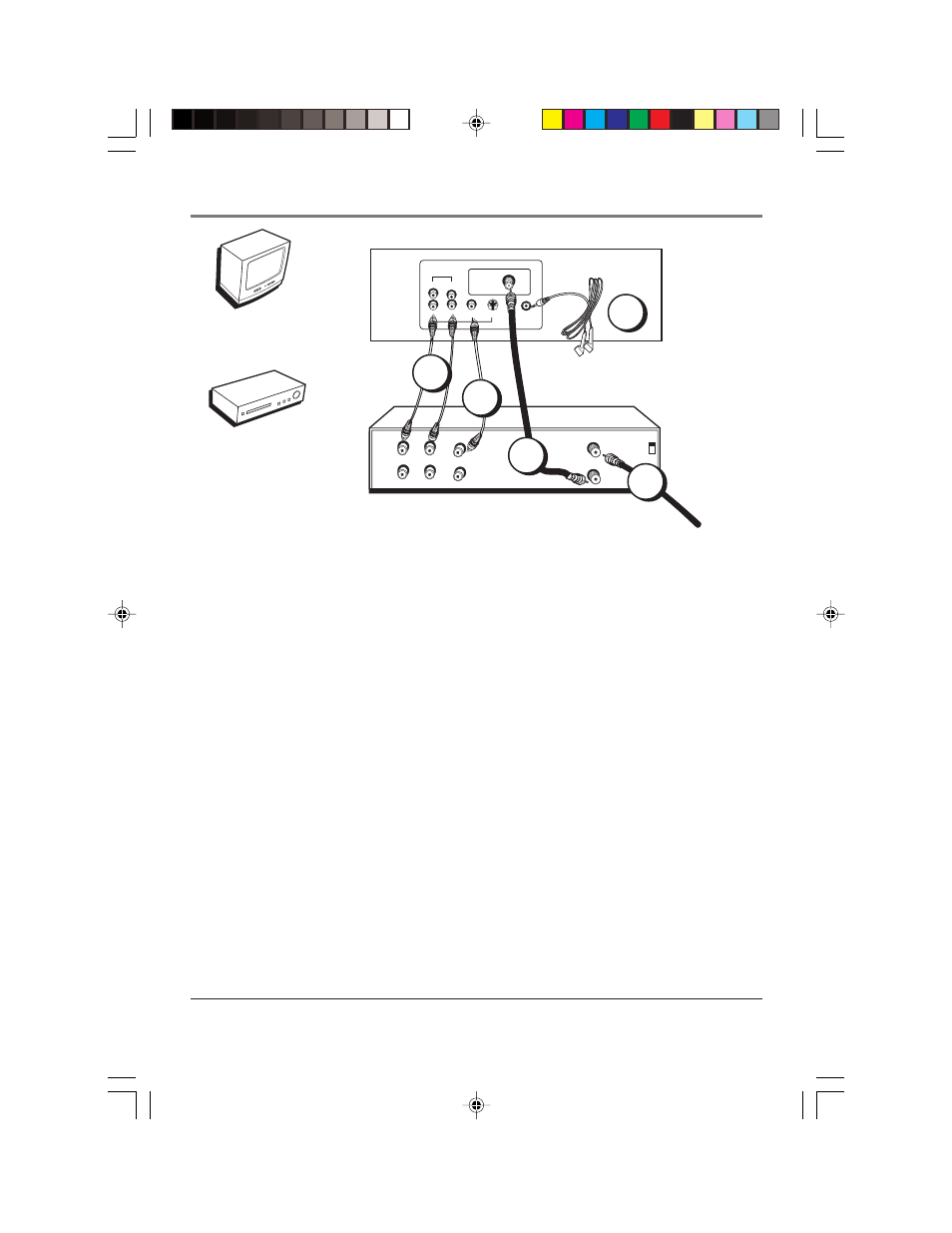

1. Connect your TV to your VCR
A. Connect a coaxial cable to the ANTENNA jack on your TV and to the Output
Jack on your VCR (sometimes labeled OUT TO TV).
B. Connect the audio/video cables. Connect audio cables (white and red) to the
AUDIO IN jacks on the back of the TV (R and L/MONO) and to the Audio
Output Jacks on the VCR (sometimes labeled OUT R L).
C. Connect the video cable (yellow) to the VIDEO IN jack on the back of the TV
and to the Video Output Jack on the VCR.
2. Connect cable or antenna to your VCR
Connect the coaxial cable from your cable outlet, cable box, or antenna to the Input
Jack on your VCR (sometimes labeled IN FROM ANTENNA or IN FROM ANT).
3. Connect the G-LINK cable to the TV
Connect the G-LINK cable to the G-LINK jack on the TV. Next step, place one of
the wands of the G-LINK cable to work with your VCR (instructions are on p. 13).
Go to page 13
