Bleed procedure, sheet 3
6.

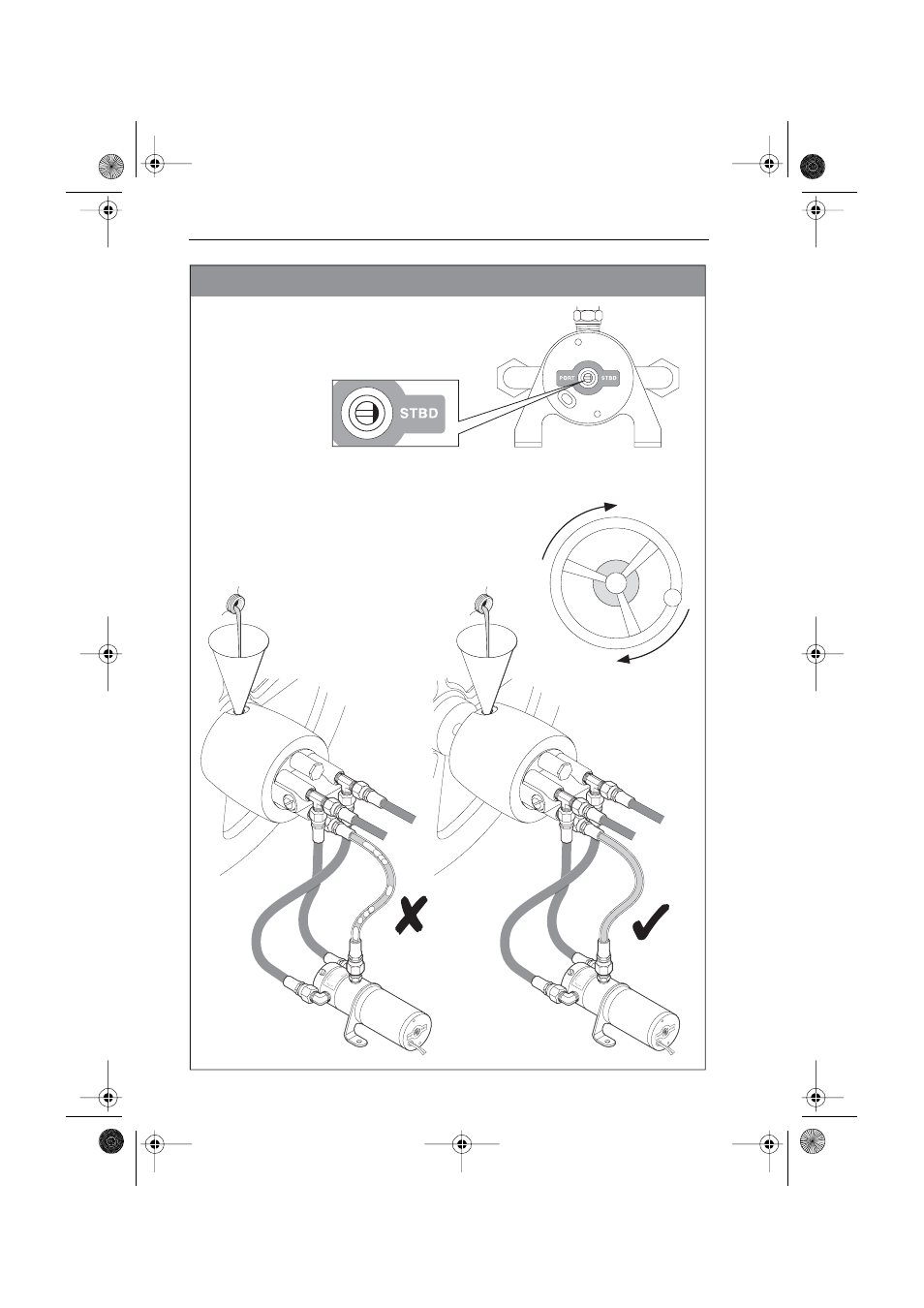

SLOWLY turn the wheel clockwise and observe the bubbles
in the transparent tube. Keep the helm pump reservoir
topped up while doing this. Keep turning the wheel
counter-clockwise until there are no more bubbles i.e. so
the hydraulic fluid in the transparent tube is clear.
D7337-2
5.
Using a suitable screwdriver, turn the autopilot
pump shaft so that the flat on the shaft is toward
the starboard (STBD) side of the pump.
