Regency Wood Insert & Hearth Heater 7

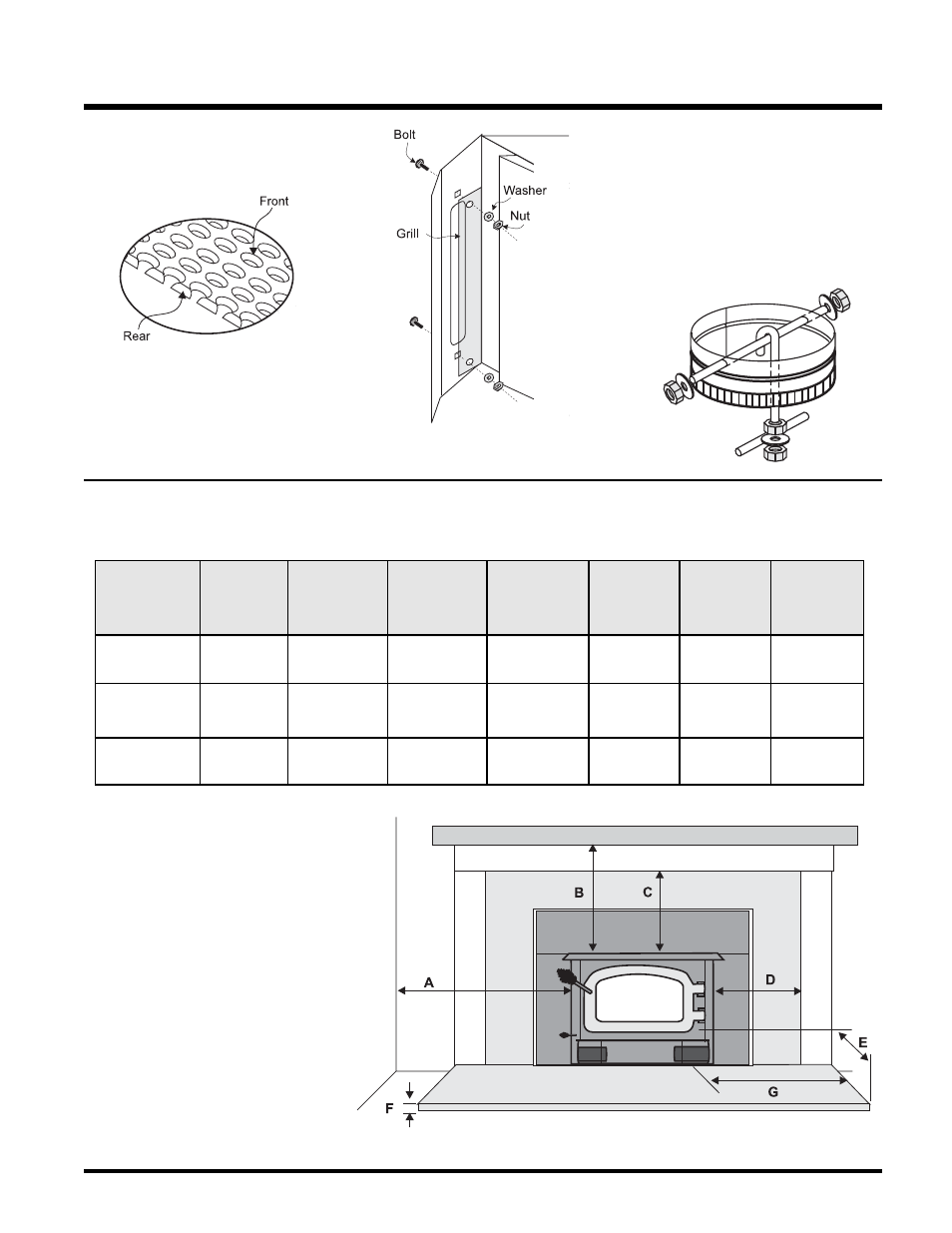

Clearance diagram for installations
INSTALLATION
Side and Top facing is a maximum of 1.5"
thick.
Floor protection must non-combustible, insula-
tive material with an R value of 1.1 or greater.
* If the hearth extension is fl ush with the fl oor
(F) it must extend 19.5" in front of the body
face (E).
Note: Hearth Extension Width (G) is meas-
ured from edge of fuel door to side
of hearth.
** A non-combustible mantel may be in-
stalled at a lower height if the framing
is made of metal studs covered with a
non-combustible board.
MASONRY AND FACTORY BUILT FIREPLACE CLEARANCES
The minimum required clearances to combustible materials when installed into a masonry or factory built fi replace are listed below.
Adjacent Mantle** Top Side Minimum Minimum Minimum
Unit Side Wall (to Top) Facing Facing Hearth Hearth Hearth Side
(to Side) (to Top) (to Side) Extension* Thickness* Extension
A B C D E F G
Small Flush
Insert (I1100S) 15"/380mm
20"/510mm 14"/355mm 7.375"/187mm 16"/406mm 1.5"/38mm 8"/205mm
Large Flush
Insert (I3100L) 13"/330mm
19"/480mm 18"/455mm 6.5"/165mm 16"/406mm 1.5"/38mm 8"/205mm
Hearth Heater
(H2100M)
10"/255mm 25"/635 mm 14"/355mm 8.5"/216mm 18"/455mm 1.5"/38mm 6"/152mm
View from Rear of Insert
OPTIONAL FLUE
CONNECTOR KIT
The optional Flue Connector Kit (Part # 846-527)
and the Straight Flue Adaptor (Part #846-504)
shown here, may be used to produce a secure
connection between your fl ue connector and the
insert collar. Detailed installation instructions are
included with the kit.
Position the grill on the inside bodyface side and
fasten using the bolts, washers and nuts provided
(2 per side) as shown in the diagrams.
Note: The grill has a front and rear, the holes
on the front side have rounded edges
and the rear holes have fl at edges.
