Section 1 Configuration

CAUTION

Use an NQPACK144SD socket (manufactured by Tokyo

Eletech Corporation) for the FP-144 package IC socket
on the user system.

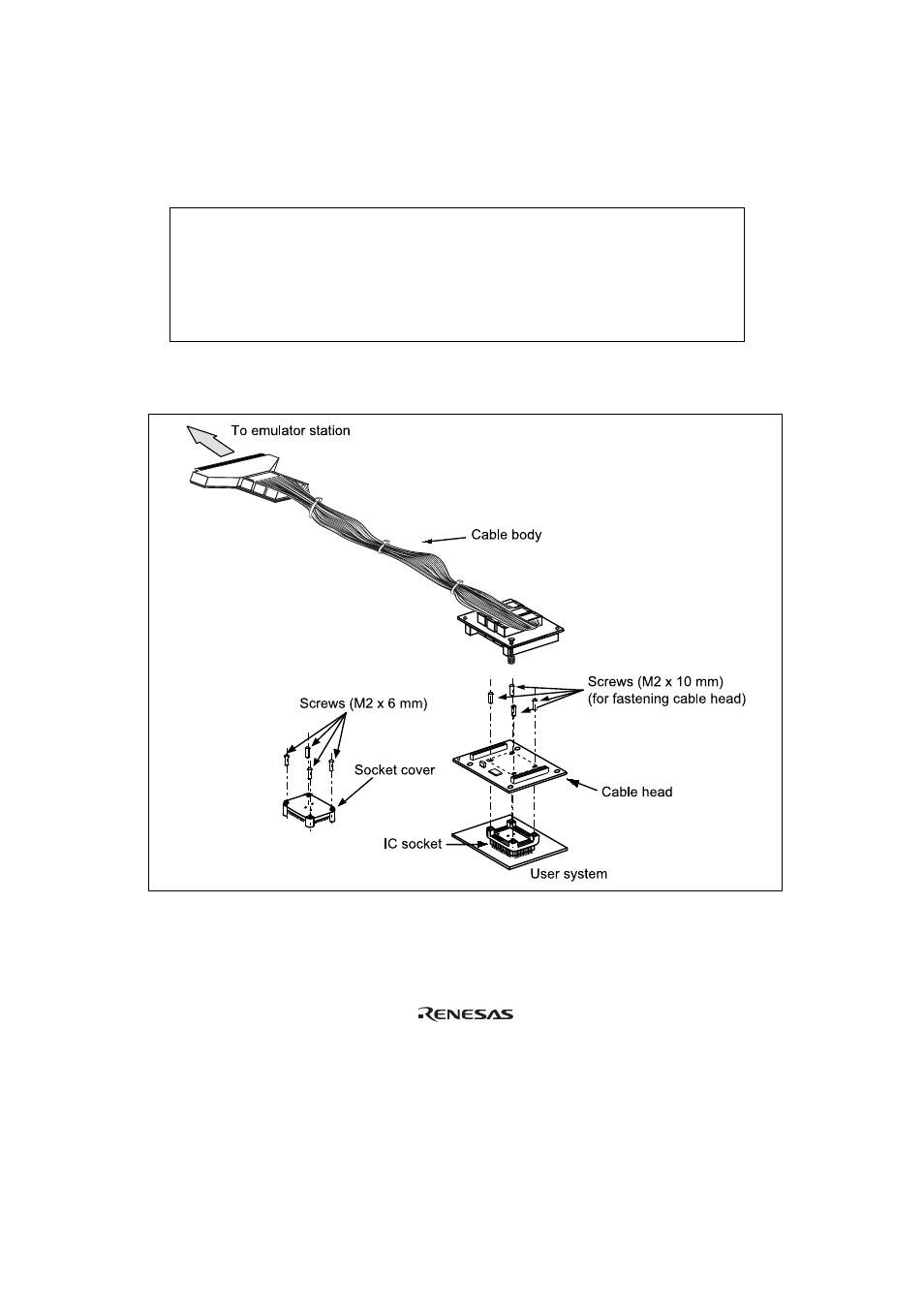

Figure 1 shows the configuration of the HS2643ECH61H user system interface cable for the
FP-144 package.

Figure 1 HS2643ECH61H User System Interface Cable
