Page 14
2.3
Recommended Dimensions for User System Mount Pad
Figure 6 shows the recommended dimensions for the mount pad (footprint) for the user system with
an IC socket for a FP-144 package (NQPACK144SD: manufactured by Tokyo Eletech
Corporation). Note that the dimensions in figure 6 are somewhat different from those of the actual
chip's mount pad.

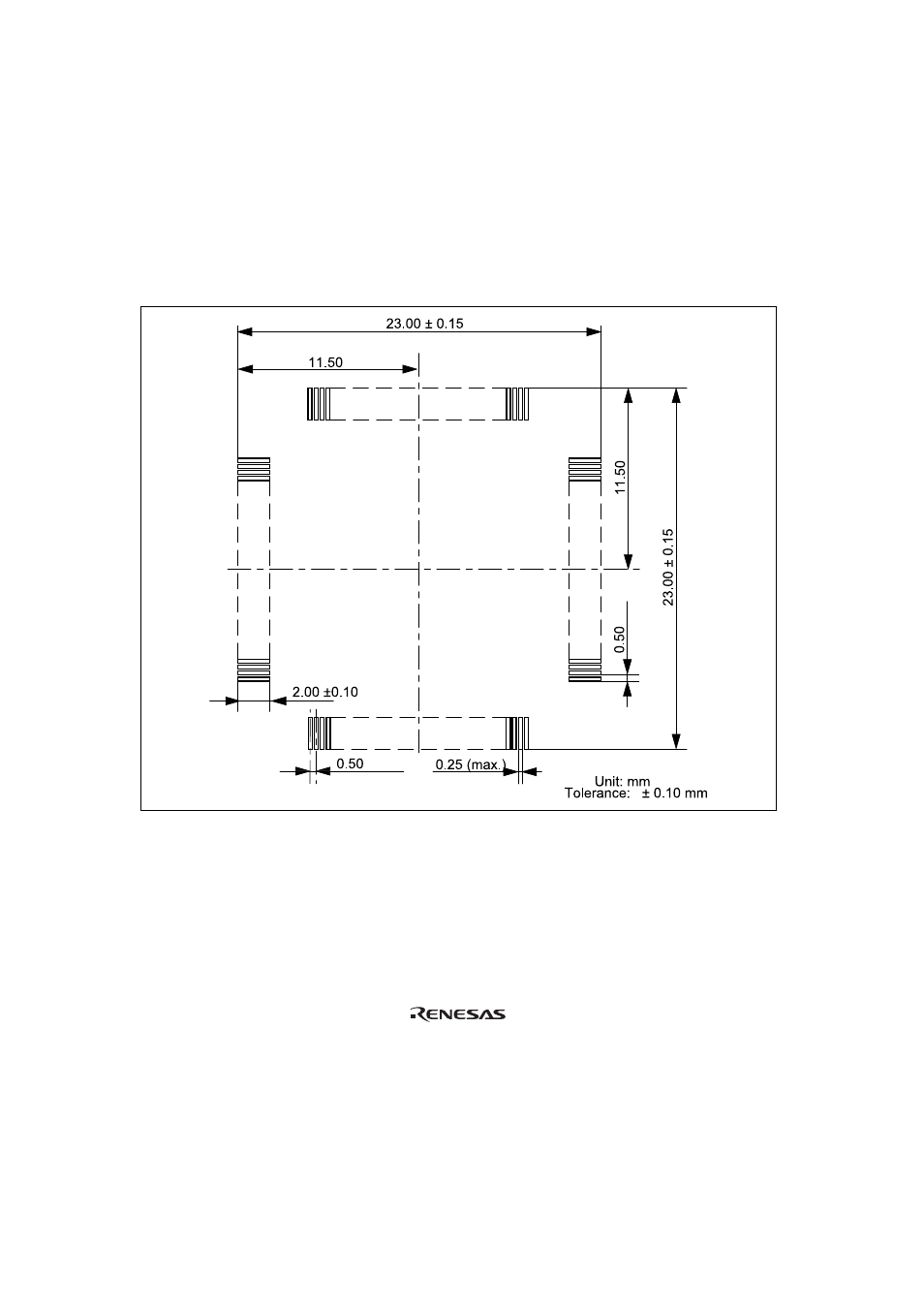

Figure 6 Recommended Dimensions for Mount Pad
10
