Section 5 Notice

1. Make sure that pin 1 on the user system IC socket is correctly aligned with pin 1 on the cable

head before inserting the cable head into the user system IC socket.

2. The dimensions of the recommended mount pad for the user system IC socket are different from

those of the MCU.

3. This user system interface cable is specifically designed for the HS3L08EPI60H emulator. Do

not use this cable with any other emulator station.

4. To prevent breaking of wires in the cable body, do not place heavy or sharp metal objects on the

user system interface cable.

5. While the emulator station is connected to the user system with the user system interface cable,

force must not be applied to the cable head. Place the emulator station, user system interface
cable, and user system as shown in the example in figure 10.

User system

Cable

Emulator station

Cable head is parallel

to emulator station

Cable head is parallel

to user system

Place components so that the cable body
and cable head are parallel to the
user system.

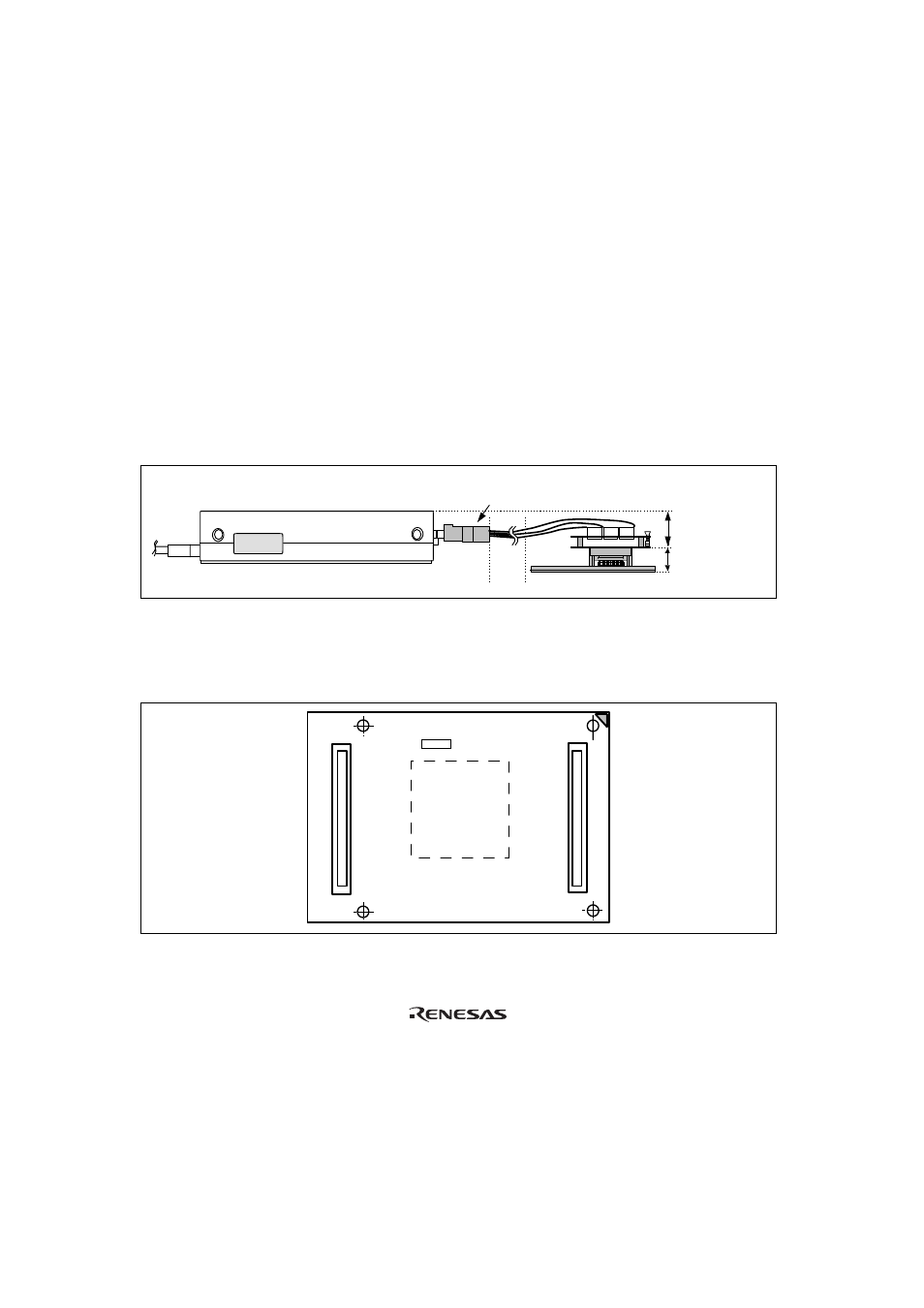

Figure 10 User System Interface Cable Location Example

6. The P1 short connector is used for testing. Do not remove the short pins that are inserted in the

sides of pin 1 and pin 2.

P1

1

3

Figure 11 P1 Short Connector

16
