1. Outline
The M34559T-PTCB, combined with the M34559T2-CPE
compact emulator, is a converter board for connecting a foot
pattern for 52-pin 0.65mm pitch LQFP package
(PLQP0052JA-A) of the 4559 group.
2. Package Components (See Figure 1)
(1) M34559T-PTCB converter board................................ 1 pc.
(2) NQPACK052SB (made by Tokyo Eletech Corporation) ................ 1 pc.
(3) YQPACK052SB (made by Tokyo Eletech Corporation) ................ 1 pc.
(4) YQSOCKET052SBF (made by Tokyo Eletech Corporation) ......... 1 pc.
Pre-mounted on the converter board M34559T-PTCB
(5) YQ-GUIDE-S1 (made by Tokyo Eletech Corporation) .................4 pcs.
(6) M34559T-PTCB User's Manual (This manual)
3. Specifications
Table 1 Specifications
Applicable package
PLQP0052JA-A
(Previous code: 52P6A-A)
(52-pin 0.65mm pitch LQFP)
Insertion/removal
iterations of connector
20 times guaranteed
4. Usage (See Figure 2)
The M34559T-PTCB can be used for debugging and
board-mounted evaluation in common by mounting the
NQPACK052SB on the user system.
(1) For debugging
Mount the NQPACK052SB on the foot pattern of the user
system and attach the YQPACK052SB on it. Then
connect the M34559T-PTCB to the YQPACK052SB.
(2) For onboard evaluation
Mount the OzROM MCU first, and HQPACK052SB
(separately available) on the NQPACK052SB on the user
system.
Before using the M34559T-PTCB, be sure to read "6.
Precautions" on page 3.
M34559T-PTCB
YQ-GUIDE-S1 (4 pcs.)
YQPACK052SB
NQPACK052SB

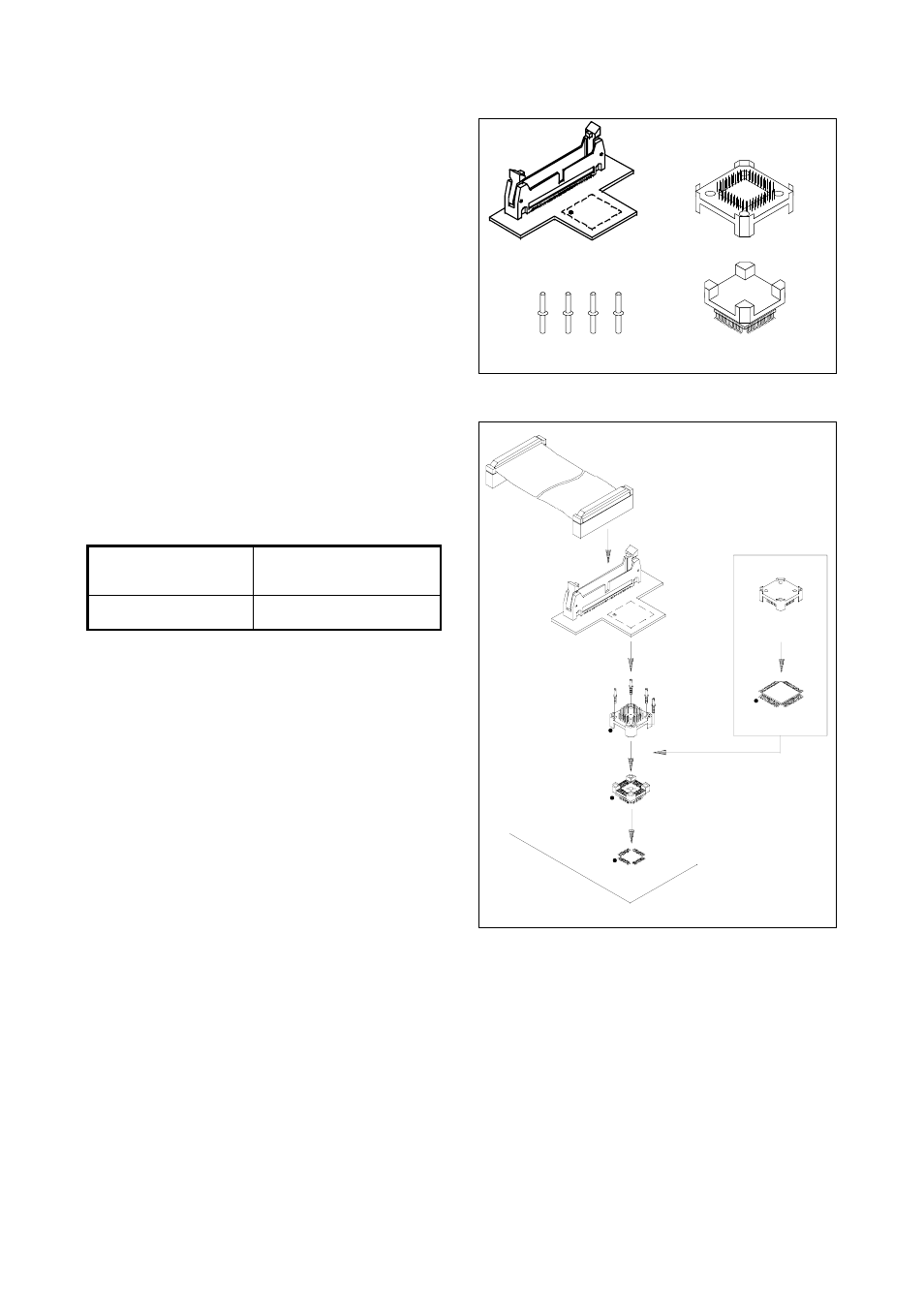

Figure 1 Package components of the M34559T-PTCB
64-wire half-pitch cable
M34559T-PTCB
YQPACK052SB*
YQ-GUIDE-S1 (x4) *
NQPACK052SB*
52-pin 0.65mm pitch
LQFP foot pattern
HQPACK052SB
(separately available)
MCU
● indicates No.1 pin position
* :These are included with the package of the M34559T-PTCB
(1)
(2)
(4)
(3)
For onboard evaluation
Figure 2 Usage of the M34559T-PTCB
(2/4)
