28
Hooking Up the TV/VCR

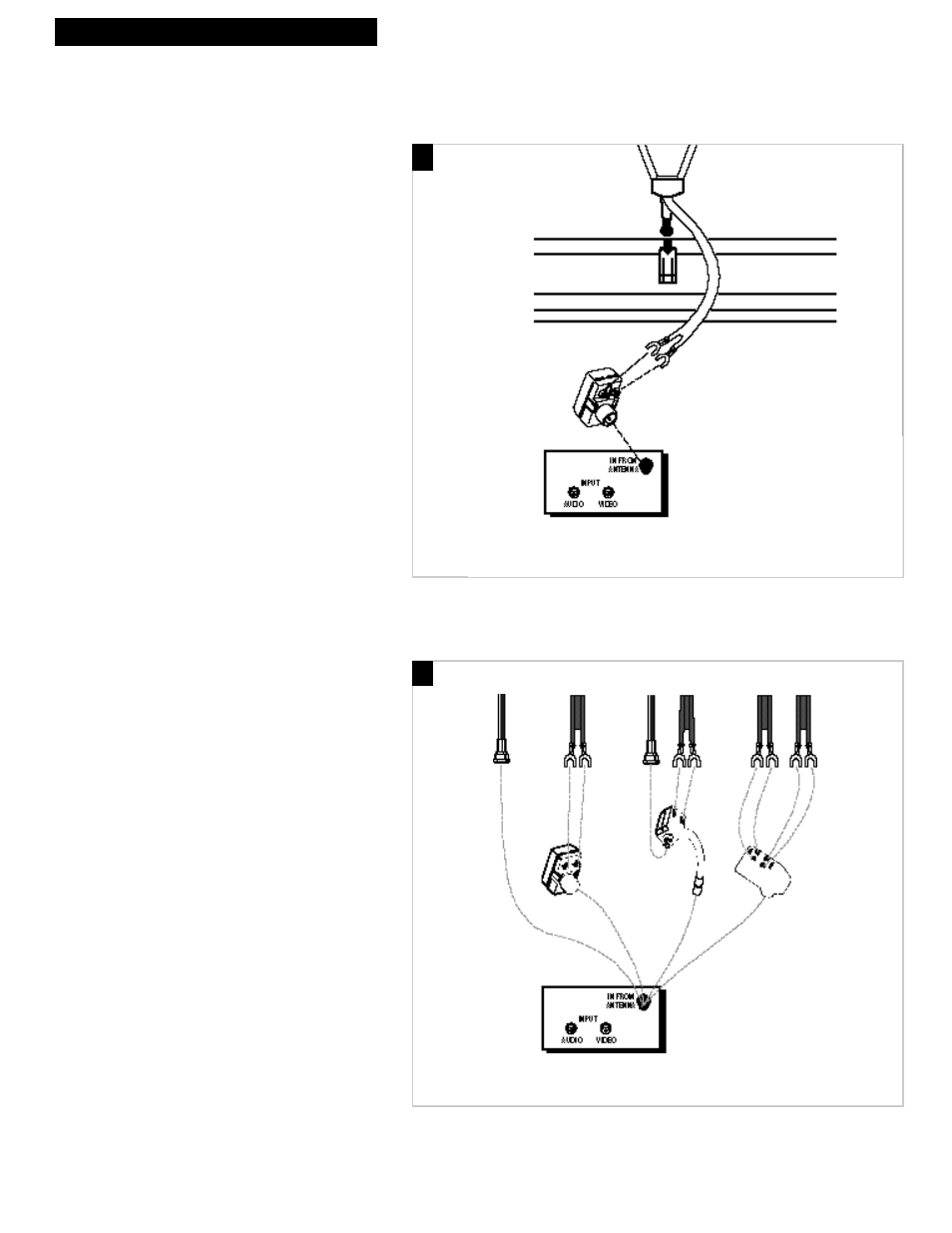

Connect Antenna or Cable System Without a Cable Box
A. Dipole Antenna
Follow these steps to connect a dipole antenna
to your TV/VCR. Do not connect a dipole
antenna if you plan to connect a different type
of indoor or outdoor antenna or cable system.
This connection may req u i r e additional
accessories not provided.
1. Insert the antenna base into the slot on
the back of your TV/VCR.
2. Connect the twin-lead ends of the
antenna to the screw terminals of an
antenna adapter.
3. Connect an antenna adapter to the IN
FROM ANTENNA
jack on the back of the
TV/VCR.
4. Plug in the TV/VCR’s power cord.
5. Turn to pages 2-5 for “Setting Up the
TV/VCR.”
Adjust the length and position of the antenna
rods for the best reception.
• For viewing VHF channels, extend the
rods fully.
• For UHF viewing, shorten the rods.
B. Outside Antenna, Set-top
Antenna, or Cable System
Without a Cable Box
1. Connect as shown.
This connection may require additional
accessories not provided.
2. Plug in TV/VCR’s power cord.
3. Turn to pages 2-5 for “Setting Up the
TV/VCR.”
Dipole Antenna
Antenna Slot
Twin-Lead Ends
Antenna Adapter
Back of TV/VCR
A
Match Your Type of Antenna or Cable
OR OR OR
Antenna
Adapter
Back of TV/VCR
Antenna
Mixers
B
