Page 16

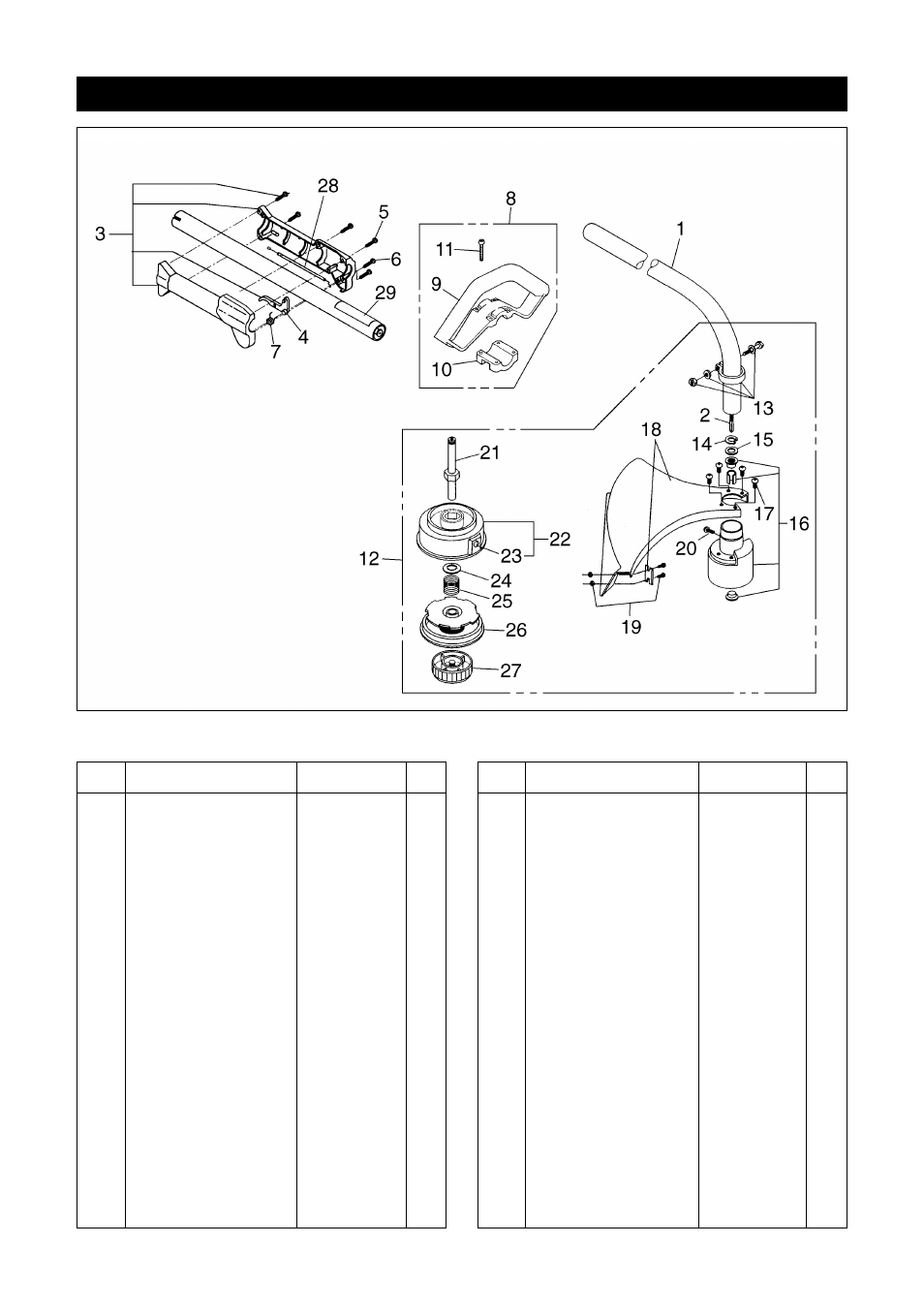

Fig.1 TRIMMER UNIT FOR BT2200LDC
Key#
Description
Part Number Q'ty
PARTS LIST
Fig.1 TRIMMER UNIT FOR BT2200LDC
17
Guard mount screw
153318
1
18
Guard ass'y
683445
1
19
Blade ass'y
682061
1
20
Anti-rotation screw
145569
1
21
Spool shaft
153313
1
22
Outer spool ass'y
153619
1
23
Eyelet
145566
2
24
Retainer (10 pack)
610660
1
25
Spring
610317
1
26
Inner reel
153600
1
27
Bump head knob ass'y
153066
1
28
Throttle cable comp.
6502-82100
1
29
Decal
—————
1
Key#
Description
Part Number Q'ty
1
Curved shaft ass'y
—————
1
2
Flex.drive shaft
—————
1
3
Throttle housing ass'y
181125
1
4
Throttle lever
180975
1
5
Screw
145569
1
6
Screw
147544
5
7
Spring
610314
1
8
Handle ass'y
6462-14100
1
9
Handle
6462-14310
1
10
Clamp
6462-14320
1
11
Screw
0263-90535
4
12
Cutting head ass'y
147823
1
13
Lower clamp ass'y
153597
1
14
Retaining ring
145570
1
15
Washer
145567
1
16
Bushing ass'y
153312
1
14
