Renesas R0E571250CFG00 User Manual
Page 29
11
3.4
Dimensions for EV-Chip Unit and User System Interface Board
The dimensions for the EV-chip unit and the user system interface board are shown in figure 5.
90.0
45.0
5.0
Unit: mm
Tolerance: ±0.5 mm
Board
Spacer
125.0
90.0
EV-chip unit
110.0
20.0
30.0
60.0
5.0
Pin 1

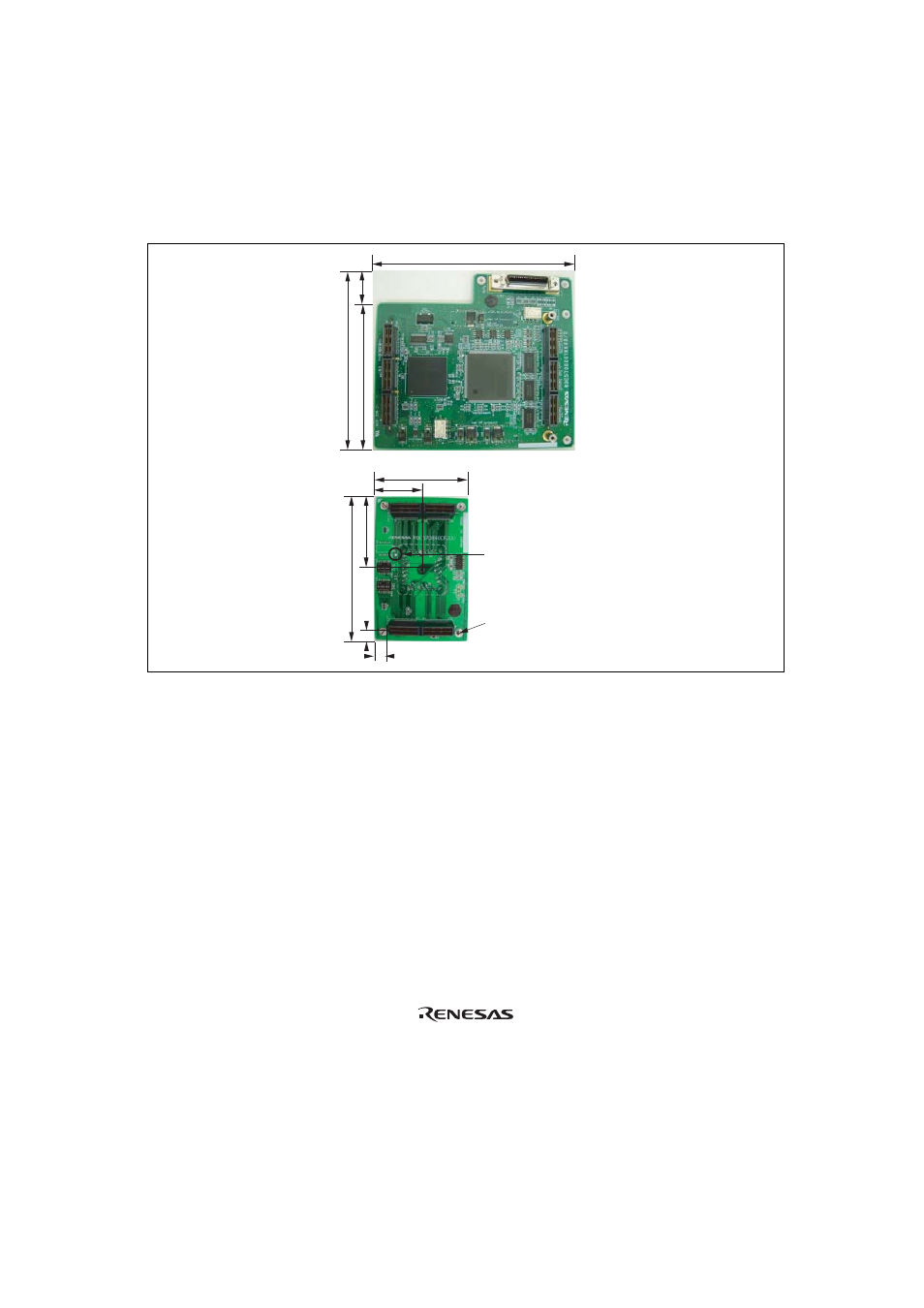

Figure 5 Dimensions for EV-Chip Unit and User System Interface Board
