3.3 Recommended Dimensions for User System Mount Pad (Footprint)
Figure 4 shows the recommended dimensions for the mount pad (footprint) for the user system
with an IC socket for a PRQP0064GB-A (former code: FP-64AV) package (NQPACK064SA:
manufactured by Tokyo Eletech Corporation). Note that the dimensions in figure 4 are somewhat
different from those of the actual chip's mount pad.
0.8
0.8 x 15 = 12
0.5 8
14
2.3
18.6
8
Pin 1
(SL-type)
Unit: mm
Dimension and tolerance
Tolerance
±0.05
±0.10
±0.15
±0.20
±0.30 Dimension
Up to 1.2
1.3 to 2.0
2.1 to 5.0
5.1 to 10.0
10.1 or above

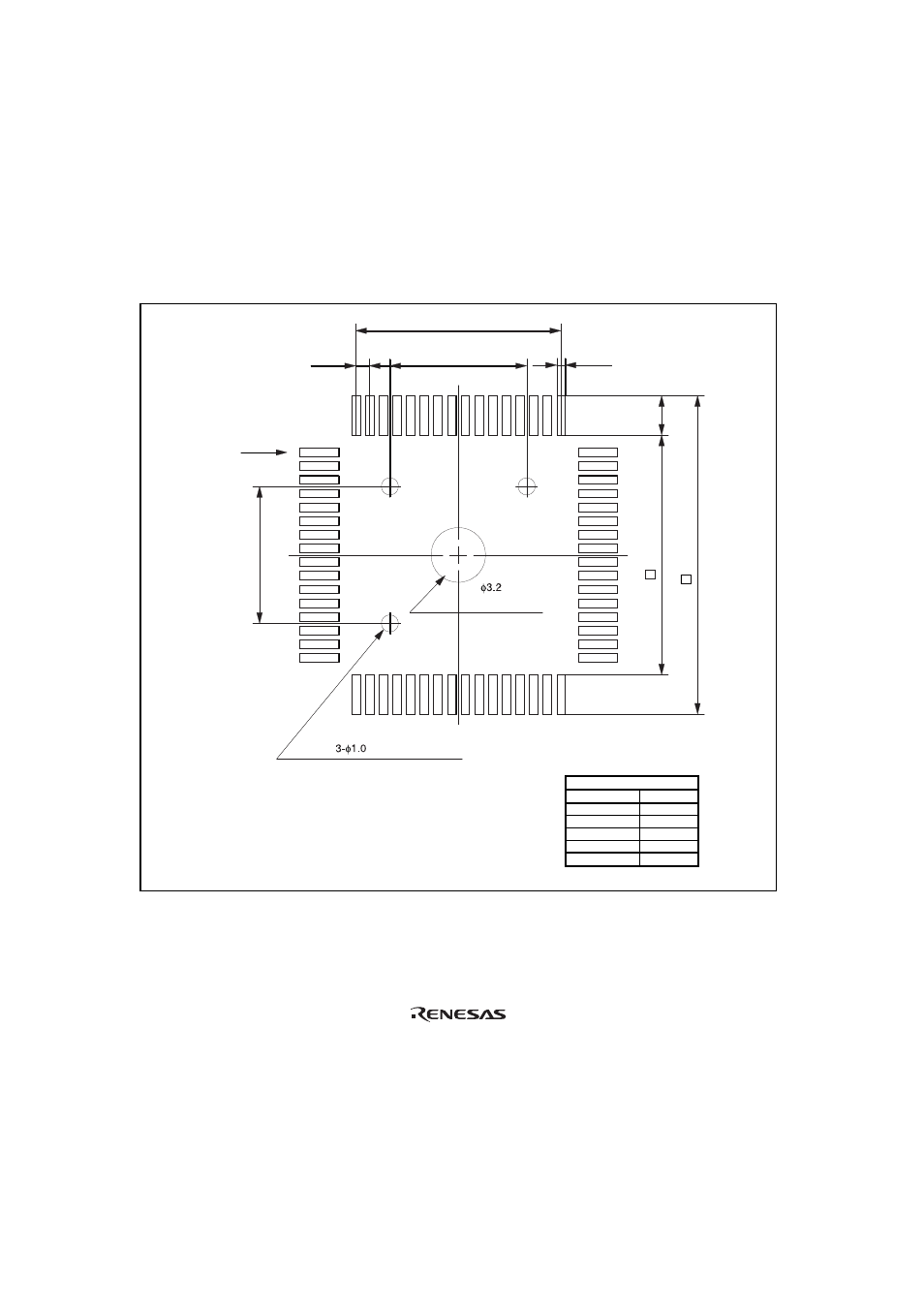

Figure 4 Recommended Dimensions for Mount Pad
