20
EXAMPLES OF CONNECTIONS.
CAUTIONS ON CONNECTIONS:
• Unplug the projector and other equipment from the AC
supply before making connections.
• Make sure that the plug of the power cord is properly
connected to the power outlet. A loose connection may cause
hum or noise.
• Confirm your connection layout with the user’s manual
accompanying the equipment to be connected with the ISS-
6020/ISS-6020G Switcher.
• Make sure that the STANDALONE mode is selected from the CONNECT CONDITION menu. See page 71 for connecting the
Switcher.

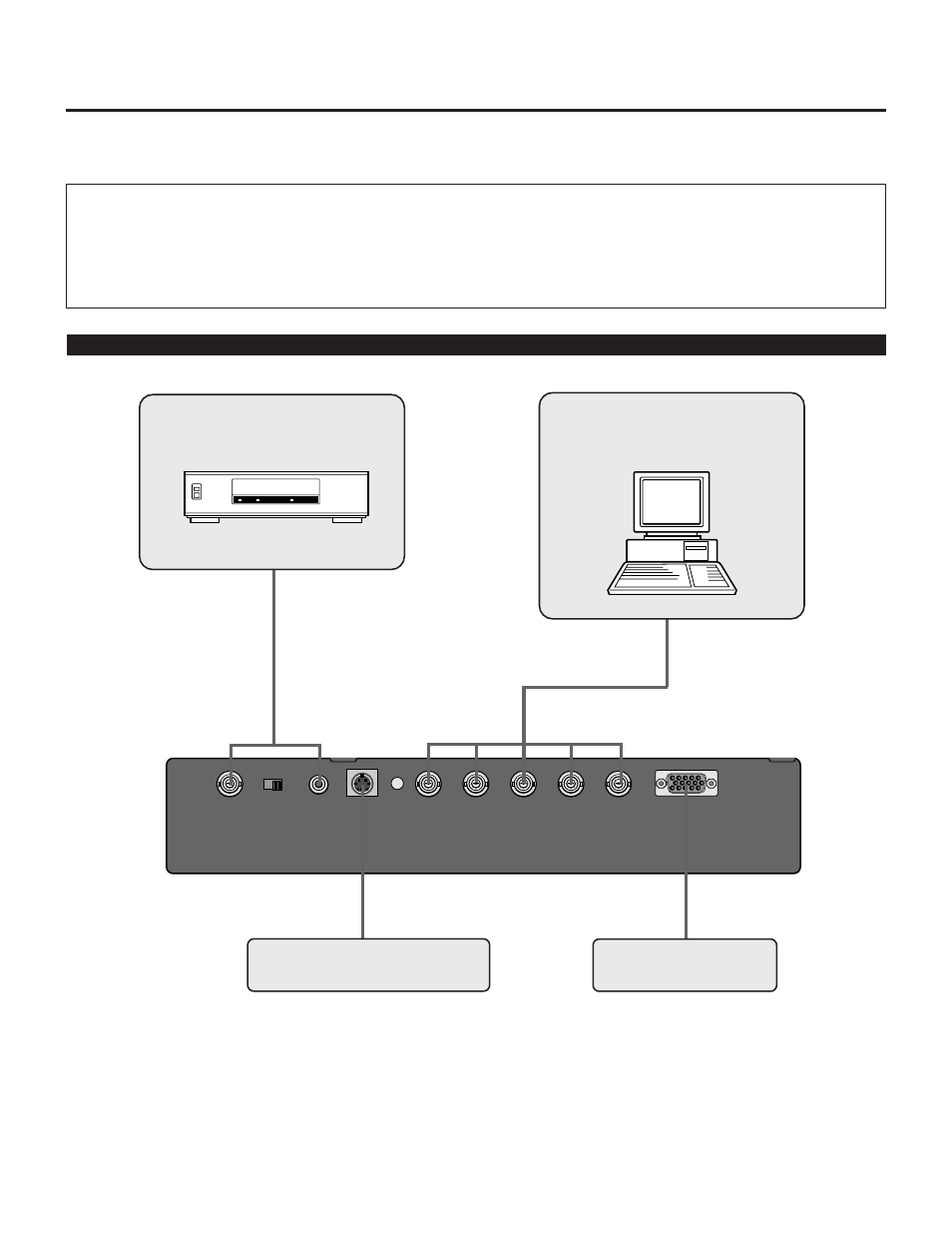

When Used in Stand Alone Operation
Components with RGB and H/V
SYNC outputs such as a personal
computer.
VIDEO BNC RCA VIDEO S-VIDEO R/Cr G/Y B/Cb H/HV V OSD OUT
PC Monitor VCR with S-Video outputs
VCR with S-video outputs.
2.INSTALLATION
