NetComm 4-port and 8-port Gateways Gateway Series User Manual
Page 17
SmartVoice Gateway(s) User Guide
17
YML83 Rev

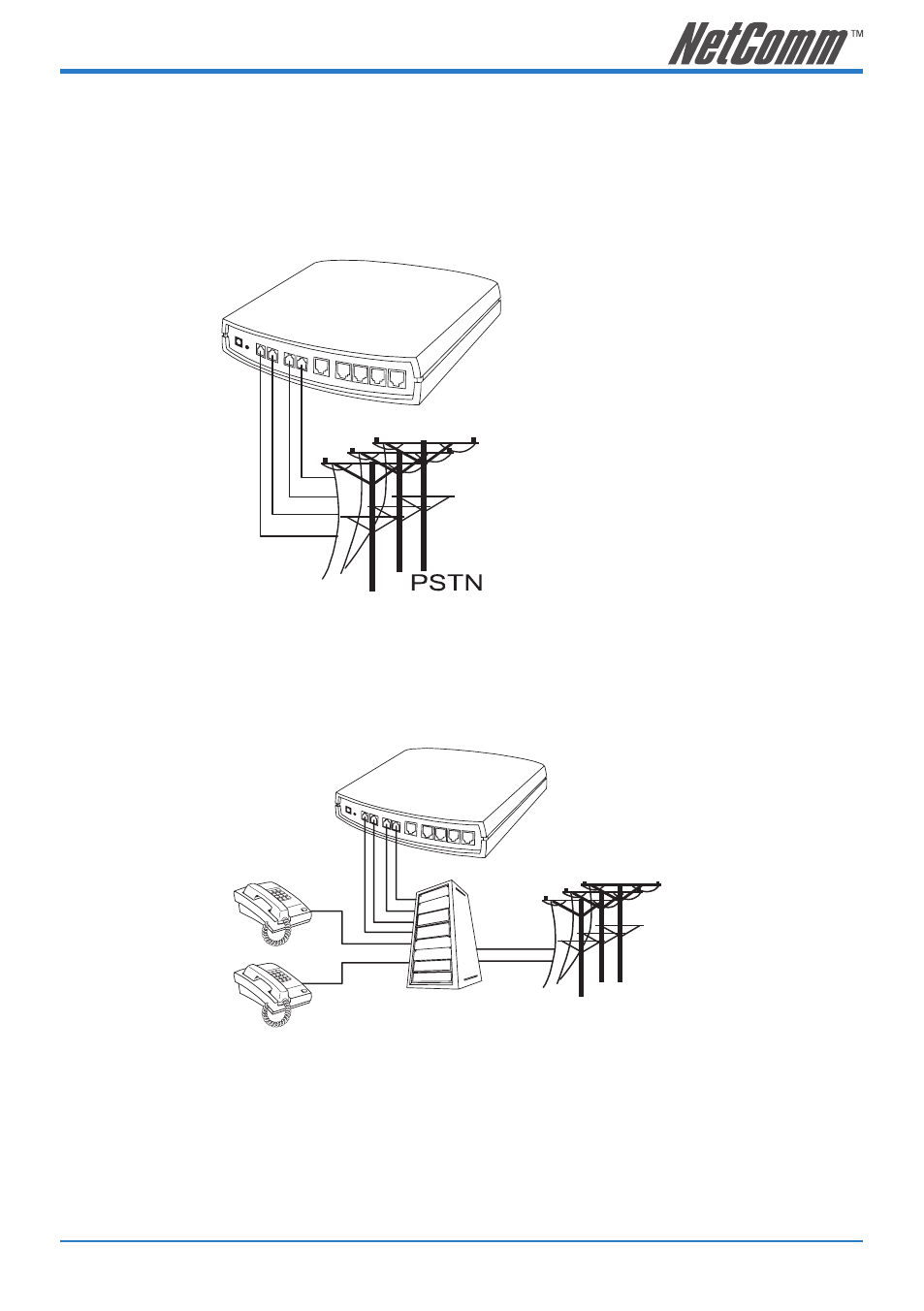

Example of SmartVoice Gateway using FXO interfaces
SmartVoice Gateway connecting directly to the Telephone Line of a PSTN
Line1-Line4 are FXO interfaces and can all be connected to a PSTN to serve as a bridge between the
PSTN and VoIP network.
Integrating the SmartVoice Gateway with PBX
Line1-Line4 are FXO interfaces and can be connected with PBX extension lines (this is exclusively for an
analog interface, and is not applicable for a digital interface).
Note:
The above diagrams show a 4-port SmartVoice gateway for illustration purposes.
An 8 port SmartVoice gateway could also be used depending upon your network
requirements.
