1. Introduction

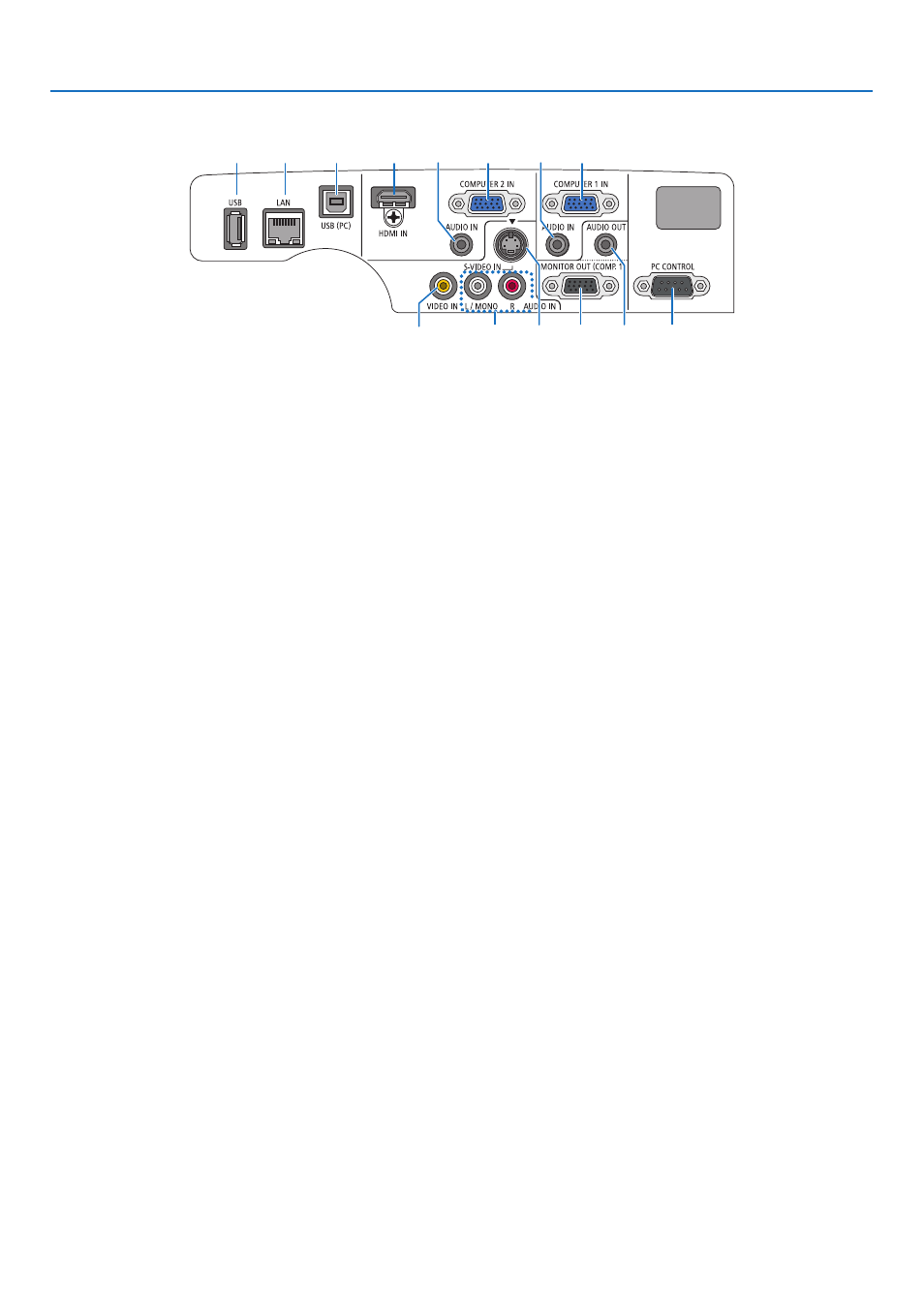

Terminal Panel Features
1 2 3 5 6 13 12
8 7 11 14 9 10
4
1. COMPUTER 1 IN/ Component Input Connector
(Mini D-Sub 15 Pin) ( → page 132 , 136 , 157 )
2. COMPUTER 1 AUDIO IN Mini Jack (Stereo Mini)
( → page 132 , 134 , 136 )
3. COMPUTER 2 IN / Component Input Connector
(Mini D-Sub 15 Pin) ( → page 132 , 136 )
4. COMPUTER 2 AUDIO IN Mini Jack (Stereo Mini)
( → page 132 , 134 , 136 )
5. HDMI IN Connector (Type A)
( → page 132 , 137 )
6. USB (PC) Port (Type B)
( → page 33 , 34 , 132 )
7. MONITOR OUT (COMP. 1) Connector (Mini D-Sub
15 Pin) ( → page 134 )
8. AUDIO OUT Mini Jack (Stereo Mini) ( → page 134 )
9. S-VIDEO IN Connector (Mini DIN 4 Pin)
( → page 135 )
10. VIDEO IN Connector (RCA) ( → page 135 )
11. VIDEO/S-VIDEO AUDIO IN L/MONO, R (RCA)
( → page 135 )
12. LAN Port (RJ-45) ( → page 141 )
13. USB Port (Type A) ( → page 59 , 180 )
14. PC CONTROL [PC CONTROL] Port (D-Sub 9 Pin)
( → page 200 )
Use this port to connect a PC or control system. This
enables you to control the projector using serial commu-
nication protocol. If you are writing your own program,
typical PC control codes are on page
200 .
