NetComm Power Over Ethernet NPPOE1001 User Manual
Page 8
NetComm NPPOE1001 Power over Ethernet Kit
YML720Rev1
8
www.netcomm.com.au
Now you should see that power is provided to the device you have connected to the POE Splitter. If
there is no power, please refer to the Troubleshooting section in this guide.

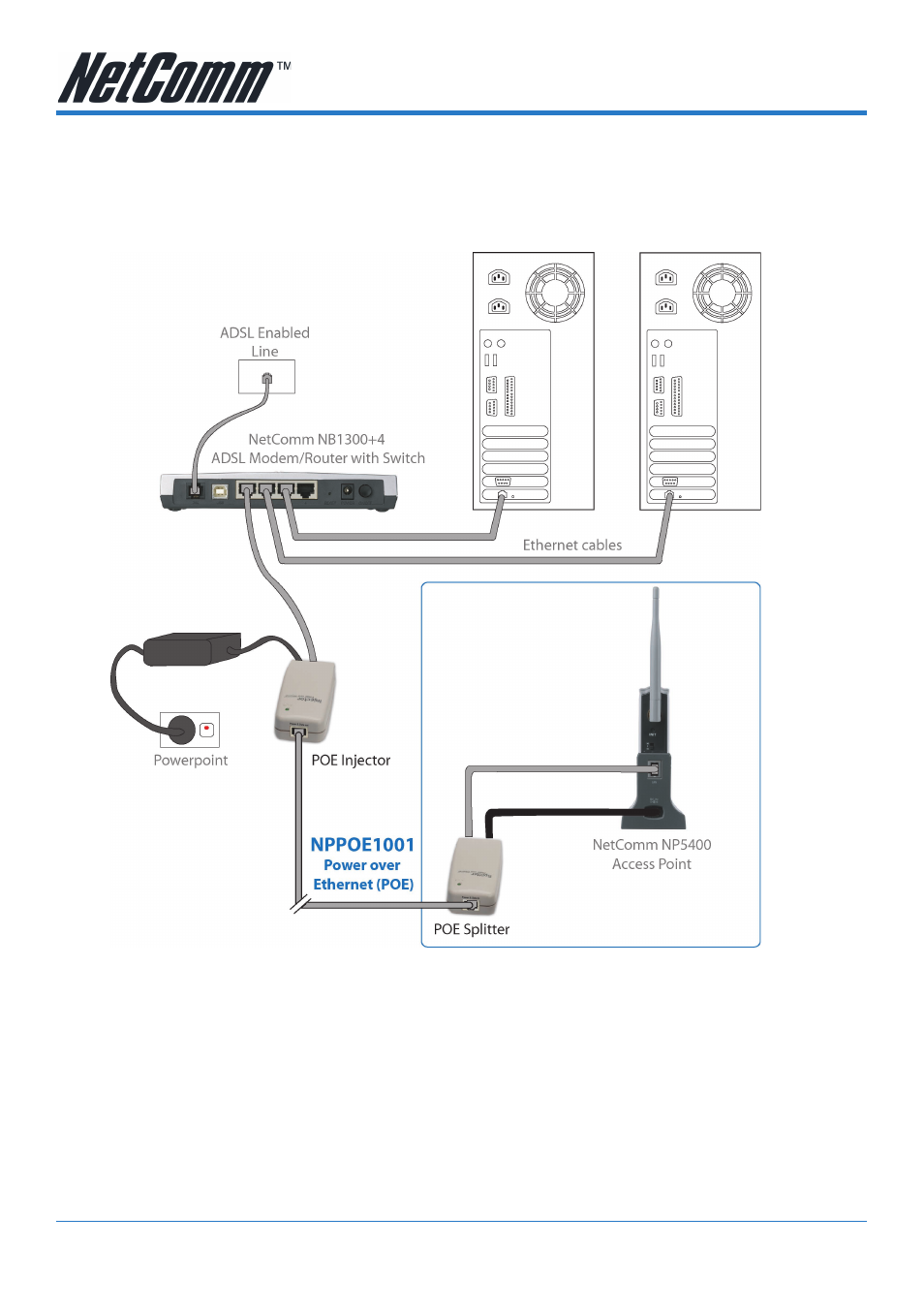

The following figure illustrates connection of an NP5400 Access Point using Power Over Ethernet.
Figure 4
Please Note: The total distance from the NB1300+4 ADSL Modem/Router to the NP5400
Access Point (as used in this example) should be less than 100 metres (i.e.
328 feet).
