The POE Splitter
PoE Splitters split data and power from the Cat5 Ethernet line. It will output Ethernet data to the
device via the Etherent port and DC 5V/1.67A or 12V/1A power via the DC output cable.

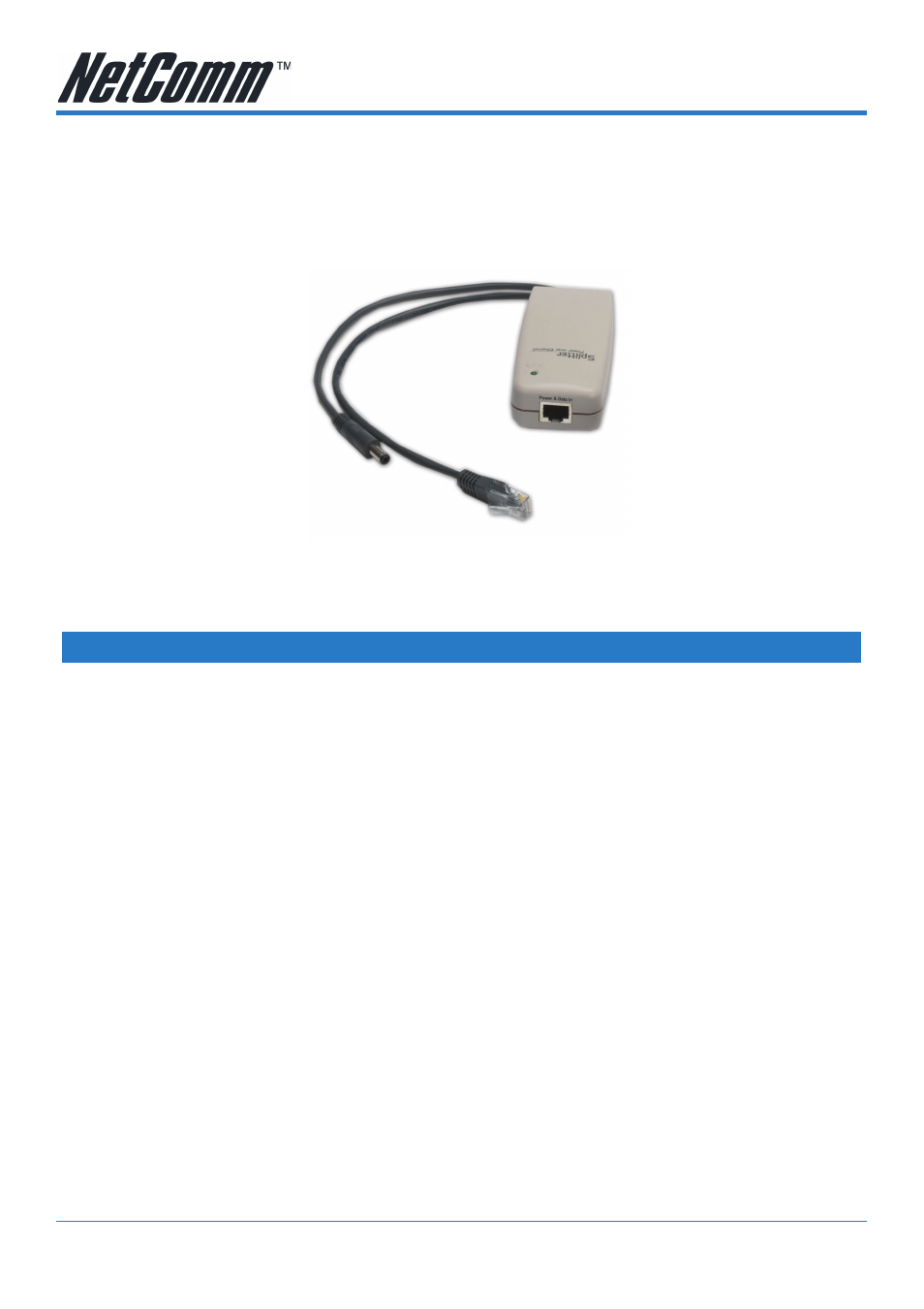

Figure 2
Splitter
Object Description
Splitter
PWR LED Lights green to indicate that the power has been supplied
to the device
Power and Data In Port Connects the RJ-45 port of Injector through Cat 5
Ethernet cable
Cat 5 Ethernet Cable Connects to other network devices
Power Cable Connects to other DC jack on the network device
Voltage Selector Used to select DC 5V/1.67A or 12V/1A power
