CHAPTER 4 CAUTIONS
User’s Manual U14337EJ1V0UM00
28
4.2 NMI Signal
The input signal (NMI signal) from the target system is delayed (t pD = 0.25 ns (TYP.)) because it passes through
QS3125 (Q switch) before it is input to the I/O chip of the emulator.
In addition, the DC characteristics change. The input voltage becomes V IH = 2.0 V (MIN.), V IL = 0.8 V (MAX.), and
the input current becomes I IN =
±
0.5
µ
A (MAX.).

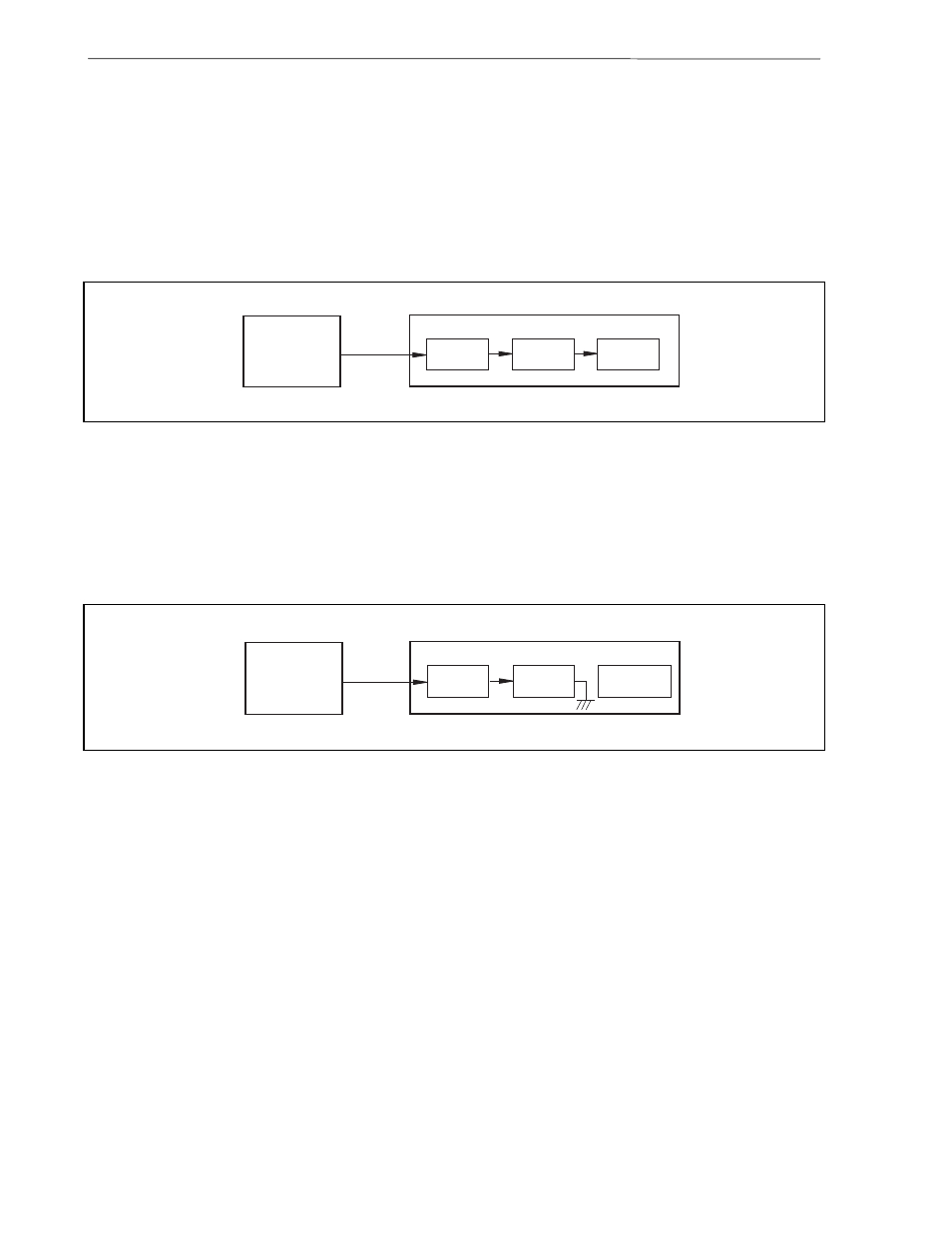

Figure 4-2. NMI Signal Flow Path
4.3 V PP Signal
The V PP signal from the target system is connected to LED via a 330-
Ω
resistor in the emulator. It is not
connected to the evaluation chip in the emulator.
Figure 4-3. V PP Signal Flow Path
IE-703040-MC-EM1
NMI pin
Target system
NMI signal
QS3125 I/O chip
IE-703040-MC-EM1
330 Ω Target system V PP signal
LED
Evaluation
chip
