CHAPTER 1 OVERVIEW

User’s Manual U14337EJ1V0UM00

1.4

System Configuration

The system configuration when connecting the IE-703002-MC to the IE-703040-MC-EM1 and a personal computer

(PC-9800 series or PC/AT

(or compatibles)) is shown below.

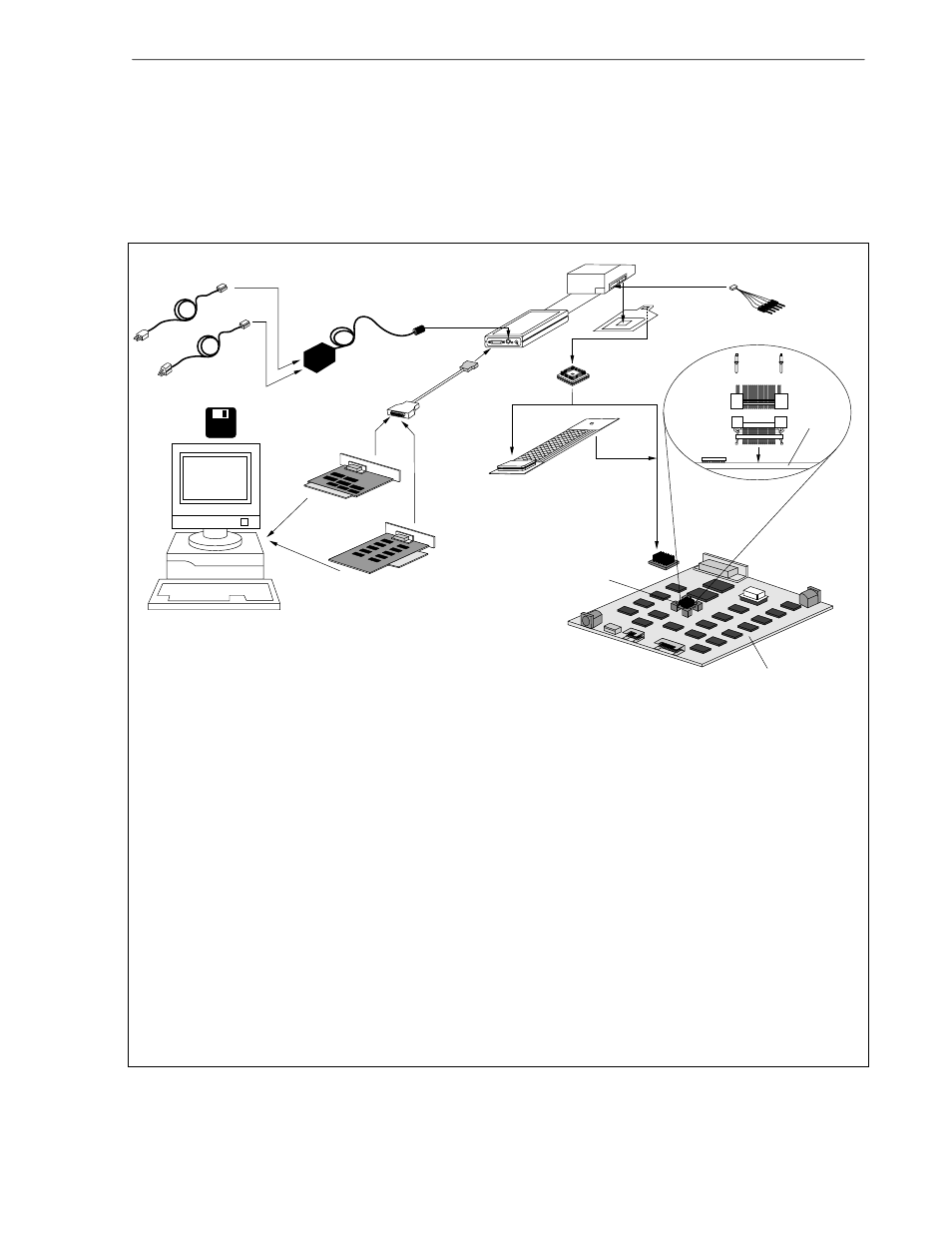

Figure 1-1. System Configuration

Remark

<1> Personal computer (PC-9800 series or PC/AT or compatibles)

<2> Debugger (sold separately)

<3> PC interface board

(IE-70000-98-IF-B/IE-70000-98-IF-C, IE-70000-PC-IF-B/IE-70000-PC-IF-C: sold separately)

<4> PC interface cable (included with IE-703002-MC)

<5> In-circuit emulator (IE-703002-MC: sold separately)

<6> In-circuit emulator option board (IE-703040-MC-EM1)

<7> External logic probe (included with IE-703002-MC)

<8> Socket for target connection (YQSOCKET176SDN: sold separately)

<9> Extension probe (SC-100SD: sold separately)

<10> Connector for emulator connection (YQPACK176SD: included)

<11> Connector for target connection (NQPACK176SD: included)

<12> Power adapter (IE-70000-MC-PS-B : sold separately)

<13> AC100-V power cable (sold separately: included with IE-70000-MC-PS-B)

<14> AC220-V power cable (sold separately: included with IE-70000-MC-PS-B)

For PC-9800 series

For PC/AT or
compatibles

[Magnified drawing: example of use of
connector for target connection]

Target
system

<13>

<14>

<12>

<5>

<6>

<7>

<4>

<3>

<1>

<2>

<9>

<11>

<10>

Target system

<10>

<11>

<8>
