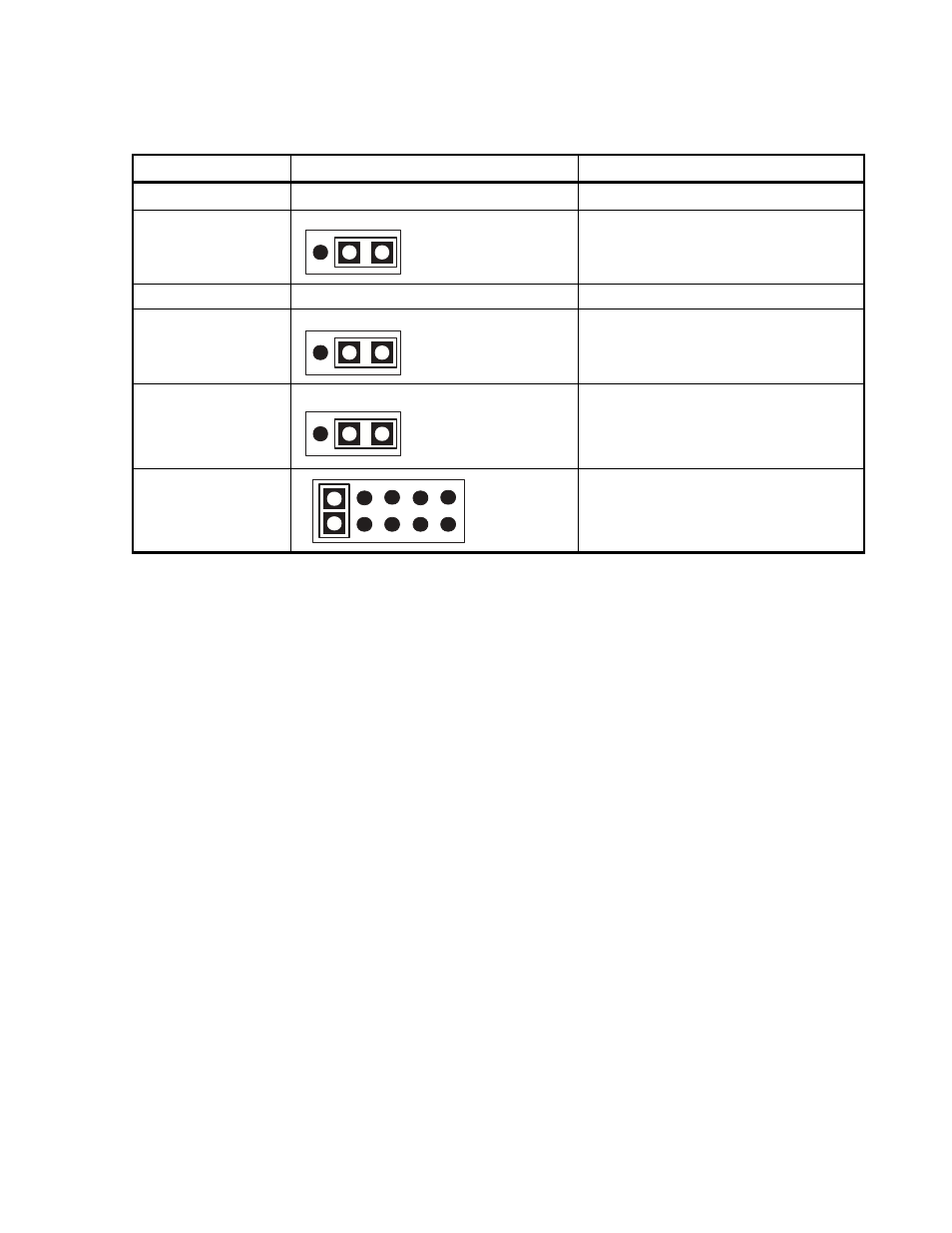

CHAPTER 3 FACTORY SETTINGS
Item
Description
Remark
JP1
Oscillator not mounted
Pin board for product check
JP2
1
2
3
Jumper switch for product check
JP3
Oscillator mounted
32.768-kHz clock supplied for subsystem clock
JP4
1
2
3
Jumper switch for product check
JP5
1
2
3
Internal clock used for main system clock
JP6
2
10
9
1
Jumper switch for product check
