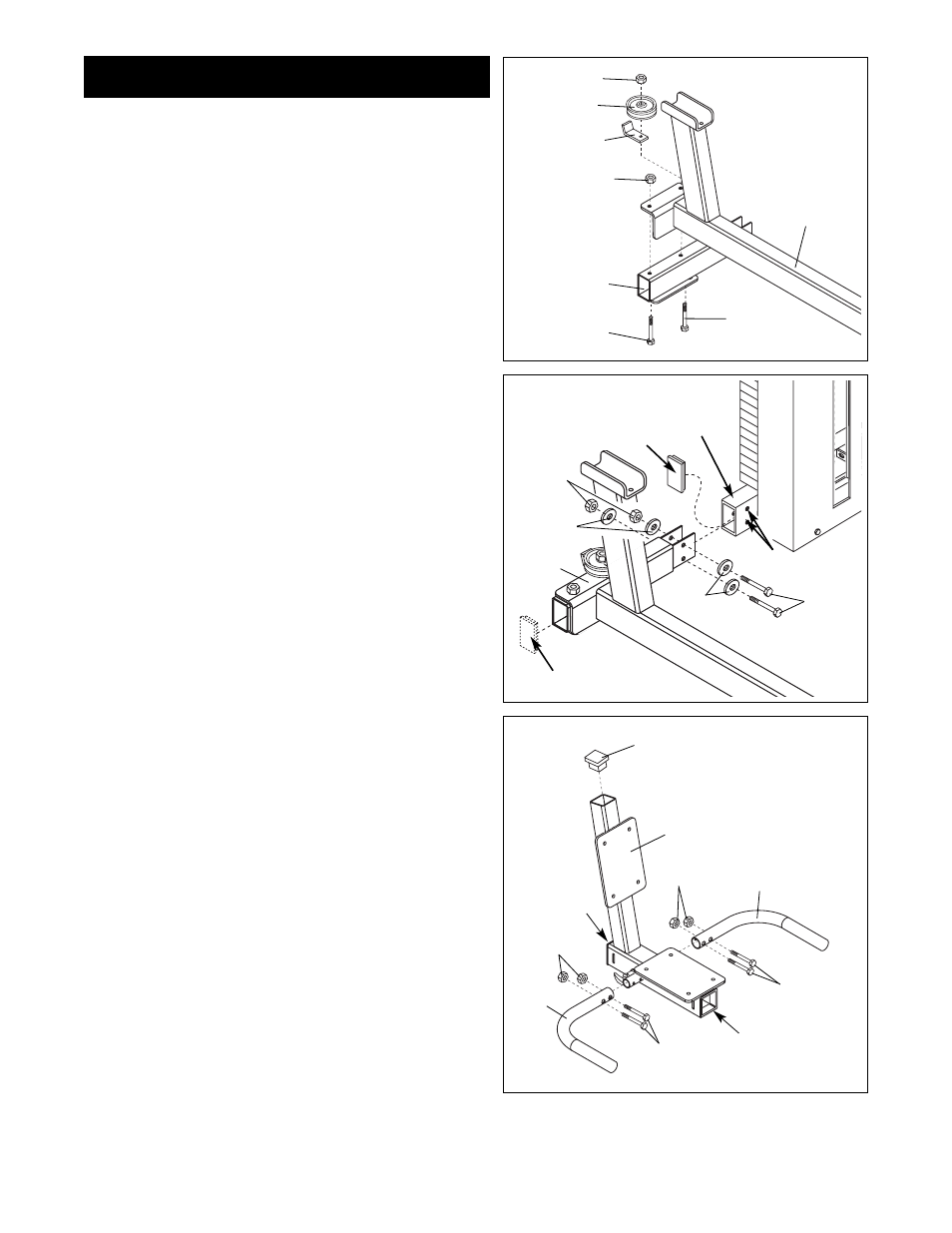

2. Remove the inner cap and the four hole plugs from
the end of the stabilizer.
Attach the Base Support (103) to the stabilizer with
two 3/8” x 2 3/4” Bolts (125), four 3/8” Washers (120),
and two 3/8” Nylon Locknuts (118).
Press the inner cap into the indicated end of the Base
Support (103).
1. Before beginning assembly, make sure you have
read and understood the information on page 5.
Open the parts bags labeled “FRAME ASSEMBLY”
and “PULLEY.”
Attach the Press Base (101) to the Base Support
(103) with the 3/8” x 3 3/4” Carriage Bolt (119) and a
3/8” Nylon Locknut (118).
Attach a 4” Pulley (113) and a Cable Trap (116) to the
Base Support (103) with the 3/8” x 5” Bolt (123) and a
3/8” Nylon Locknut (118).
2
Frame Assembly
120
Inner Cap
Hole Plugs
103
Stabilizer
120
Inner Cap
118
125
1
101
123
119
118
118
116
113
3. Attach the Handles (109) to the Seat Frame (106) with
four 1/4” x 1 1/2” Bolts (131) and four 1/4” Nylon
Locknuts (128). Make sure the heads of the Bolts
are inside of the hexagonal holes in the Handles.
Press a 2” Square Inner Cap (112) into the top of the
Seat Frame (106). Make sure there are two Seat
Frame Bushings (132) in the indicated ends of the
Seat Frame.
131
109
131
109 128
112
128
132
132
106
3
