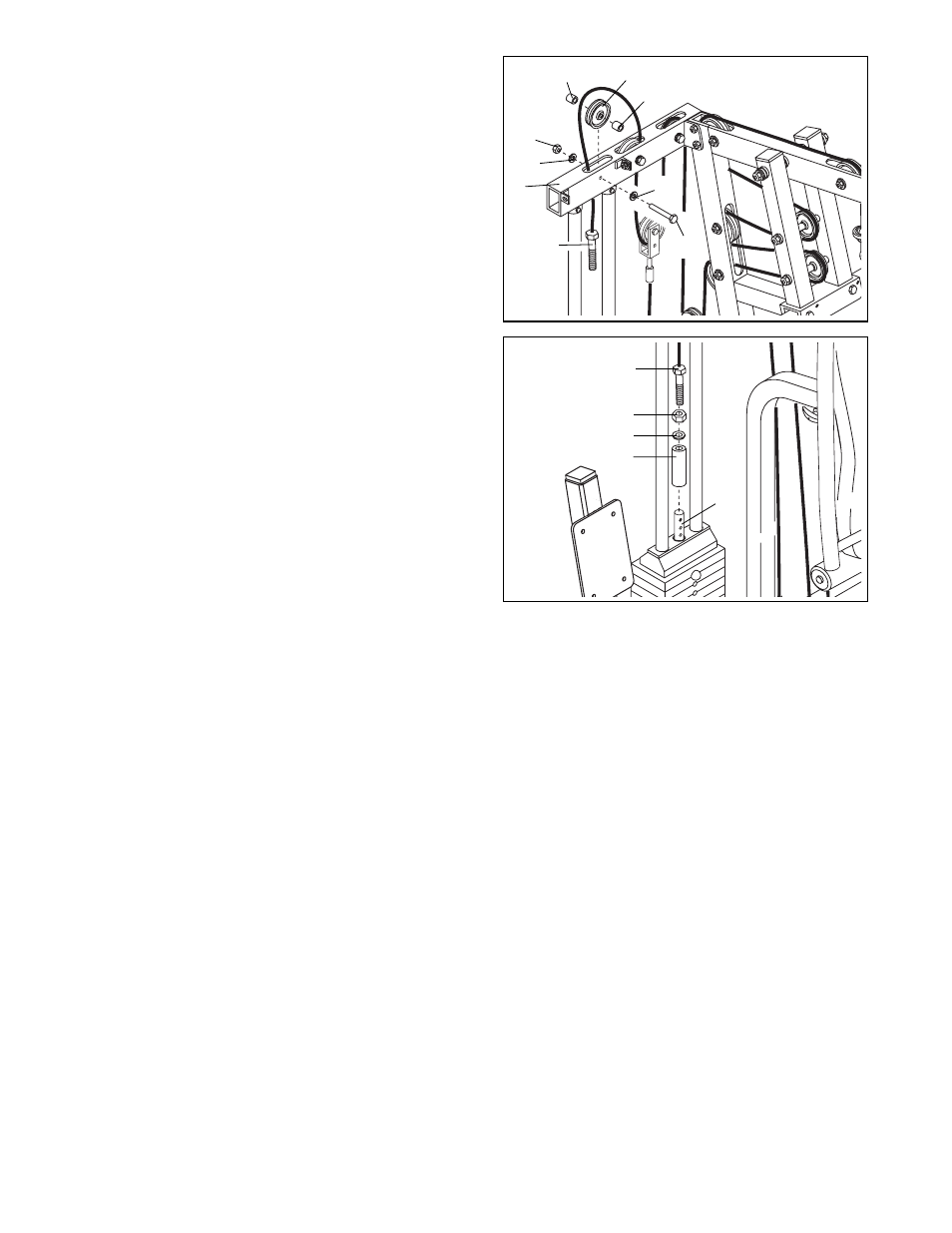

16. Wrap the High Cable (73) around a 4” Pulley (35) in
the direction shown and attach the Pulley inside the
Top Frame (1) with a 3/8” x 2 1/2” Bolt (54), two 3/8”
Flat Washers (55), two 5/8” x 1/2” Pulley Bushings
(42), and a 3/8” Nylon Jamnut (63).
16
17. Thread the 1/2” Plain Nut (68) part way onto the bolt
at the end of the High Cable (73).
Place the 1 1/2” Flat Washer (40) on top of the
Weight Tube (36) and the 5 7/8” Long Bushing (76).
Tighten the bolt at the end of the High Cable (73) into
the threaded hole in the Weight Tube (36).
When all Cables (73, 72 [not shown], 133 [not shown])
are tight, tighten the 1/2” Plain Nut (68) against the
1 1/2” Flat Washer (40).
Go to the Seat And Plate Assembly section on
page 12 and continue with step 18.
