Updating Receiver Firmware Appendix F
SUPERSTAR II User Manual Rev 3 65

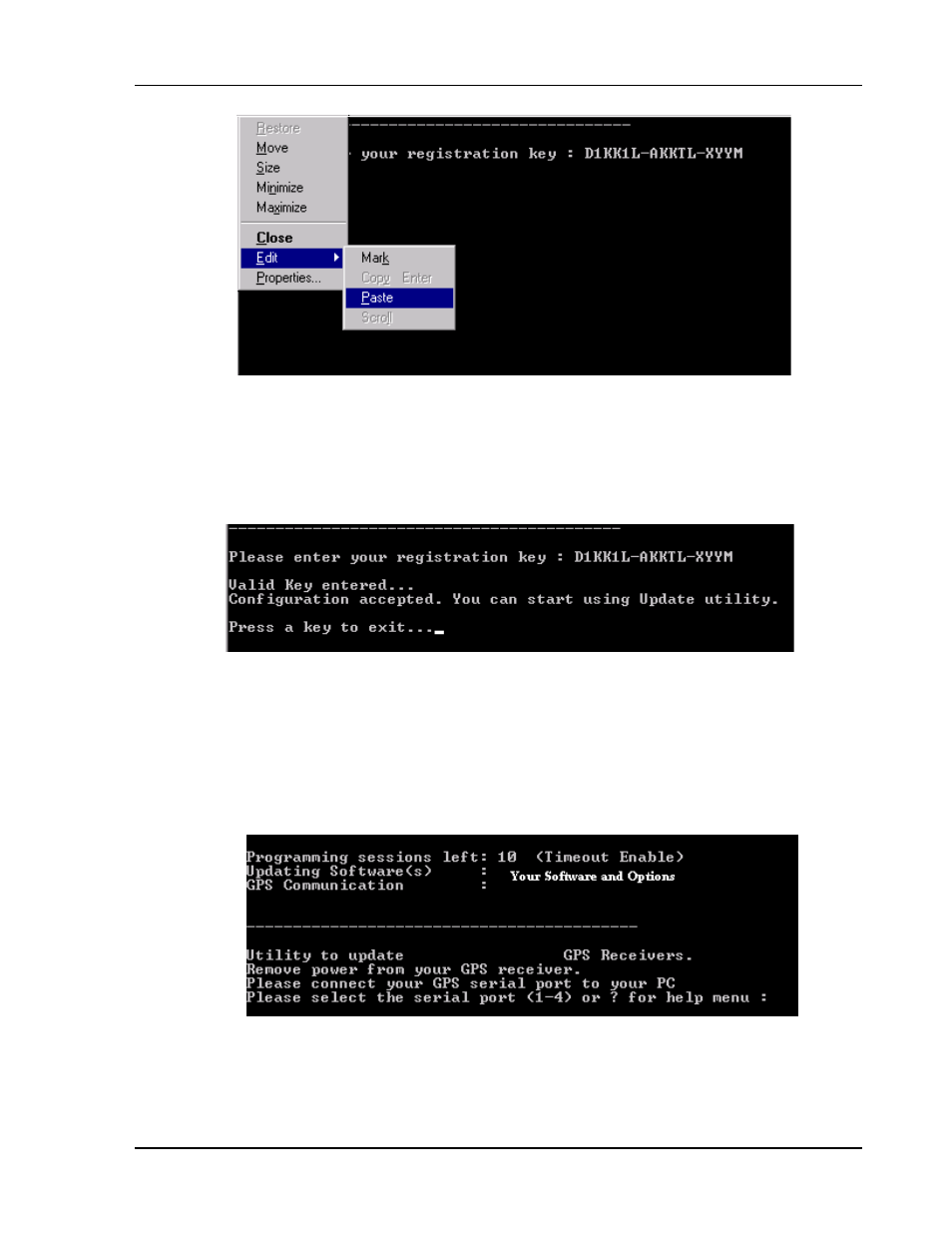

Figure 17: Paste the Registration Key into the DOS Window
F.4 Registration Key Accepted
A message confirms the Update software utility activation once the key has been entered, see Figure 18 below.
Press any key, for example , to exit.
Figure 18: Configuration Accepted
F.5 Starting Software and Options Update
Once activated, the Update utility works until the date or session counter expires. Simply follow the
instructions on the screen. The Update utility prompts you to remove or apply power to the GPS receiver. The
sessions counter decrements every time a programming session is successfully executed. An example is shown
in Figure 19 below.
Figure 19: Update Utility Activation
NovAtel Inc. L1
