FlexPak-SSII Specifications
Appendix B
SUPERSTAR II User Manual Rev 3
51
B.1.3
Cables
B.1.3.1
Automobile Power Adapter Cable (NovAtel part number 01017374)

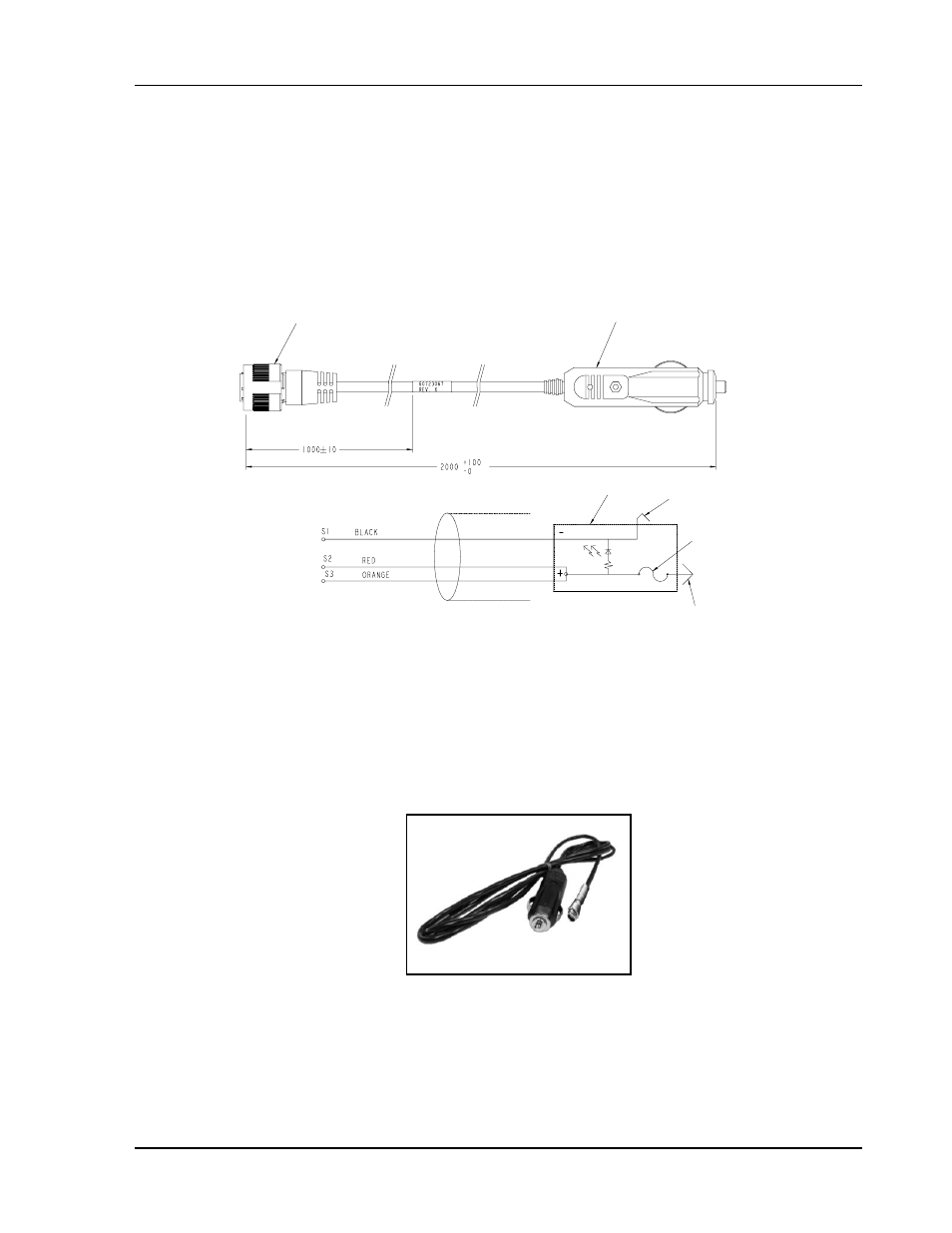

The power adapter cable supplied with the FlexPak provides a convenient means for supplying +12 V DC
while operating from an automobile. The figure below shows the cable and a wiring diagram of the automobile
adapter.
The output of the power adapter uses a 3-pin Deutsch socket (Deutsch part number: 58064-08-98SN). This
cable plugs directly into the PWR port on the front of the FlexPak.
Reference
Description
1
3-pin Deutsch connector
2
Automobile adapter
3
Outer contact
4
3 amp slow-blow fuse
5
Center contact
6
Foil shield
Figure 9: FlexPak Power Cable
1
2
2
3
4
5
6
