22
W415-0429 / C / 11.04.05
This fireplace requires 6 amps, 120 volt and a 60 hz
grounded circuit.
Do NOT use the fireplace if any part has been under
water.
Call a qualified service technician IMMEDIATELY to have
the fireplace inspected for damage to the electrical cir-
cuit.
It is necessary to hard wire this fireplace.
Permanently framing the fireplace with an enclosure, re-
quires the fireplace to be hardwired.
This fireplace must be electrically connected and grounded
in accordance with local codes. In the absence of local
codes, use the current CSA C22.1 CANADIAN ELECTRI-
CAL CODE in Canada or the ANSI/NFPA 70-1996 NATIONAL
ELECTRICAL CODE in the United States.
The plastic coating of the two electrical inlet lines are
marked "H" for hot and "C" for common.
# Part # Description
1 . W 6 6 0 - 0 0 2 9 C o n t r o l l e r
2. W707-0003 Transformer
3. W660-0034 Rocker Switch
4. W062-0005 Blower
5. W750-0117 Light Harness
6. W387-0004 5 Watt Quartz Light
7. W435-0004 12 Volt Motor
8. W350-0126 Receptical (Electrical Box)
9. W387-0003 75 Watt Quartz Bulbs
10. W725-0035 Natural Gas Valve
W725-0034 Propane Valve
11. W750-0122 1 pcs
12. W750-0123 1 pcs
13. W750-0124 1 pcs
14. W750-0134 1 pcs
15. W175-0010 Wire Nut
16. W750-0133 Line In Wire Harness (common)
17. W750-0133 Line In Wire Harness (hot)
18. W750-0135 1 pcs
1 9 . W 7 5 0 - 0 1 3 6 1 pcs
ELECTRICAL CONNECTION
HARD WIRING CONNECTION

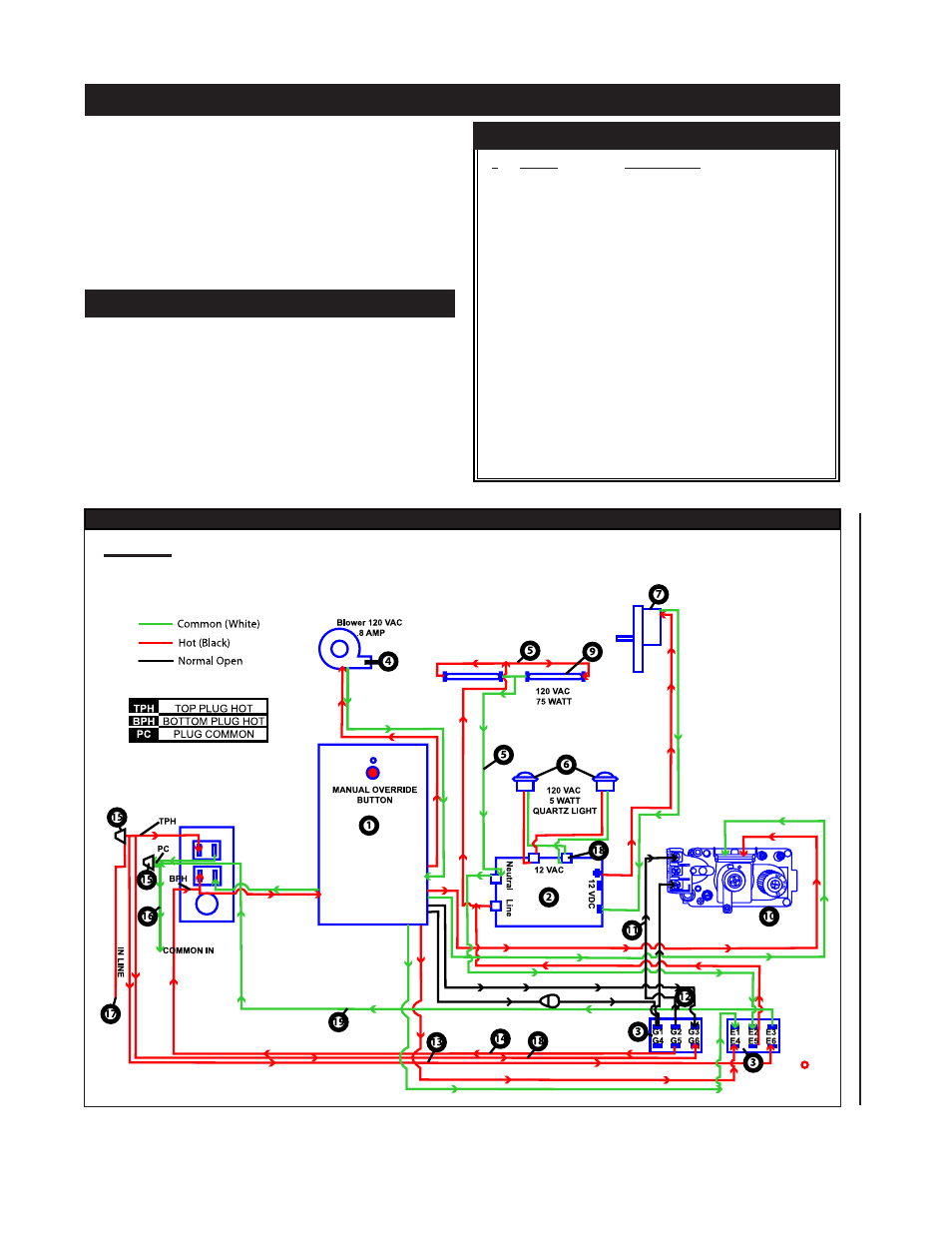

Electric Diagram
ELECTRICAL DIAGRAM LEGEND
FIGURE 53
