Units with touch screen support (optional)
1. Connect the 15HD male connector from a VGA multi-scan monitor to the port labeled MONITOR on the rear of the NTI ST-2U-
TS switch. If a touch-screen type monitor is being used, connect the 9D male serial connector from the touch-screen monitor to
the port in the USER set labeled SERIAL on the rear of the NTI ST-2U-TS switch. (See Fig. 12.)

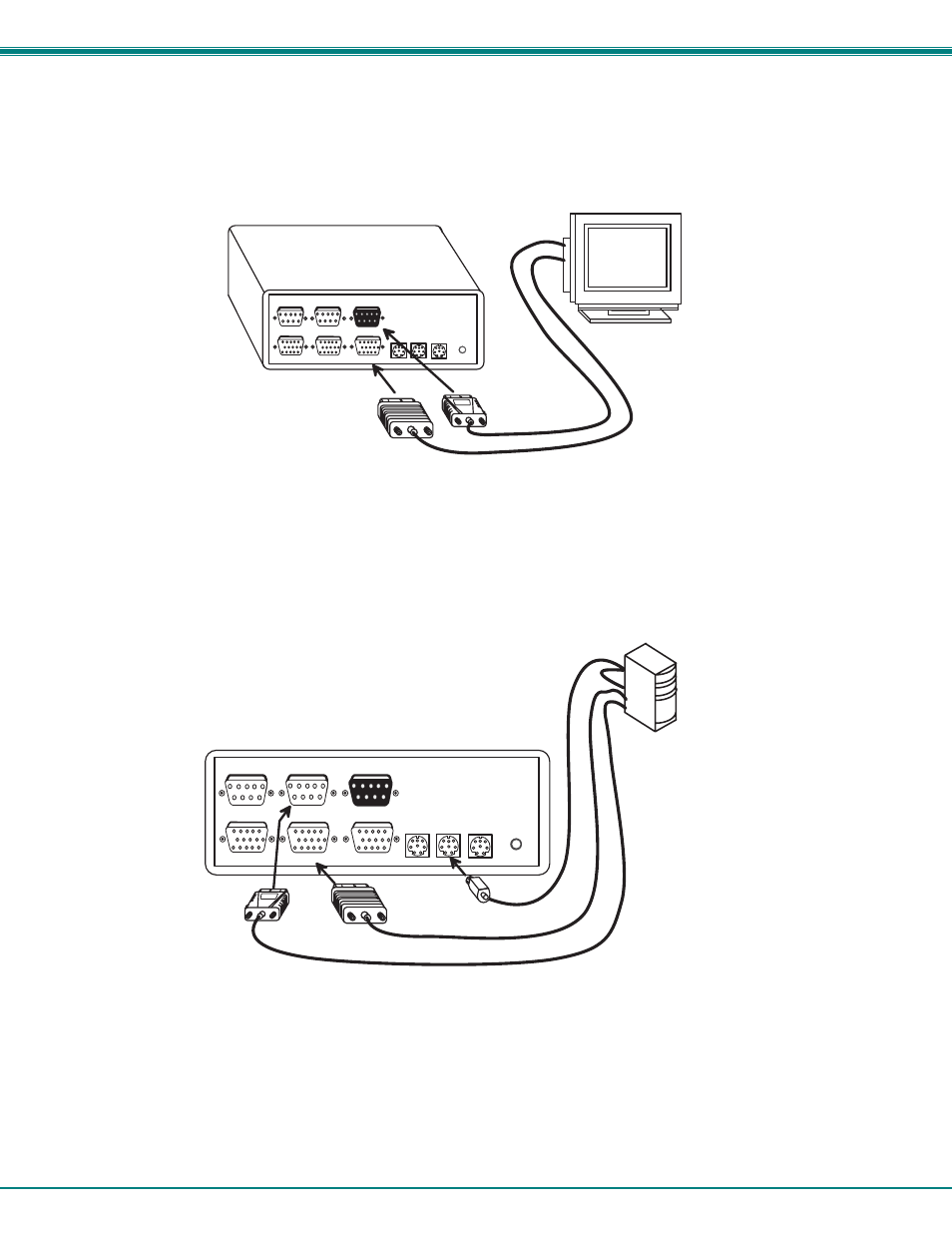

Figure 12- Connect a touch-screen monitor to ST-2U-TS
2. If the CPU is using a touch-screen type monitor, connect the serial cable (MMEXT-xx) from the serial port of the CPU to
the serial port of the ST-2U-TS switch (CPUx-SERIALx) with the same port number as the keyboard and video cables
(See Fig. 13.)
Figure 13- Connect serial device cable from CPU to ST-2U-TS
