Director
32
filter add in_ports=n1.11 action=redir redir_ports=t1.2
filter add in_ports=n1.1-n1.4 action=redir redir_ports=t1.1
XFP Port 1.2
XFP Port 1.1
Network Port 11
Network Port 1
Network Port 4
Network Port 2
Network Port 3
+

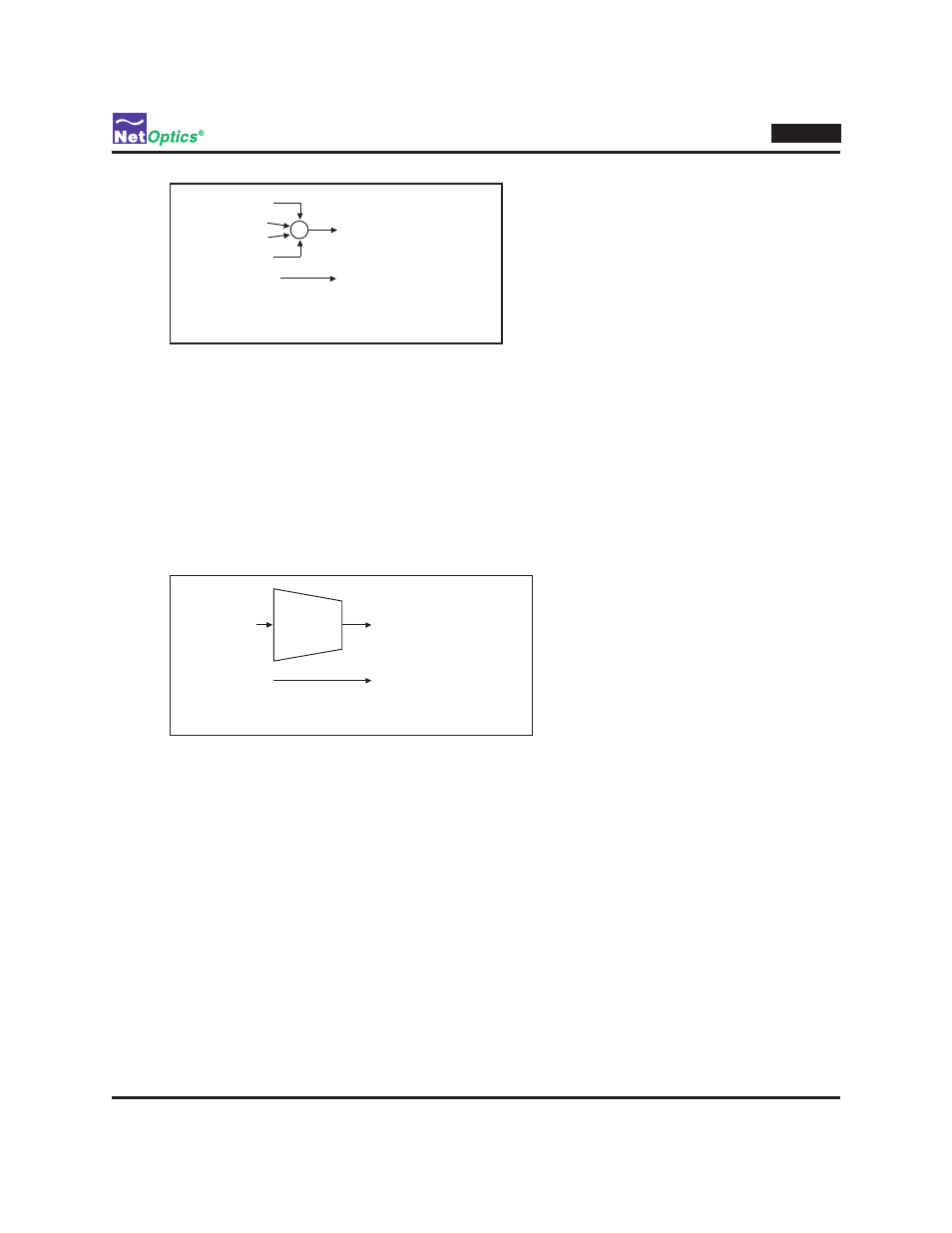

Configurable 10 Gigabit XFP ports used as Monitor ports (with aggregation) Figure 32:
To use one XFP port as a Span port and the other XFP port as a Monitor port:
Enter 1. filter add in_ports=t1.1 ip_proto=6 action=redir redir_ports=m.1. A filter has been defined to select all IPv4
TCP packets from 10 Gigabit Port 1.1 and copy them to Monitor Port 1. 10 Gigabit XFP Port 1.1 is configured as a
Span port.
Enter 2. filter add in_ports=n1.11 action=redir redir_ports=t1.2. A filter has been defined to copy all the traffic from 1
Gigabit Network Port 11 to 10 Gigabit Port 1.2. 10 Gigabit XFP Port 1.2 is configured as a Monitor port.
Enter 3. filter commit. The filters are activated.
filter add in_ports=n1.11 action=redir redir_ports=t1.2
filter add in_ports=t1.1 ip_proto=6 action=redir redir_ports=m.1
XFP Port 1.2 Network Port 11
Monitor Port 1 XFP Port 1.1
Protocol =
TCP
Configurable 10 Gigabit XFP ports used one Span port and one Monitor port Figure 33:
