Director
30
Monitor Port 1 Network Port 5
filter add in_ports=n1.5 ip_proto=6 action=redir redir_ports=m.1
filter add in_ports=n1.5 ip_proto=17 action=redir redir_ports=m.1
Protocol =
TCP
Protocol =
UDP
+

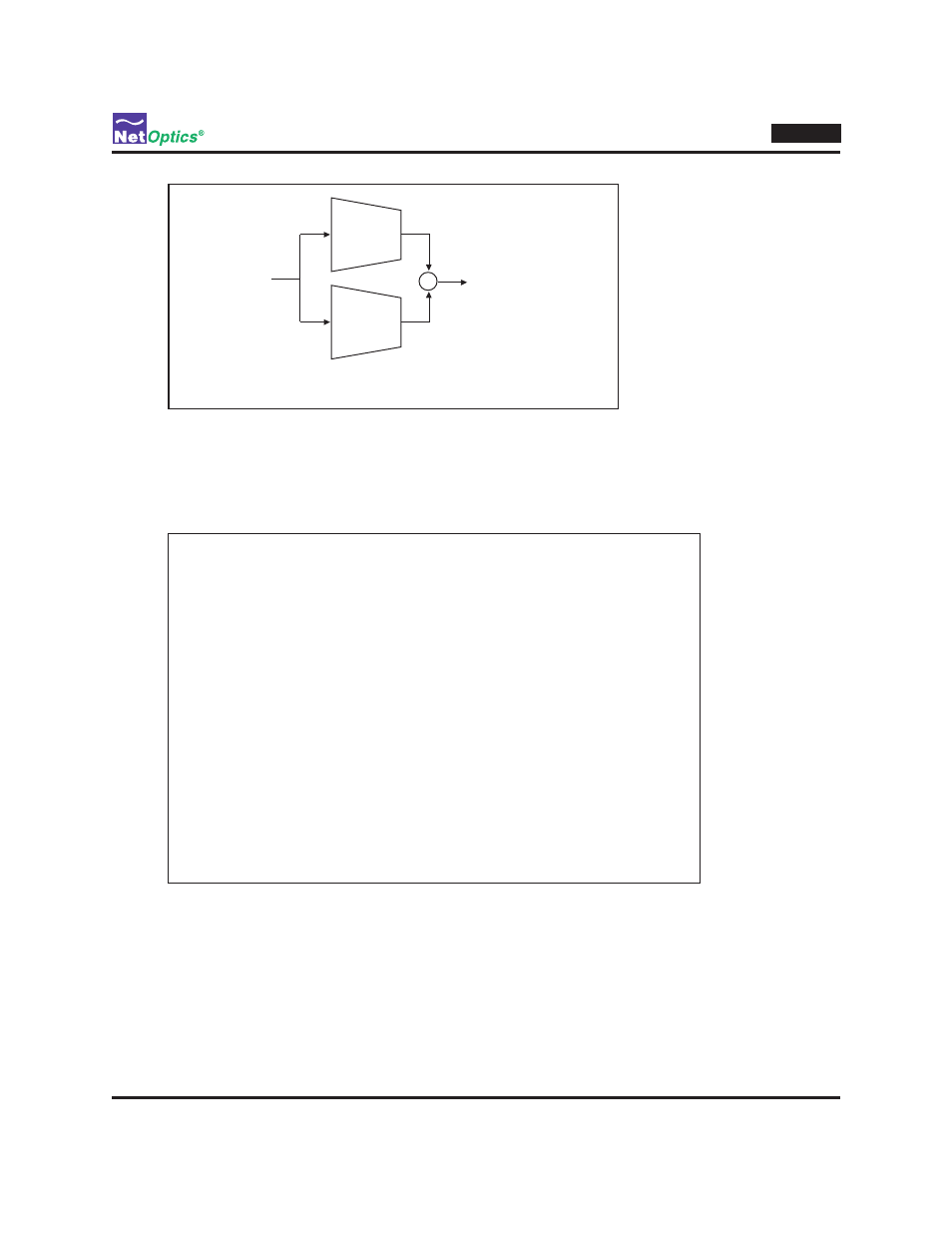

Logical OR filter connection Figure 29:
View filters
To view a list of all pending filters, enter filter list. To view the active filters, enter filter running.
Net Optics> filter list
Filter #1
src_mac=00:00:00:00:00:00 dst_mac=00:00:00:00:00:00
src_ip=0.0.0.0/255.255.255.255,dst_ip=0.0.0.0/255.255.255.255,ip_proto=0000
l4_src_port=0000,l4_dst_port=0000,vlan=0000,action=redir
in_ports=t1.01
redir_ports=t1.02
Filter #2
src_mac=00:00:00:00:00:00 dst_mac=00:00:00:00:00:00
src_ip=0.0.0.0/255.255.255.255,dst_ip=0.0.0.0/255.255.255.255,ip_proto=0000
l4_src_port=0000,l4_dst_port=0000,vlan=0000,action=redir
in_ports=t1.02
redir_ports=t1.01
Filter #3
src_mac=00:00:00:00:00:00 dst_mac=00:00:00:00:00:00
src_ip=0.0.0.0/255.255.255.255,dst_ip=0.0.0.0/255.255.255.255,ip_proto=0000
l4_src_port=0000,l4_dst_port=0000,vlan=0000,action=redir
in_ports=n1.01,n1.02,n1.03,n1.04
redir_ports=m.01,m.10
IPv4 filter resource utilization: 2%
Net Optics>
Filter list command Figure 30:
Tip! ___________________________________________________________________________________________________
The ID number (Filter #) shown above each filter in the filter list is the ID that applies for filter del id= and
filter ins id= commands, because all three commands act on the pending filter list. Do not use the IDs in a
filter running list as the reference for filter del or filter ins commands.
________________________________________________________________________________________________________
