6

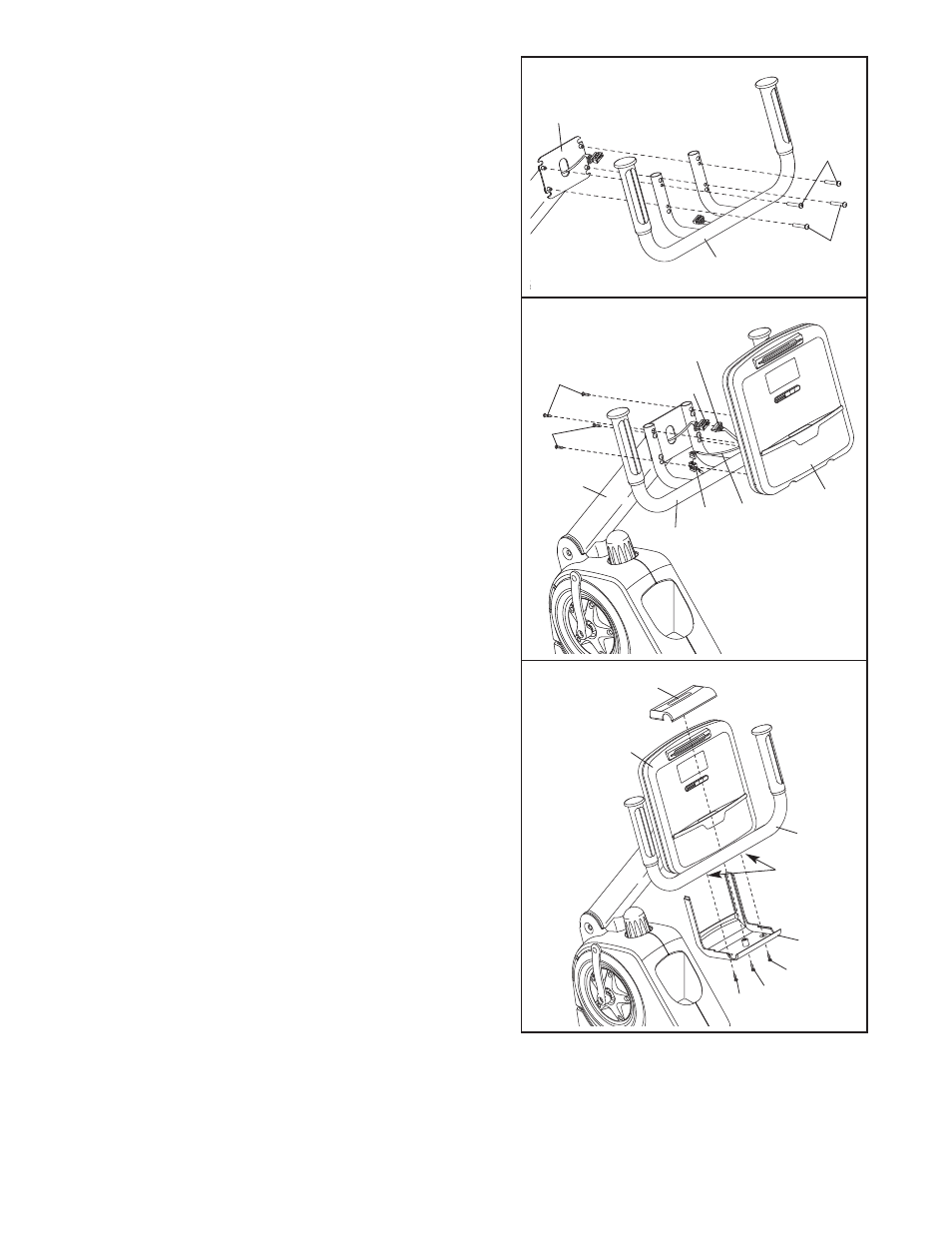

7. While another person holds the Console (4) near the
Handlebar (39), connect the console wire harness to
the Upper Wire Harness (42). Next, connect the pulse
wire on the Console to the Pulse Wire (51) in the
Handlebar. Note: The remaining wire (not shown) on
the Console is used during the manufacturing process;
disregard this wire.
Insert the excess wiring downward into the Upright (2).
Attach the Console (4) to the Handlebar (39) and the
Upright with four M4 x 16mm Round Head
Screws (80). Be careful to avoid pinching the
Wires (42, 51).
2
39
7
6. Attach the Handlebar (39) to the Upright (2) with four
M6 x 30mm Button Screws (37).
8. Slide the Bottom Handlebar Cover (18) into the slots in
the bottom of the Console (4). Attach the Bottom
Handlebar Cover to the Handlebar (39) and the Top
Handlebar Cover (84) with two M4 x 16mm Round
Head Screws (80) and one M4 x 12mm Screw (25).
6
4
80
37
37
39
2
51
Console Wire
Harness
Pulse
Wire
80
Avoid pinching
the Wires (42, 51)
during this step.
42
8
84
18
25
80
80
39
4
Slots
