Napoleon Fireplaces GVFL18N - Manual (Page 10)

W415-0530 / 12.14.05
10
½"
LOGO
½"
LOG
O
PHAZER TM logs, exclusive to Napoleon Fireplaces, provide
a unique and realistic glowing effect that is different in every
installation. These logs are fuel specific. Do not
interchange. Refer to the replacement parts list.
Failure to follow these log placement instructions may
cause sooting.

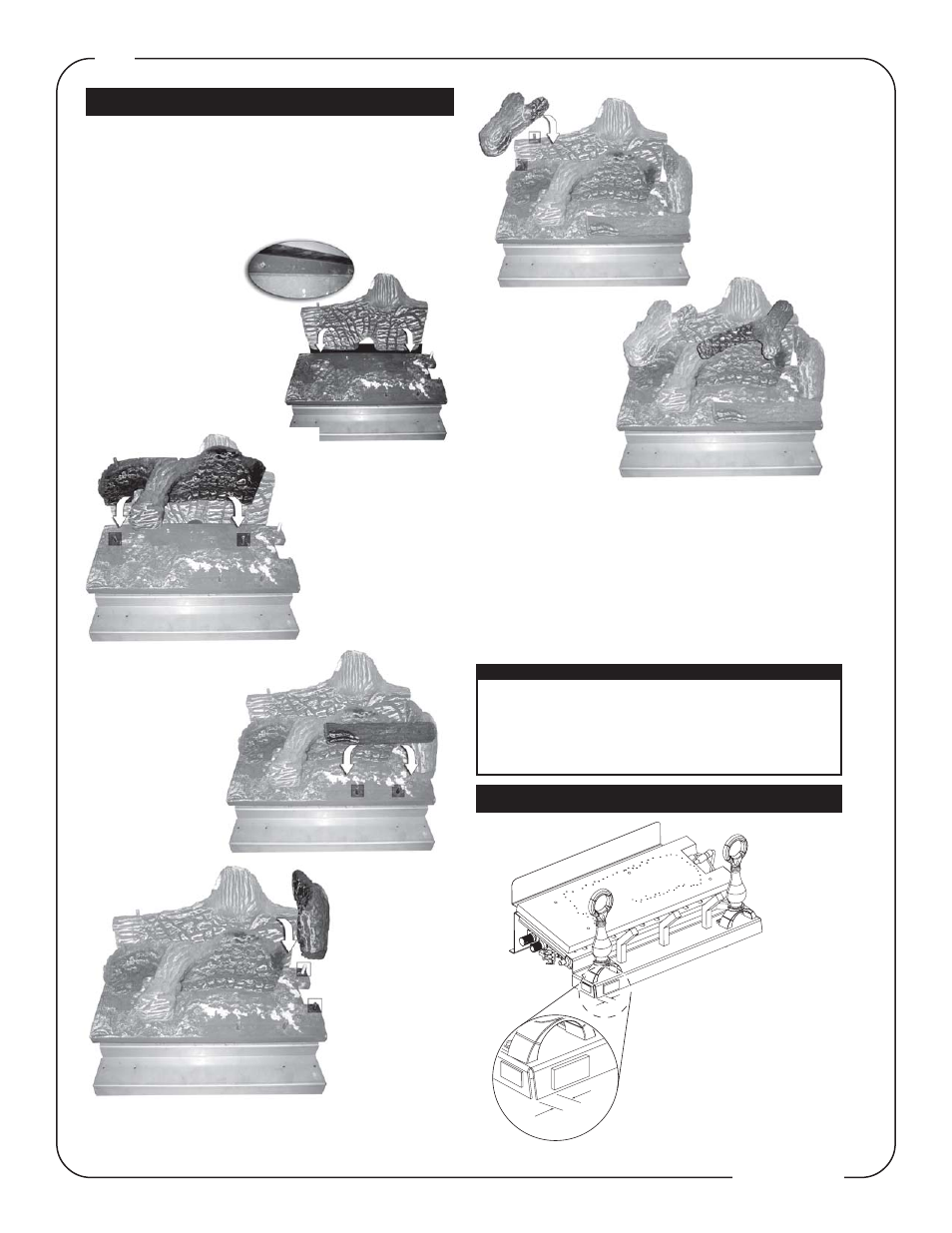

1. Place the rear log #1
onto the locating studs
on the rear log support.
2. Position the holes on
the bottom of log #2 onto
the pins shown.
3. Position the holes
on the bottom of log
#3 onto the pins
shown, with the
charred face forward.
4. Position the
holes on the
bottom of log #4
onto the pins
shown, with the
charred face
inward.
5. Position the holes on the
bottom of #5 on the pin on
the left end of log #1 and
the pin on the left end of
log #2.
6. Place the end of log
#6 on the right end
of log #1. The fork in
the log should
straddle the knot on
top of the log
#2.
.
Log colours
may vary. During the initial use of the fire-
place, the colours will become more uniform
as colour pigments burn in during the heat
activated curing process.
Positioning the logs improperly will cause flame im-
pingement and carboning.
Blocked burner ports can cause an incorrect flame pattern,
carbon deposits and delayed ignition. PHAZER
TM logs glow
when exposed to direct flame. Use only certified PHAZER TM
logs available from your Napoleon dealer.
LOG PLACEMENT
LOGO PLACEMENT
Remove the backing of the
logo supplied. Centre the logo
on the front of the appliance,
½” in from the left side, as
shown.
WARNING
Failure to position the parts in accordance with
these diagrams or failure to use only parts specifi-
cally approved with this heater may result in prop-
erty damage or personal injury.
