15
STALE AIR
TO OUTSIDE
STALE AIR
FROM HOUSE
FRESH AIR
TO INSIDE
14 3 / 4 "
(375)
19"
(483)
* All Duct Connections 6"(150mm)
FILTERS
*NOTE: Front clearance
of 25 inches (635 mm)
is recommended
for ser vicing unit.
MOTOR
31"
(787mm)
FRESH AIR
FROM OUTSIDE
DAMPER
DEFROST
PORT
CONDENSATE DRAINS
ENTHALPIC
CORE
BALANCING DAMPER
OPTIONS
99-104
Digital Electronic Timer - 20/40/60 min. (3 wire)
99-109 Air Sentry™ Air Quality Monitor designed to accept remotely
mounted Control Pad.
99-186 Weatherhoods, Two - 6” (150mm) c/w 1/4” (6mm) mesh
screen
WARRANTY
Units carry a 5 year warranty on the energy recovery core and replace-
ment parts.
ERVs are not recommended for regions where the design temperature is
below 25°F (-4°C)
TI-200ERVD
0904
Air Flo
w (cfm)
200ERVD FANCURVE
200
175
150
125
100
75
50
25
0
0.3 0.4 0.5 0.6 0.7 0.8 0.9
Static Pressure (in H2O)
1.0
HIGH SPEED *
MEDIUM HIGH SPEED
MEDIUM SPEED
MEDIUM LOW SPEED
LOW SPEED
4
5
3
2
1
5
4
3
2
1
? * Manufacturers Data
All units conform to
CSA and UL standards.
Model 200ERVD

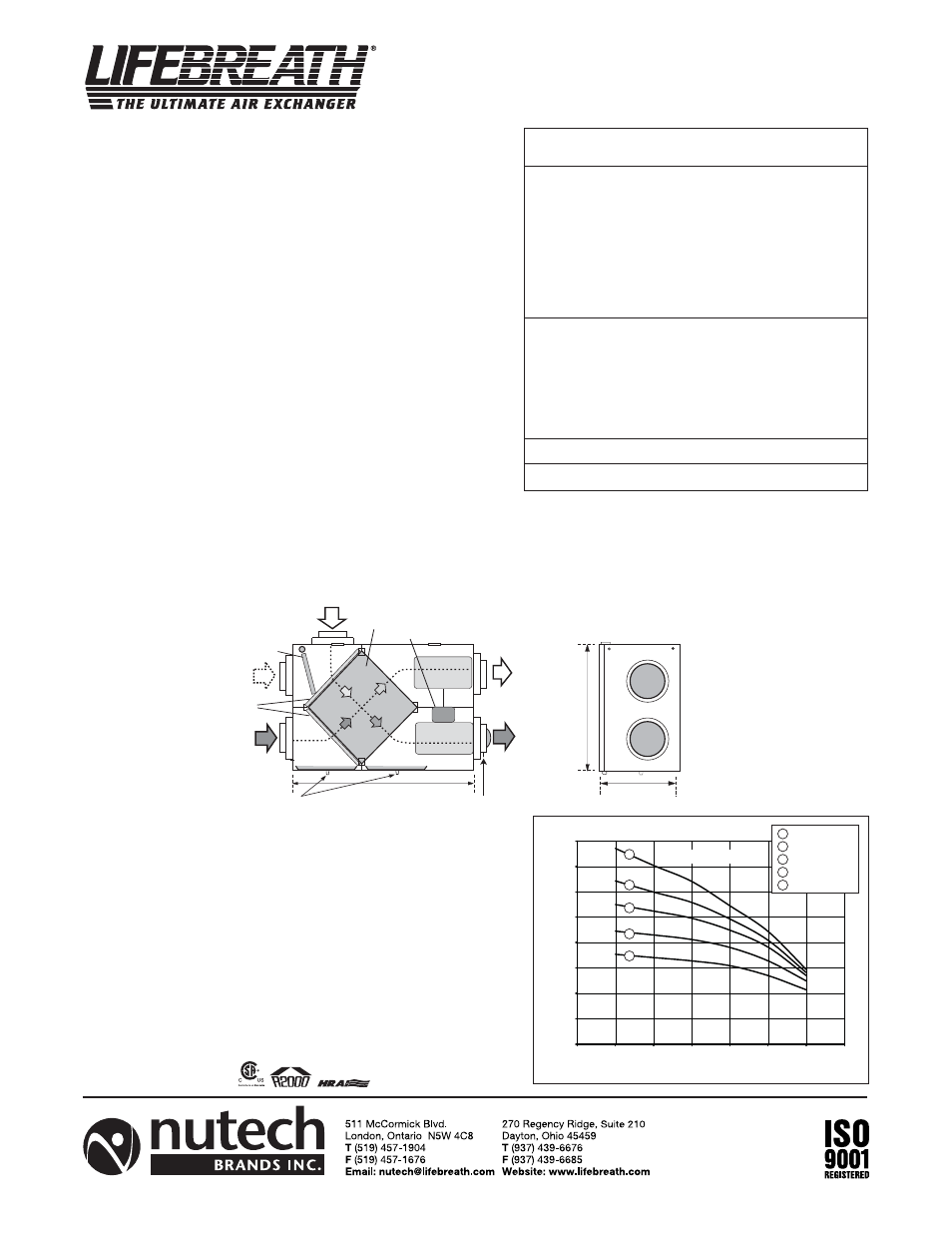

DIMENSIONS 200ERVD
inches (mm )
PERFORMANCE
Net supply airflow in cfm (L/s) against external static pressure
E.S.P cfm L/s
@ 0.1” (25 Pa) 232 (109)
@ 0.2” (50 Pa) 223 (105)
@ 0.3” (75 Pa) 215 (102)
@ 0.4” (100 Pa) 195 (92)
@ 0.5” (125 Pa) 189 (89)
Sensible Effectiveness
@ 127 cfm (60 L/s)
(CSA C439M)
67%
Sensible Efficiency 32°F (0 O C) 60%
Total Efficiency 55%
VAC @ 60HZ 120
WATTS / Low speed 87
ENGINEERING DATA
LATENT RECOVERY/MOISTURE TRANSFER CORE
The cross-flow energy recovery core transfers heat and water vapour
between the two airstreams. It is easily removed for cleaning or service.
MOTORS AND BLOWERS
Each air stream has one centrifugal blower driven by a common PSC motor.
5 speed fan operation. High speed - 120 VAC.
FILTERS
Washable air filters in exhaust and supply air streams.
MOUNTING THE ERV
Four threaded inserts at corners of case designed to accept four PVC rein-
forced polyester straps that are supplied with the unit.
DEFROST
Damper defrost system.
DEHUMIDISTAT
Adjustable internal dehumidistat.
CASE
Twenty gauge prepainted galvanized steel (G60) for superior corrosion resis-
tance. Insulated to prevent exterior condensation.
DRAIN CONNECTIONS
Two - 1/2” (12mm) O.D.
CONTROLS
ControlAir 15 - Standby/ON mode, 20 ON/ 40 OFF mode, Recirculation mode
(on compatible units), (each mode has 5 speeds). Control pad can be
removed from HRV and remotely mounted.
Weight 63 lbs. (28.7 kg) Shipping Weight 65 lbs. (29.6 kg)
