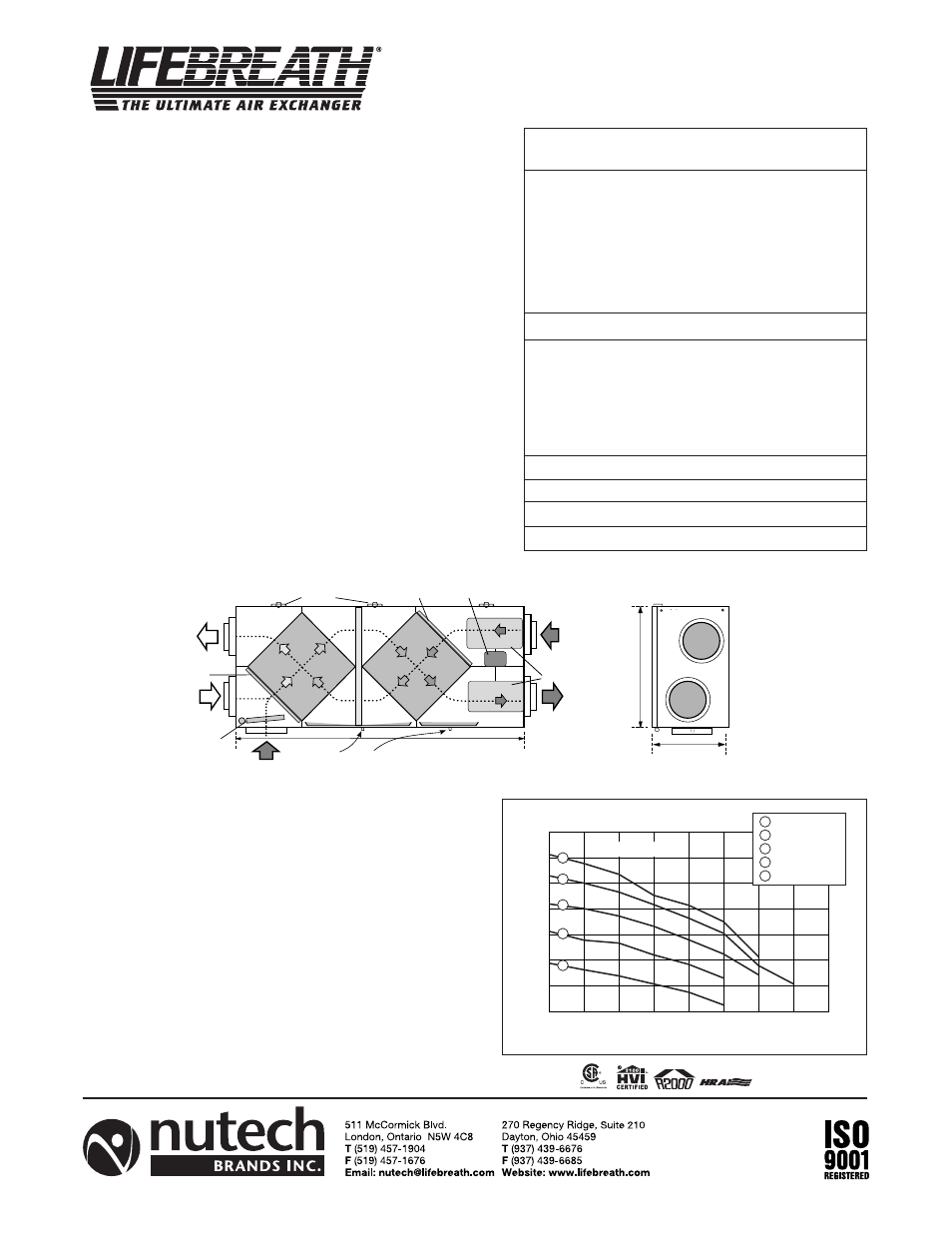

Page 12: Engineering data
12
49 "
(1245)
STALE AIR
TO OUTSIDE
FRESH AIR
TO INSIDE
14 3/4"
(375)
19"
(483)
Ports
7" (178 mm)
CONDENSATE
DRAINS
BLOWERS
*NOTE:
Front clearance
of 25 inches (635 mm)
is recommended
for servicing unit.
MOTOR
FRESH AIR
FROM OUTSIDE
STALE AIR
FROM INSIDE
FILTER
DEFROST
DAMPER
DEFROST AIR
FROM INSIDE
FILTER
Ports
6" (150 mm)
METAL CLASPS
OPTIONS
99-104
Digital Electronic Timer - 20/40/60 min.
99-109
Air Sentry™ Air Quality Monitor designed to accept remotely
mounted Control Pad
99-250
Ventilation Dehumidistat - Dehumidistat designed to accept
remotely mounted Control Pad.
99-160
Duct Heater w/ Electronic SCR Thermostat, 1 Kw, 7” (178
mm)
99-161
Duct Heater w/ Electronic SCR Thermostat, 2 Kw, 7” (178
mm)
99-186
Weatherhoods, Two - 6” (150 mm) c/w 1/4” (6mm)
mesh screen
WARRANTY
Units carry a LIFETIME warranty on the heat recovery core and a 5 year
replacement parts warranty.
TI-101-NE
0904
ENGINEERING DATA
THERMALLY CONDUCTIVE, PATENTED ALUMINUM CORE
The cross-flow heat recovery core transfers heat between the two airstreams.
The two cores are arranged for highly efficient counter current airflow.
MOTORS AND BLOWERS
Each air stream has one centrifugal blower driven by a common PSC motor.
5 speed fan operation. 120 VAC, 1.5 Amps.
FILTERS
Washable air filters in exhaust and supply air streams.
MOUNTING THE HRV
Four threaded inserts at corners of case designed to accept four reinforced
polyester straps that are supplied with the unit.
DEFROST
Damper defrost system.
DEHUMIDISTAT
Adjustable Internal Dehumidistat.
CASE
Twenty gauge prepainted galvanized steel (G60) for superior corrosion resis-
tance. Insulated to prevent exterior condensation. Drain connections 2 - 1/2"
(12 mm) OD.
CONTROLS
ControlAir 15 - Standby/ON mode, 20 ON/ 40 OFF mode, Recirculation mode
(on compatible units), (each mode has 5 speeds). Control pad can be
removed from HRV and remotely mounted.
Weight 106 lbs. (48 kg) Shipping Weight 108 lbs. (49 kg)
PERFORMANCE
HVI CERTIFIED
Net supply airflow in cfm (L/s) against external static pressure
E.S.P
cfm
L/s
@ 0.1” (25 Pa)
203
(96)
@ 0.2” (50 Pa)
191
(90)
@ 0.3” (75 Pa)
182
(86)
@ 0.4” (100 Pa)
167
(79)
@ 0.5” (125 Pa)
155
(73)
Maximum Temperature Recovery
88%
Sensible Effectiveness
@ 117 cfm (55 L/s)
(CSA C439M)
88%
Sensible Efficiency
@ 117 cfm (55 L/s)
32
O
F (0°C)
80%
Sensible Efficiency
@ 117 cfm (55 L/s)
-13°F (-25
O
C)
77%
VAC @ 60HZ
120
WATTS / Low speed
100
WATTS / High speed
173
Amp rating
1.5
195DCS FANCURVE
225
175
200
100
75
125
150
50
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
Air Flo
w (cfm)
Static Pressure (inH
2
0)
HIGH SPEED
*
MEDIUM HIGH SPEED
MEDIUM SPEED
MEDIUM LOW SPEED
LOW SPEED
4
5
3
2
1
4
3
2
1
5
*
Manufacturers Data
All units conform to
CSA and UL standards.
Model 195DCS
DIMENSIONS 195DCS
inches (mm
)
