Vent framing dimensions – Napoleon Fireplaces BGD40-P User Manual
Page 18
18
W415-0299 / C / 03.12.03
There must be a minimum of 1" clearance to combustibles
when framing around all venting options. See pages 14-17.

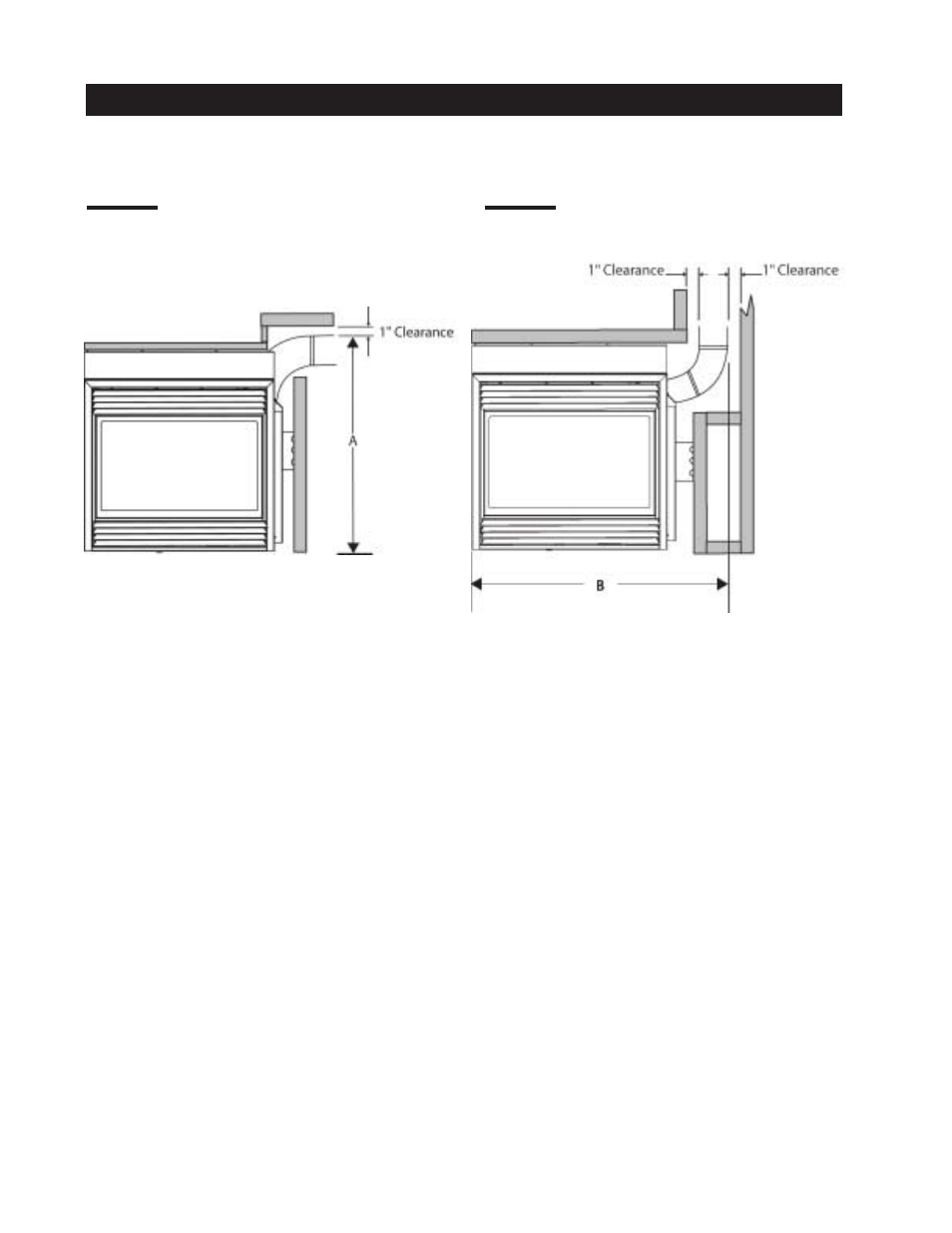

FIGURE 26
FIGURE 27
Horizontal Vent Off Fireplace
Vertical Vent Off Fireplace
A = 42" using flexible vent components.
A = 38½" using Wolf Steel rigid vent components.
B = 45" using flexible vent components.
B = 42½" using Wolf Steel rigid vent components.
VENT FRAMING DIMENSIONS
