Page 27
20
PC CARD
R AUDIO IN L
AC IN
VIDEO IN
AUDIO OUT
S-VIDEO IN PC CONTROL
COMPUTER 1 IN
COMPUTER 2 IN
MONITOR OUT
AUDIO IN
USB
LAN
AUDIO IN
L
R
AUDIO OUT
L
R
Component
Y
Cb
Cr
COMPUTER 1 IN
2. Installation and Connections
You can connect your projector to a DVD player with component output or Video output. To do so, simply:
1. Turn off the power to your projector and DVD player.
2. If your DVD player has a component video (Y,Cb,Cr) output, use a commercially available component video cable
(RCA
ן3) and the optional 15-pin-to-RCA (female)ן3 cable to connect your DVD player to the COMPUTER IN
connector on the projector.
For a DVD player without component video (Y,Cb,Cr) output, use an S-Video cable (not provided) to connect an S-
Video output of the DVD player to the Video Input of the projector.
3. Connect the supplied power cable. See page
4. Turn on the projector and DVD player.
A component signal will be automatically displayed. If not, from the menu, select [Setup]
→ [Options] → [Signal
Select]
→ [Computer 1 (or 2)] → [Component].
NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements.

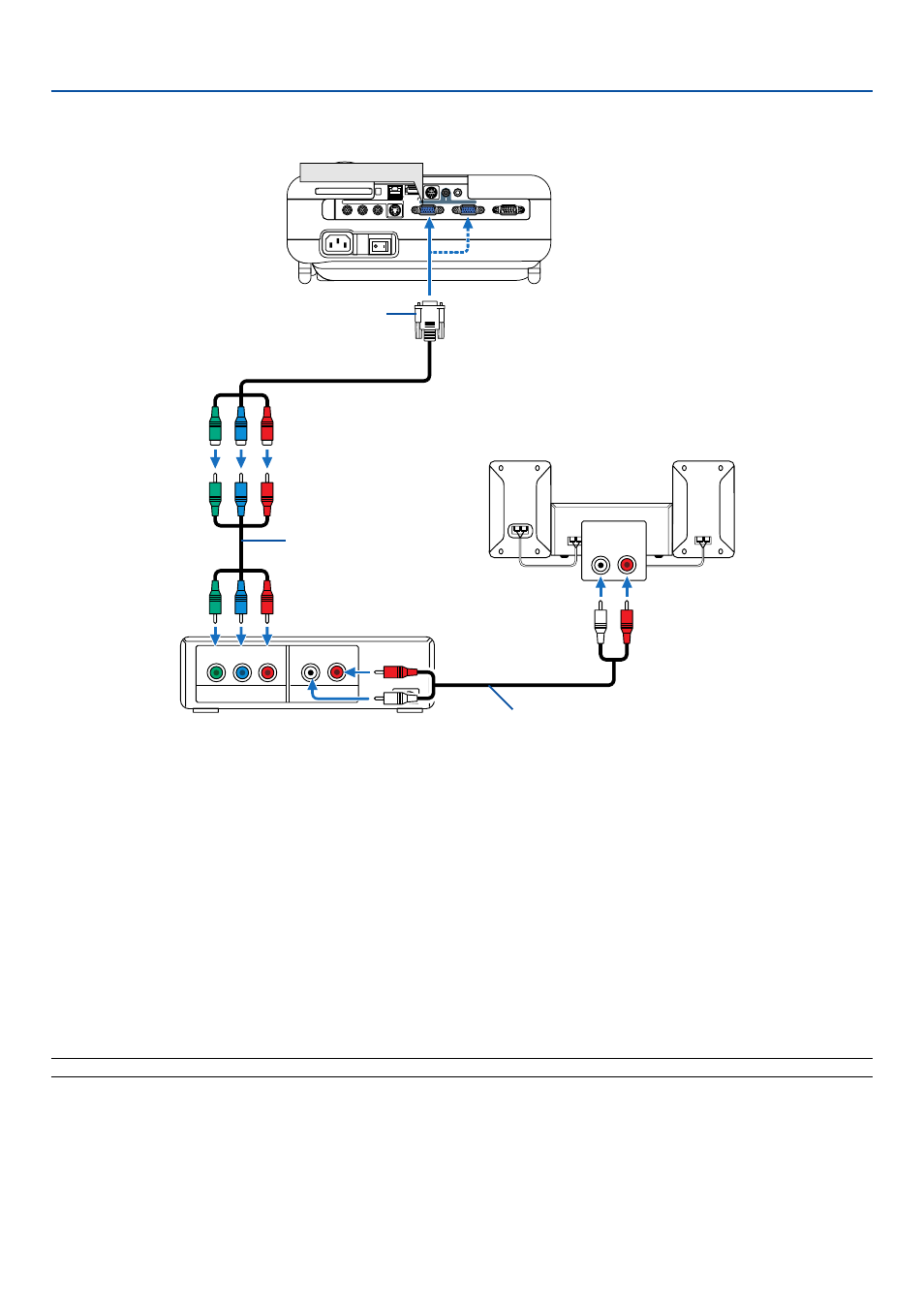

Connecting Your DVD Player with Component Output
DVD player
Audio Equipment
Audio cable (not supplied)
Optional 15-pin - to - RCA (female)
ן
3 cable
(ADP-CV1)
Component video RCA
ן
3
cable (not supplied)
