24
W415-0299 / F / 01.16.07

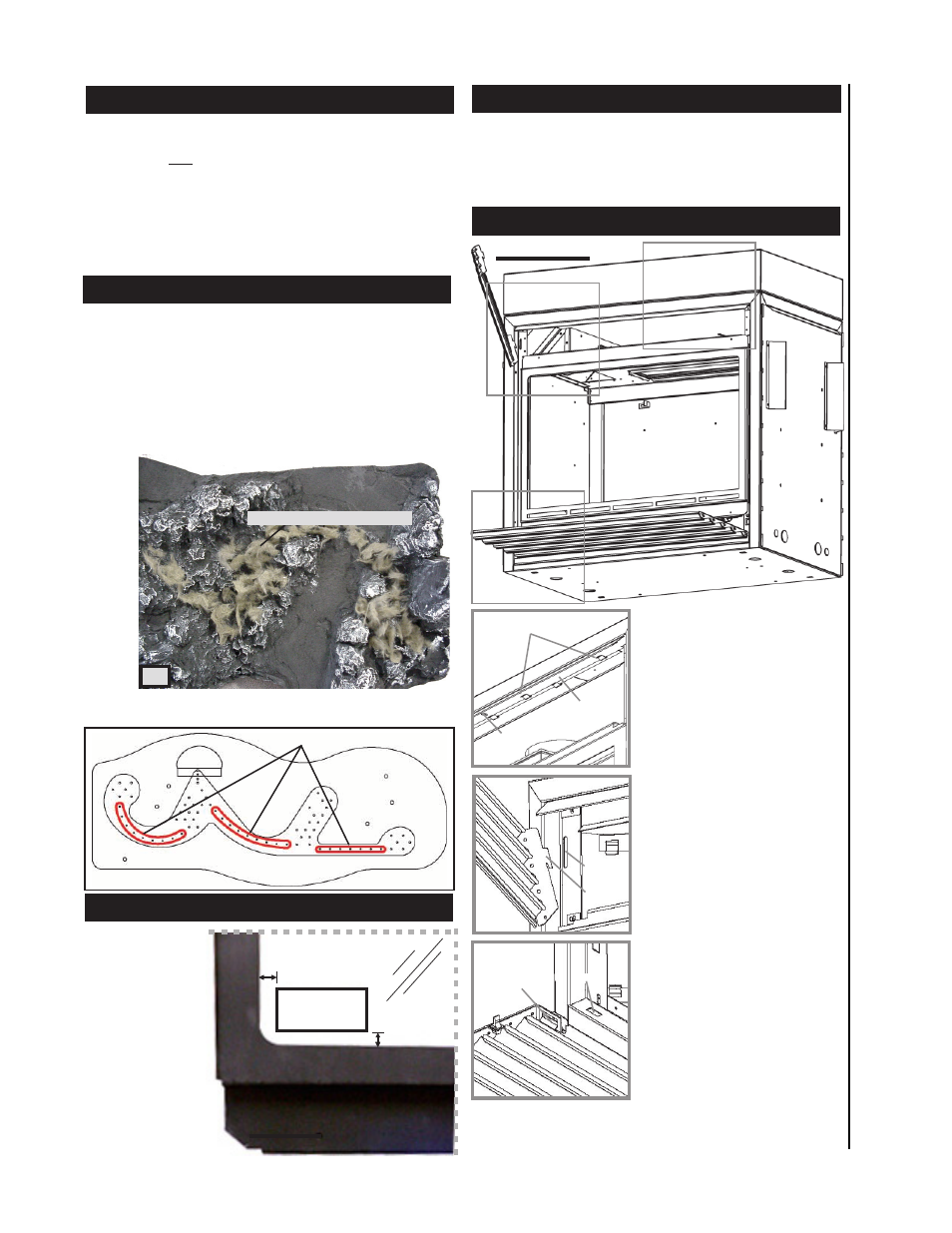

L36 LOUVRE INSTALLATION
FIGURE 54 a-c
HOOD
Attach the hood by pressing the
top flange into the clips along
the top of the louvre opening.
Secure using a screw through
the centre slot.
LOWER LOUVRES
Insert the hinge clips into the
slots located at the bottom left
and right corners of the unit.
To remove the louvres, pull the
back tabs of the clips forward,
while pushing the louvre assem-
bly back. Lift the clip.
UPPER LOUVRES
Insert the louvre tabs into the
slots located at the top left and
right corners of the unit.
SLOT
TA B
B
C
HINGE
CLIP
SLOT
A
B
C
A
CLIPS
C E N T R E
SLOT
FLANGE
Tear the embers into small pieces and place on the ported
area of the burner. Care should be taken to shred the
embers into thin, small irregular pieces as only the ex-
posed edges of the fibre hairs will glow. The ember mate-
rial will only glow when exposed to direct flame; however,
care should be taken to not block the burner ports. Blocked
burner ports can cause an incorrect flame pattern, carbon
deposits and delayed ignition. PHAZER
TM logs glow when
exposed to direct flame.
Randomly place the embers around the bottom brick pan-
els in a realistic manner but not in contact with the flames.
Keep ember dust away from burner ports to avoid plugging
them.
Fine dust found in bottom of bag not to be used. PHAZER TM
logs, and embers glow when exposed to direct flame. Use
only certified PHAZER
TM logs, glowing embers and char-
coal embers available from your Napoleon / Wolf Steel Ltd.
dealer.
47
GLOWING EMBERS
DOOR OPENING AND CLOSING: The upper louvres
must be removed to allow the door to be opened or closed.
To access the lower door latch, open the valve control
door. Release the top and bottom door latches, located at
the right side of the door.
GLOWING EMBERS
CHARCOAL EMBERS
DOOR INSTALLATION
Remove the
backing of the
logo supplied and
place on the glass
viewing door, as
indicated.
LOGO
½"
½"
LOGO PLACEMENT
FIGURE 48
Ensure that glowing embers sufficiently cover the carry over
ports, highlighted below, to achieve maximum glow.
CARRY OVER PORTS
