Vent framing dimensions – Napoleon Fireplaces BGD40-N User Manual
Page 18
18
W415-0299 / F / 01.16.07
There must be a minimum of 1" clearance to combustibles
when framing around all venting options. See pages 10-13.

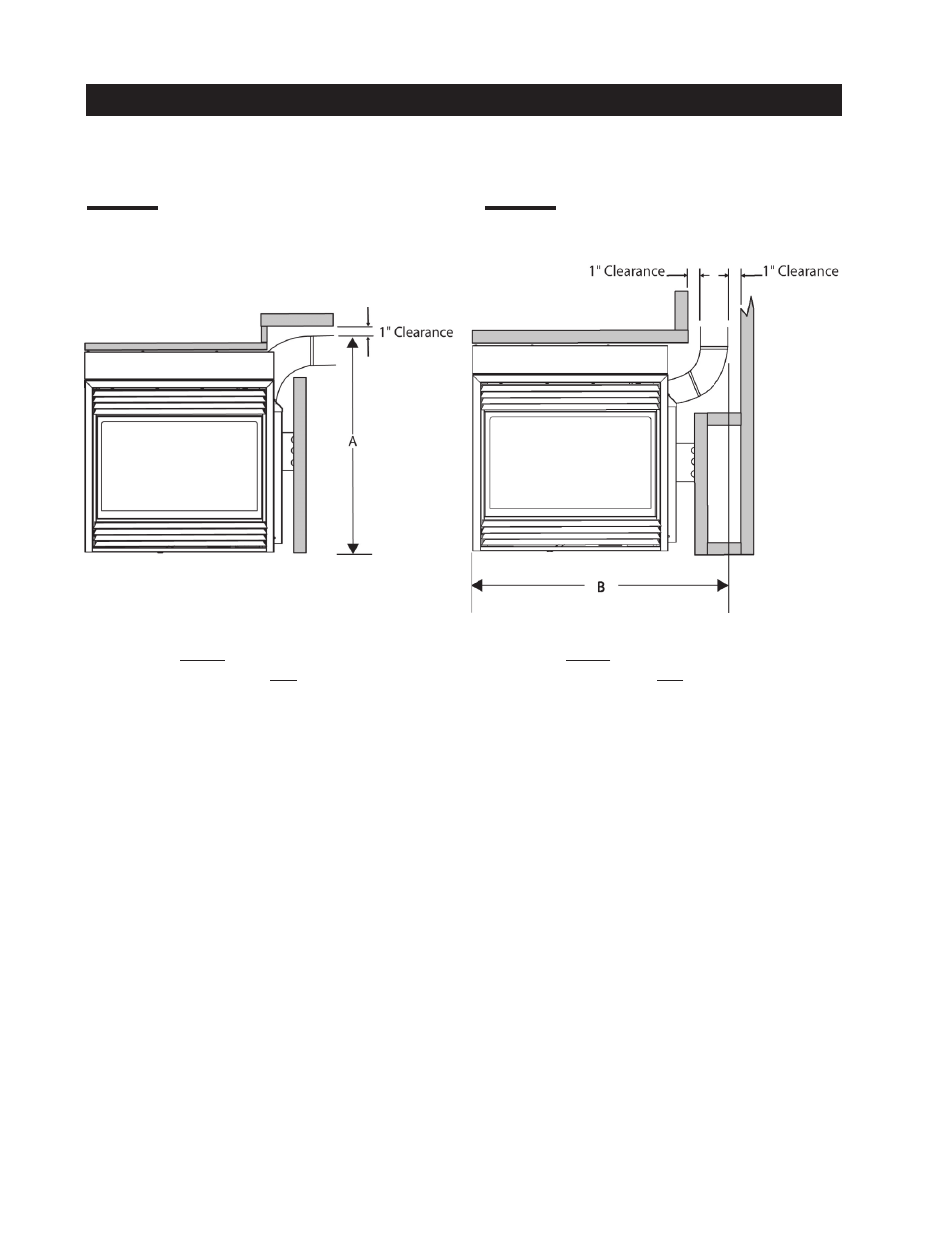

FIGURE 26
FIGURE 27
Horizontal Vent Off Fireplace
Vertical Vent Off Fireplace
A = 42" using flexible vent components.
A = 38½" using Wolf Steel's rigid vent components.
B = 45" using flexible vent components.
B = 42½" using Wolf Steel's rigid vent components.
VENT FRAMING DIMENSIONS
