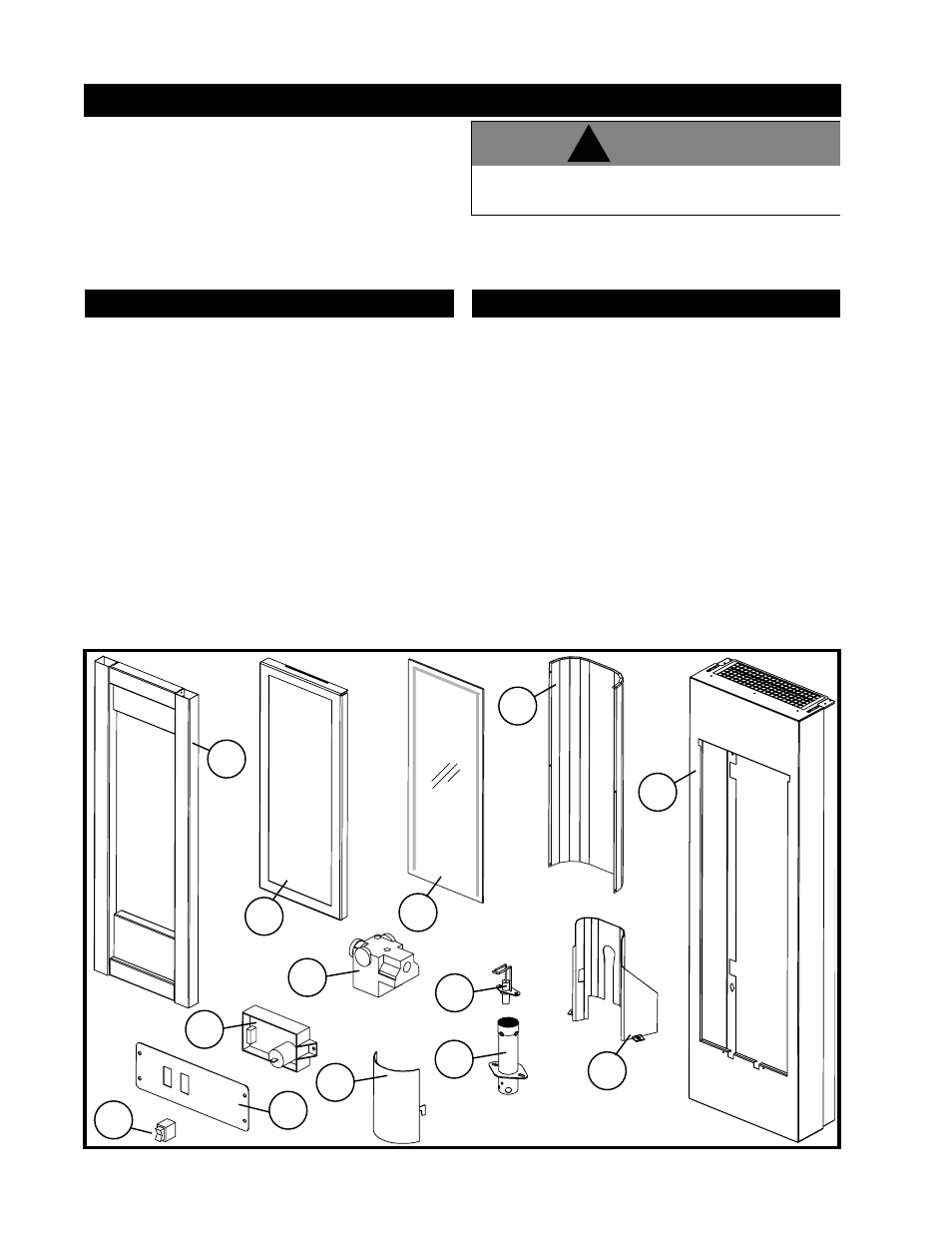

# PART NO. DESCRIPTION
1 W225-0223 DOOR FRAME
2* W562-0008 DOOR GASKET
3 W010-1959 GLASS C / W GASKET
4* W300-0110 GLASS
5 W100-0111 BURNER
6 W357-0006 IGNITOR
7 W190-0026 CONTROL,
MODULE
8* W750-0202 WIRE HARNESS
9* W750-0184 IGNITION CABLE
10 W200-0263 IGNITOR COVER
11 W200-0262 BURNER COVER
12 W725-0052 NATURAL GAS VALVE - 3.5” W.C.
12 W725-0053 PROPANE GAS VALVE - 10.0” W.C.
13* W455-0085 #56 NATURAL GAS ORIFICE
13* W455-0086 #69 PROPANE GAS ORIFICE
14 W475-0590 BACK PANEL
15* W300-0108 ACCENT GLASS ( BLACK )
16* W385-0334 NAPOLEON® LOGO
17* W562-0046 ROPE GASKET, BACK PANEL
18 W475-0595 CONTROL PANEL
19* W385-0380 CONTROL PANEL LABEL
20 W660-0082 OUTDOOR ON/OFF SWITCH
21 TMCSS MOUNTING CABINET
22 TFSSO FRAME KIT
23* LK8 LIGHT KIT
24* W573-0002 HIGH TEMPERATURE SEALANT
25* W573-0007 HIGH TEMPERATURE SEALANT
26* W175-0270 CONVERSION KIT - NG TO LP
27* W175-0274 CONVERSION KIT - LP TO NG
Contact your dealer for questions concerning prices and
availability of replacement parts. Normally all parts can be
ordered through your authorized dealer or distributor.
When ordering replacement parts always give the following
information:
1. MODEL & SERIAL NUMBER OF APPLIANCE
2. INSTALLATION DATE OF APPLIANCE
3. PART NUMBER
4. DESCRIPTION OF PART
5. FINISH
FOR WARRANTY REPLACEMENT PARTS , A PHOTOCOPY OF THE ORIGINAL
INVOICE WILL BE REQUIRED TO HONOUR THE CLAIM
.
*
IDENTIFIES ITEMS WHICH ARE NOT ILLUSTRATED
.
FOR FURTHER
INFORMATION
,
CONTACT YOUR AUTHORIZED DEALER
.
REPLACEMENTS
REPLACEMENT PARTS ACCESSORIES
Failure to position the parts in accordance with these diagrams or
failure to use only parts specified approved with this appliance may
result in property damage or personal injury.
!
