10
W415-0689 / 06.25.08
2. Install the trim bracket supplied in your manual
baggie to the fi rebox using 3 screws.
DOOR
CHAIN
SLOT
FRAME
(REAR VIEW)
TRIM
BRACKET
1/4”
( APPROX.)
CONTROL
DOOR
1/4”
( APPROX.)
With the control door closed, affi x the logo to the front face of the control
door at the bottom left corner.

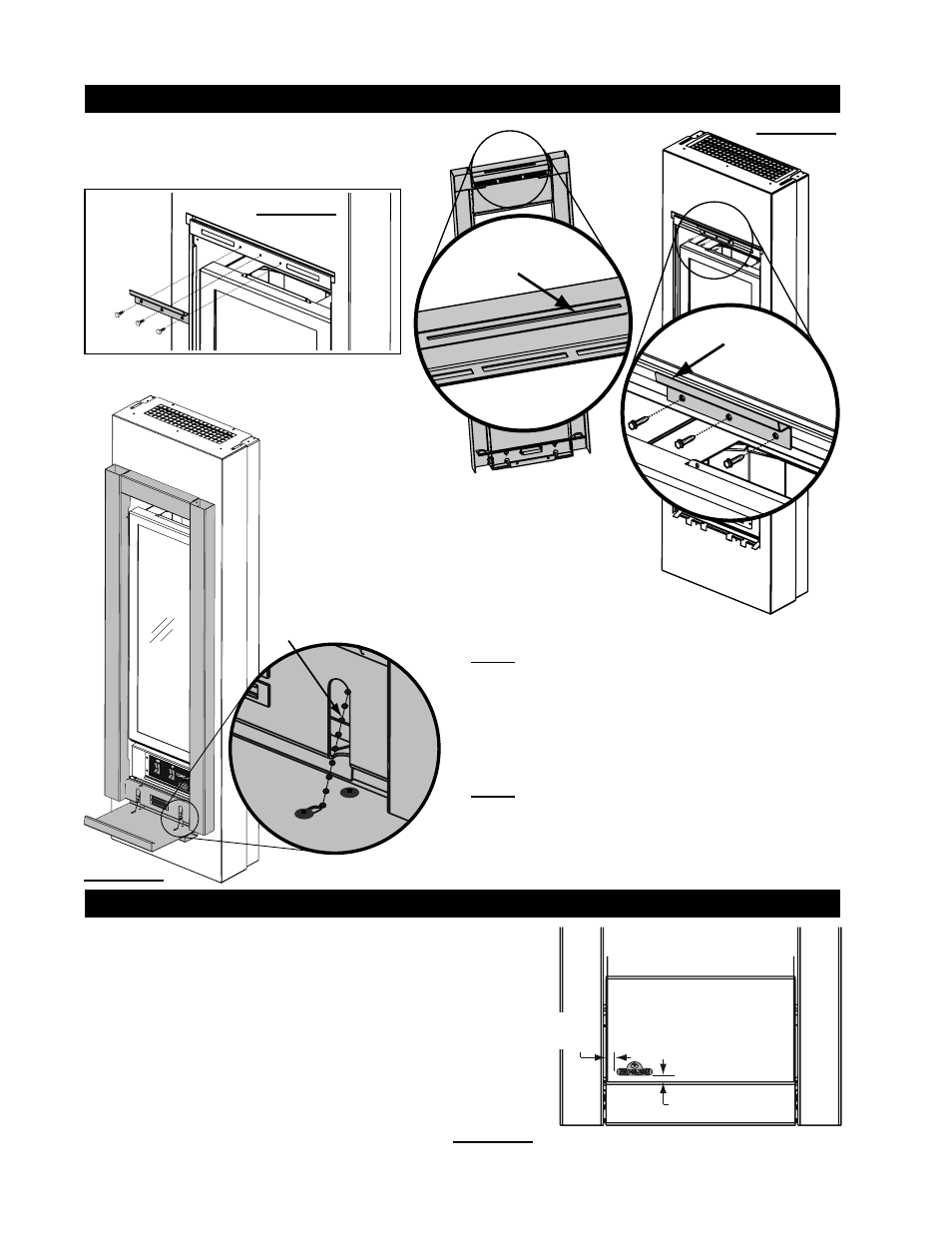

TFSSO FRAME INSTALLATION
LOGO PLACEMENT
FIGURE 13
FIGURE 14
FIGURE 15
NOTE: If the frame needs to be secured, use two screws
in the holes provided behind the control door.
Insert the door stop chain into the receiving slot in the control
door. Then insert the door chain into the receiving slot in
the frame so that when fully opened the control door has a
clearance of 1/8" to the mounting cabinet.
NOTE: In most cases a count of 15 balls on the chain
between receiving slots will be suffi cient.
1. Hang the frame onto the fi rebox by engaging the
top trim bracket into the slot in the top of the frame
and the bottom hooks of the frame into the slot in
the mounting cabinet.
FIGURE 12
TRIM
BRACKET
