Air Filter C61xx:
The C61xx Classic series Diesel Concrete saw is equipped with three (3)
stages of air filtration: the first is a Sy-Klone pre-filter; the next two is a
Donaldson Air Cleaner with a Primary (Outer) and secondary (Inner) air filters.
In addition the system is equipped with a Filter Service Indicator which shows
when the air system has a restriction.

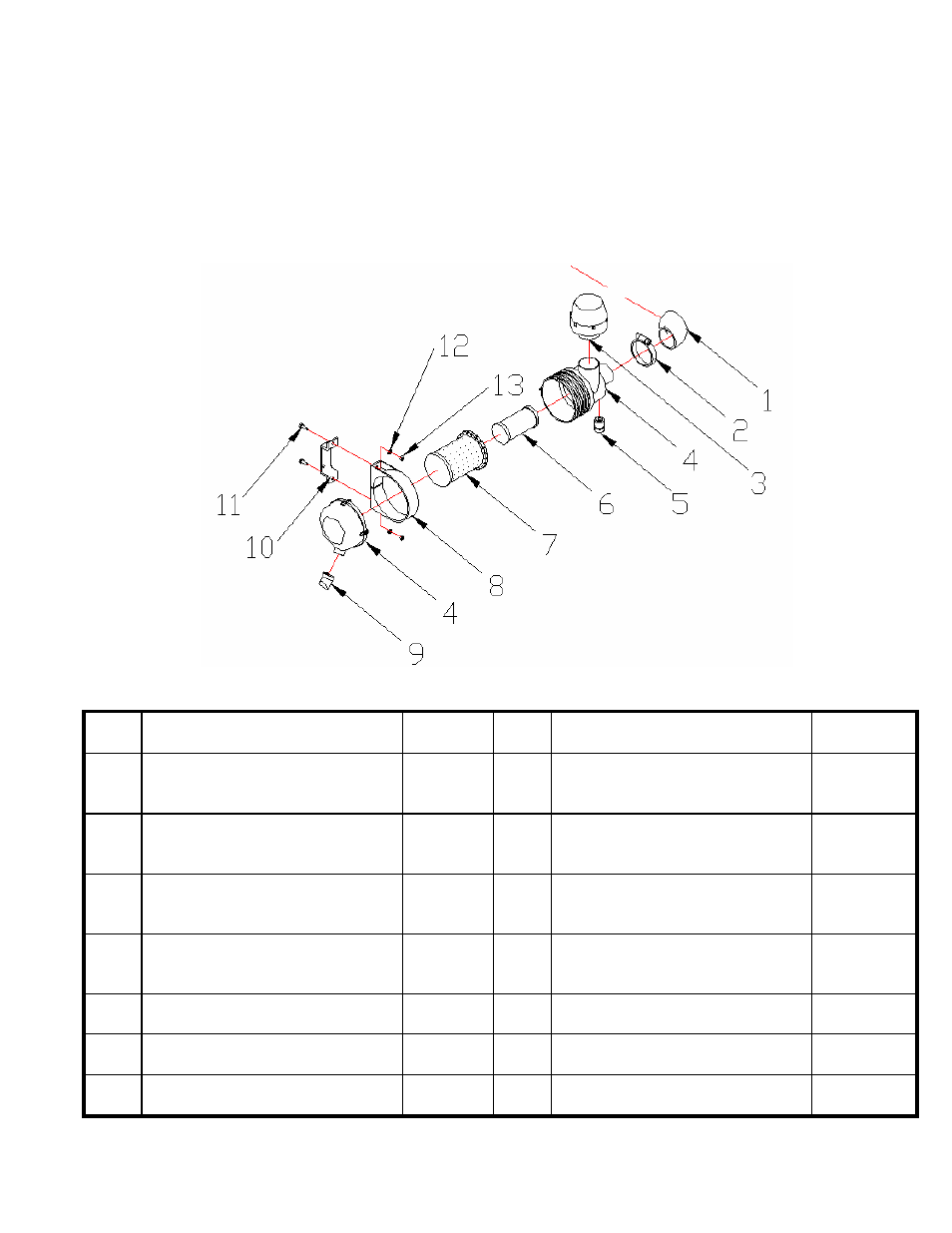

Air Cleaner Assembly C61xx Only
ITEM DESCRIPTION
PART
No. ITEM DESCRIPTION PART No.
-NA-
AIR CLEANER ASSY
Includes (3, 4, 5, 6, 7, 8, and 9)
X-10134
7
AIR FILTER OUTTER
PIRMARY
(Donaldson Part# P827653)
237277
1 ELBOW 90° 3" x 3" 90° 237402 8
BRACKET MOUNTING AIR
CLEANER
(Donaldson Part# P777731)
237278
2
BAND CLAMP 1-7/8TO5
SAE72
235139 9
DUST BOOT (VACUALTOR
VALVE)
(Donaldson Part# P158914)
237279
3
PRE-CLEANER SYKLONE
9000R
(Sy-Klone Part# 9000R)
237273
10 BRACKET AIR CLEANER
ASSY TO ENGINE
237394
4
AIR CLEANER BODY ONLY
(Donaldson Part# G070019)
237274
11
SCR 5/16-18 X 1-1/4 HEX HD
CAP
8041029
5
SERVICE INDUCATOR
(Donaldson Part# X002152)
237275
12 WASHER 5/16 SAE 8160002
6
AIR FILTER INNER SAFETY
(Donaldson Part# P829332)
237276
13 NUT 5/16-18 NYLOCK 8172008
