27. Note: Some of the parts used in the following
miscellaneous assembly are located in the parts
bag labeled ÒSeat Assembly.Ó
Slide the four Tinnerman Clips (38) down over the
slots in the bracket on the Stabilizer (5).
30. Make sure that all parts have been properly tightened. The use of the remaining parts will be explained in
ADJUSTMENT, beginning on page 17 of this manual.
Before using the training system, pull each cable a few times to be sure that the cables move smoothly over
the pulleys. If one of the cables does not move smoothly, find and correct the problem. IMPORTANT: If the
cables are not properly installed, they may be damaged when heavy weight is used. If there is any
slack in the cables, you will need to remove the slack by tightening the cables. See TROUBLE-
SHOOTING AND MAINTENANCE on page 19.

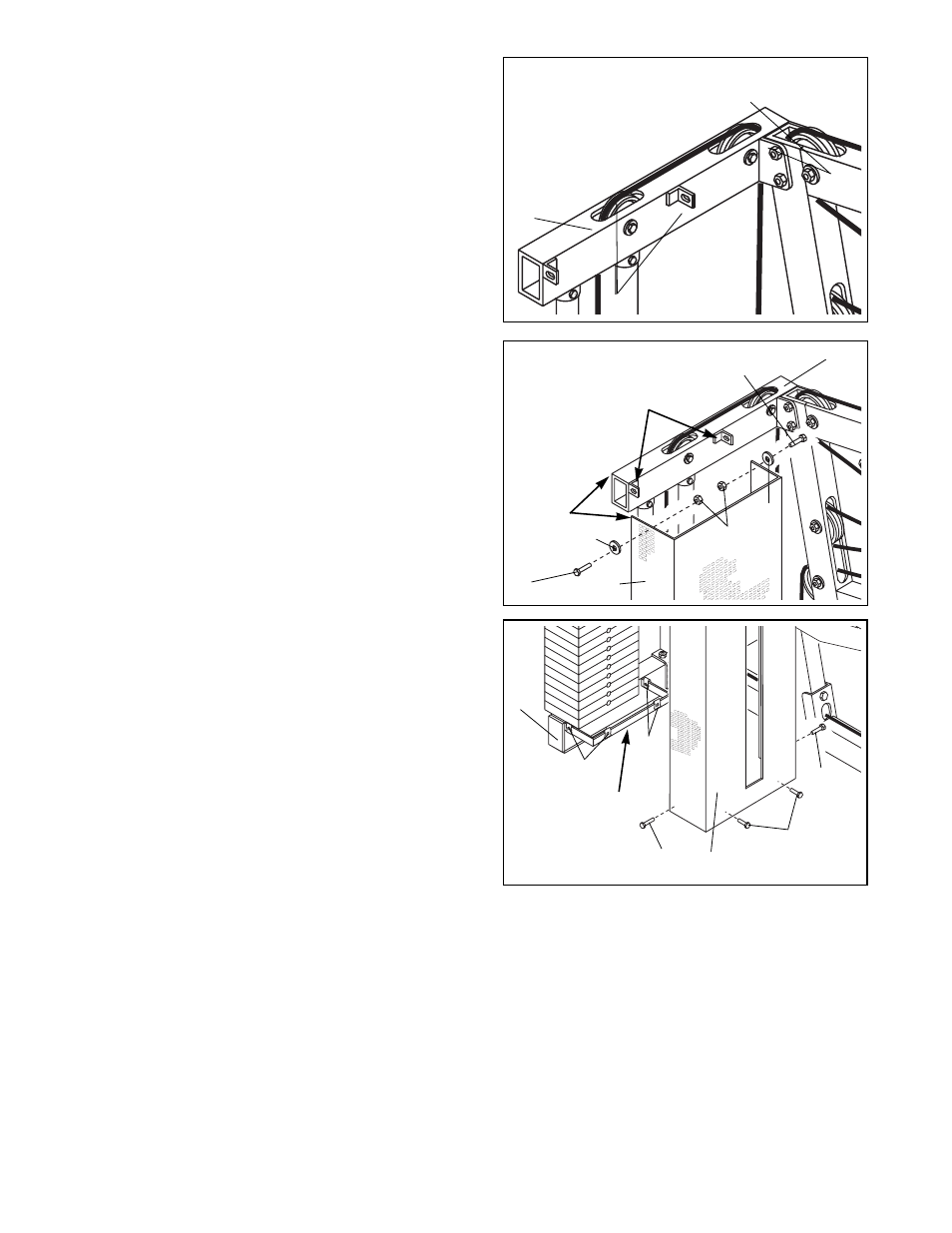

28. Attach the upper end of the Shroud (56) to the two
ÒLÓ-brackets on the Top Frame (1) with two 1/4Ó x 3/4Ó
Bolts (17), two 1/4Ó Flat Washers (71) and two 1/4Ó
Nylon Locknuts (25).
Note: Line up the indicated corner of the Shroud
(56) with the indicated corner of the Top Frame
(1). The Bolts (17) go through the square holes in
the Shroud. Do not tighten the Bolts yet.
28
71
71
ÒLÓ-Bracket
1
17
25
17 56
29. Attach the lower end of the Shroud (56) to the brack-
et on the Stabilizer (5) with four #8 x 3/4Ó Screws
(32). The Screws go through the square holes in the
Shroud and into the Tinnerman Clips (38).
Note: For the sake of clarity, this step shows the
Shroud as if step 27 had not yet been performed.
29
32
32 56
32
38
38
5
Bracket
Line Up
Corners
