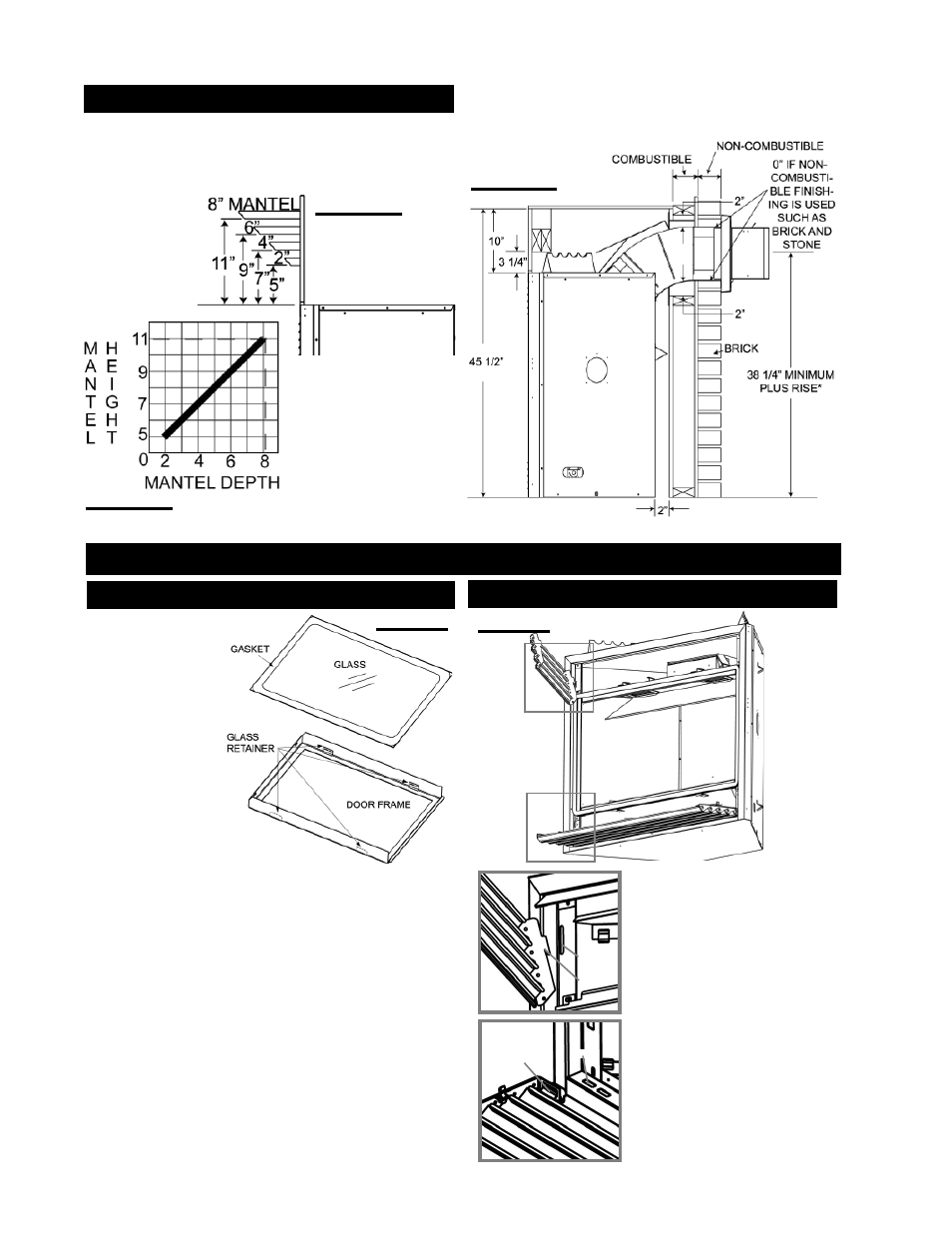

MINIMUM MANTEL AND ENCLOSURE CLEARANCES
FIGURES 37a
FIGURES 37b
Combustible mantel clearance can vary according to the mantel
depth. FIGURE 36. Use the graph to help evaluate the clearance
needed. Curtains, above the fi replace, must not be positioned lower
than the 5" distance required for the 2" combustible mantel. These
same requirements apply to any combustibles protruding on either
side of the fi replace.
B
A
FIGURE 39
UPPER LOUVRES
Insert the louvre tabs into the slots
located at the top left and right cor-
ners of the unit.
SLOT
TAB
A
LOWER LOUVRES
Insert the hinge clips into the slots
located at the bottom left and right
corners of the unit.
To remove the louvres, pull the back
tabs of the clips forward, while push-
ing the louvre assembly back. Lift
the clip.
B
HINGE
CLIP
SLOT
L42 LOUVRE INSTALLATION
FINISHING
The fi replace requires a minimum enclosure height of 45 1/2". For
temperature requirements, the enclosure space around and above
the fi replace must be left unobstructed. FIGURE 37.
* See venting section
FIGURES 37c
1. Place the door frame
face down careful not to
scratch the paint.
2. Center the gasketed
glass inside the door
frame with the thick side
of the gasket facing up.
3. Bend the glass re-
tainers located along the
edge of the door frame
over the gasket hold-
ing the glass in place.
Careful not to break the
glass.
GLASS/DOOR REPLACEMENT
FIGURE 38
