19
W415-0381 / H / 12.07.07

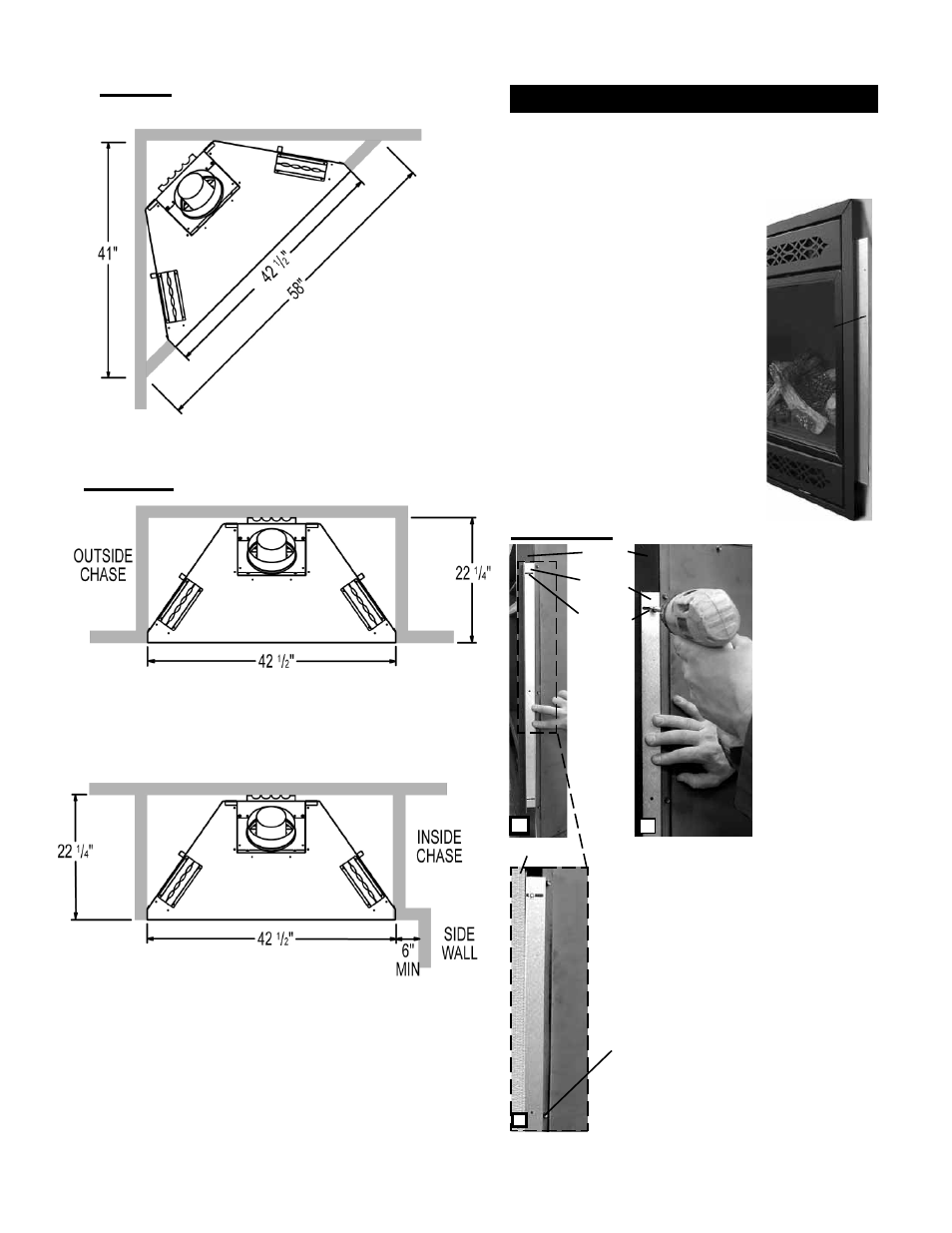

FIGURE 34
FIGURES 36a-c
TOP SLOT
FINISHING
MATERIAL
CORNER
POST
NAILING
TAB
A B
C
CENTRE
HOLE
NAILING
TAB
1) Attach the nailing tabs to the corner posts using the 2 sheet metal
screws supplied. Secure through the centre of the top and bottom
slots in the nailing tab and then through the existing holes in the
corner posts.
If there are no existing holes, follow these instructions:
Position the nailing tab so that the front face
is offset with the front edge of the corner post
(approx. ½"). Centre the nailing tab vertically
on the corner post.
Figure 36 a.
Drill through the centre of the top and bottom
slots in the nailing tab. Secure using the two
sheet metal screws supplied. This allows the
nailing tab to slide back and forth for desired
framing. Figure 36b.
2) To determine the fi nal location of the nailing
tab you must fi rst determine the thickness of
your fi nishing material (i.e. drywall). This will
determine the dimension from the front edge of
the corner post to the nailing tab. Once the nail-
ing tab is in the desired location, drill through
the centre hole of the nailing tab. Secure with
a sheet metal screw*. Figure 36c.
* Additional set screws may be installed.
NAILING TAB INSTALLATION
FIGURE 35a-c
