Terminal Operation
Chapter 2 - Terminal Operation
2.1 - Initial Terminal Setup
When you power on the terminal for the first time, the Setup Wizard will be used for
initial setup of the terminal’s properties. Following are the dialog boxes of the setup
wizard. This sequence is also invoked when the terminal is reset to initial conditions.

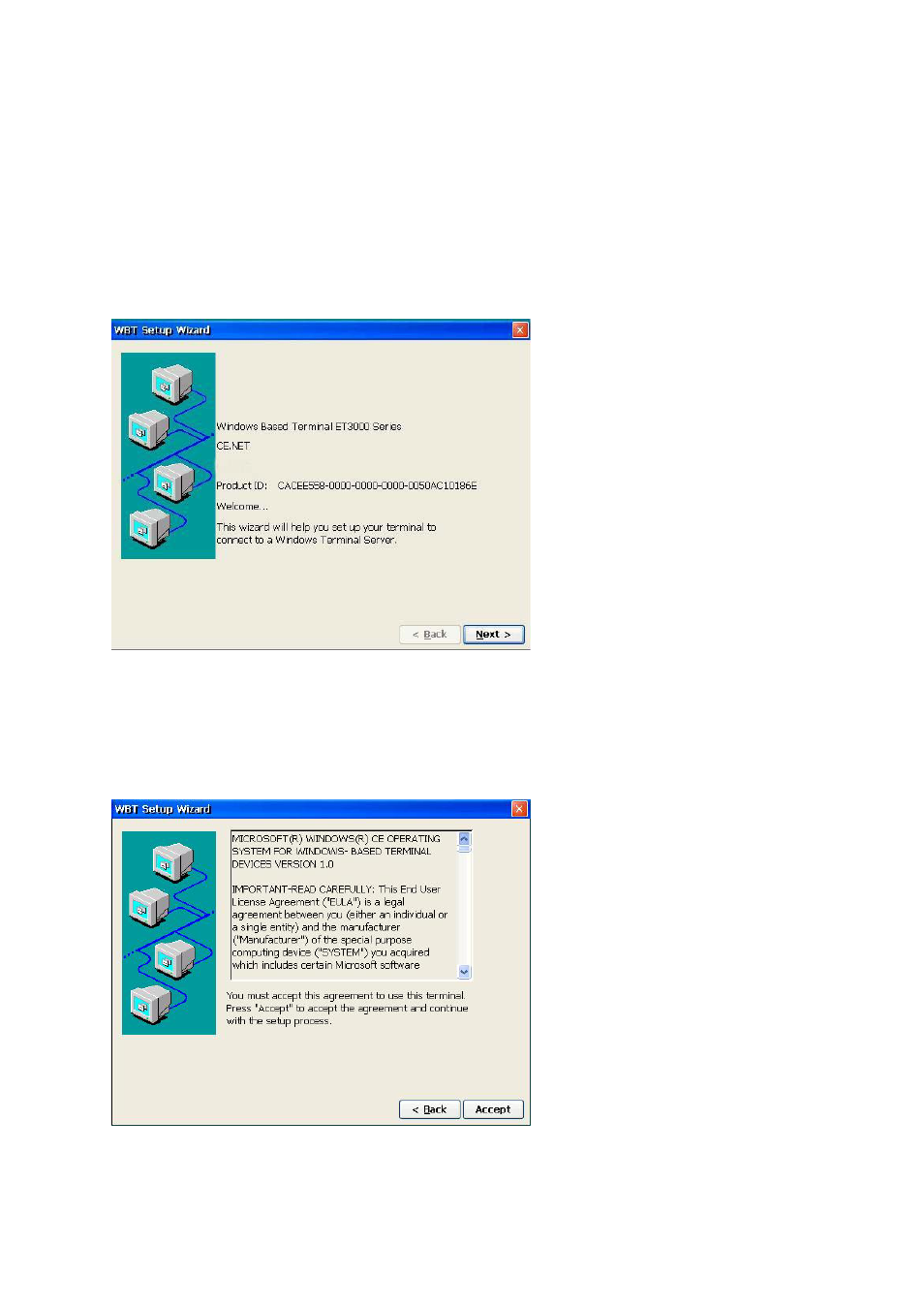

Welcome Dialog Box
This dialog box provides product information. A 15-second countdown displays at the
top. Click Next to continue, or wait for the countdown to end. Press Esc to bypass
the following screens to use default settings (Network DHCP enabled, Display
resolution of 640x480 @ 60Hz, no security, etc.) and proceed to the Terminal
Manager screen (see section 2.2).
EULA (End User License Agreement) Dialog Box
Please read the license agreement carefully. Click Accept to continue.
